005 beam facade sp 001
Beam Donaucity
Austria
  • Residential
  • Built

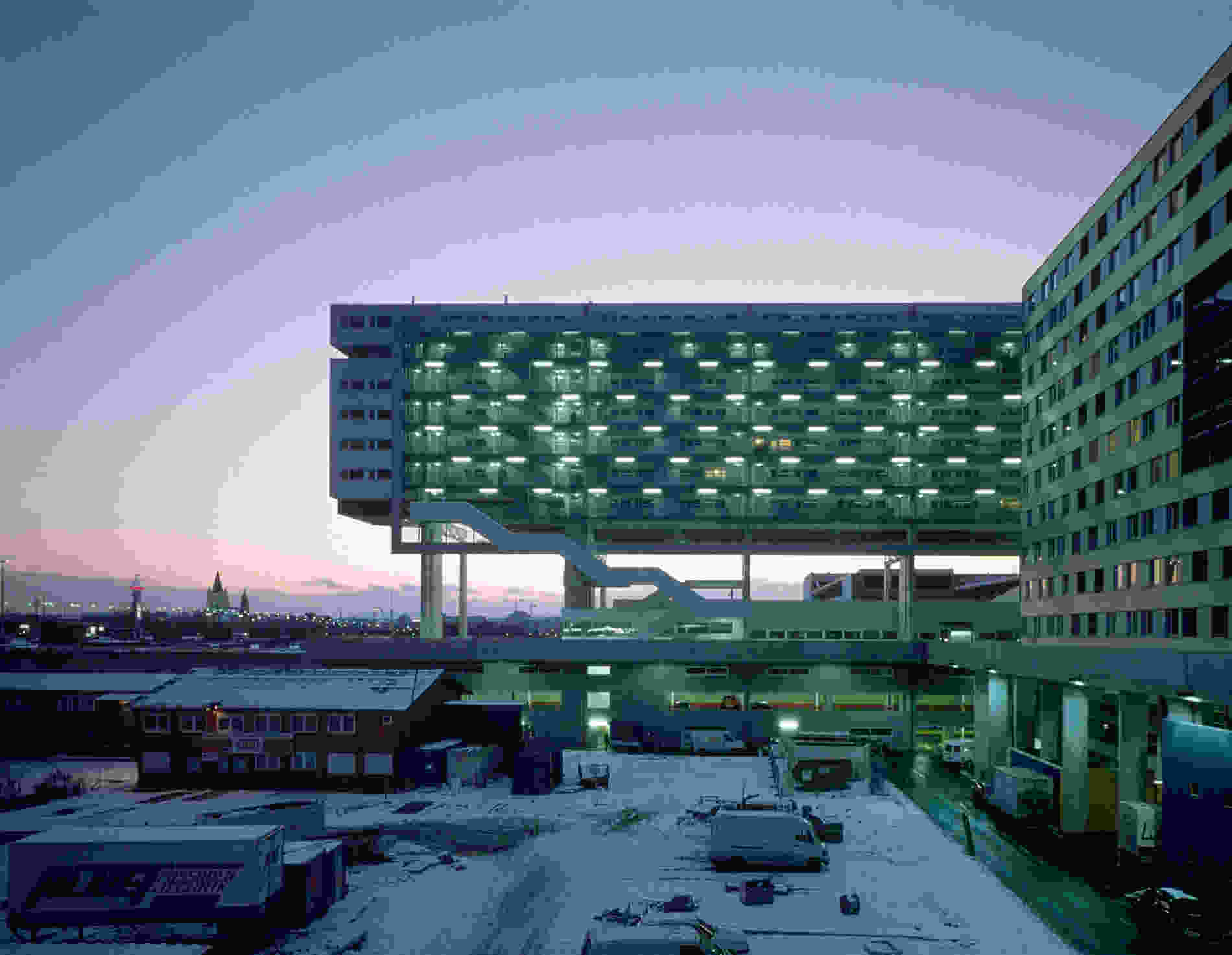

The laconic ‘horizontal skyscraper’ shape and the residential ‘Beam’ building’s exposed position indicate its integration into a once greater general concept as well as its individualistic design. The 180m long lying block is aligned with the banks of the ‘Neue Donau’ river. It is supported by pillars which raise the seven-storey building over the plateau of the Danube plate like a grandstand.

The river-facing apartments offer their inhabitants a spectacular view of Vienna which reaches from the ‘Vergnügungsmeile’ right in front of the balcony windows to the inner city’s skyline. The heights of the pillars are scaled from the outside towards the middle with ten, seven and four metres, thus creating a series of free spaces of varied dimensions underneath the building.

This open architrave area establishes a transitory urban zone which relates visually to the residential buildings behind and erodes the ‘stronghold’ of the private space through offshoots of the surrounding public space.

The 190 residential units run through the whole depth of the building. They are partly designed as duplex apartments whereby each unit is provided with a paned balcony as well as a bright room which is also part of the paned rear side. This project is characterised by an open, urban, integrated residential living space with varied degrees of privacy. Its design answers to the urban location and contemporary lifestyle, by naturally including the site’s features and potential.

Address
Leonard-Bernstein-Straße 4-6
A-1220 Vienna

Beam [B] +
Parzelle 13 [13]

Floor area [B/13]
16.714 m²/3.728 m²

Gross floor area
[B/13]
20.100 m²/4.390 m²

Site area
[B/13]
5.592 m²/3.262 m²

Built-up area
[B/13]
3.065 m²/1.748 m²

[B]
190 Apartments
3 Offices
1 Kindergarten

[13]
37 Apartments
1 Shop

Levels
[B] 9

Project team
Dieter Blaich, Armin Dold, Robert Fritz, Rita Reisinger, Susanne Stadlbauer, Christopher Schweiger

Photographer
Margherita Spiluttini
Vienna

CONSULTANTS
Structural Engineering
Fiolic & Partner

HVAC
Eipeldauer + Partner

Building Physiks
Hans J. Dworak

Facade
Pagitz Metallbau GmbH








Beam
Donaucity
