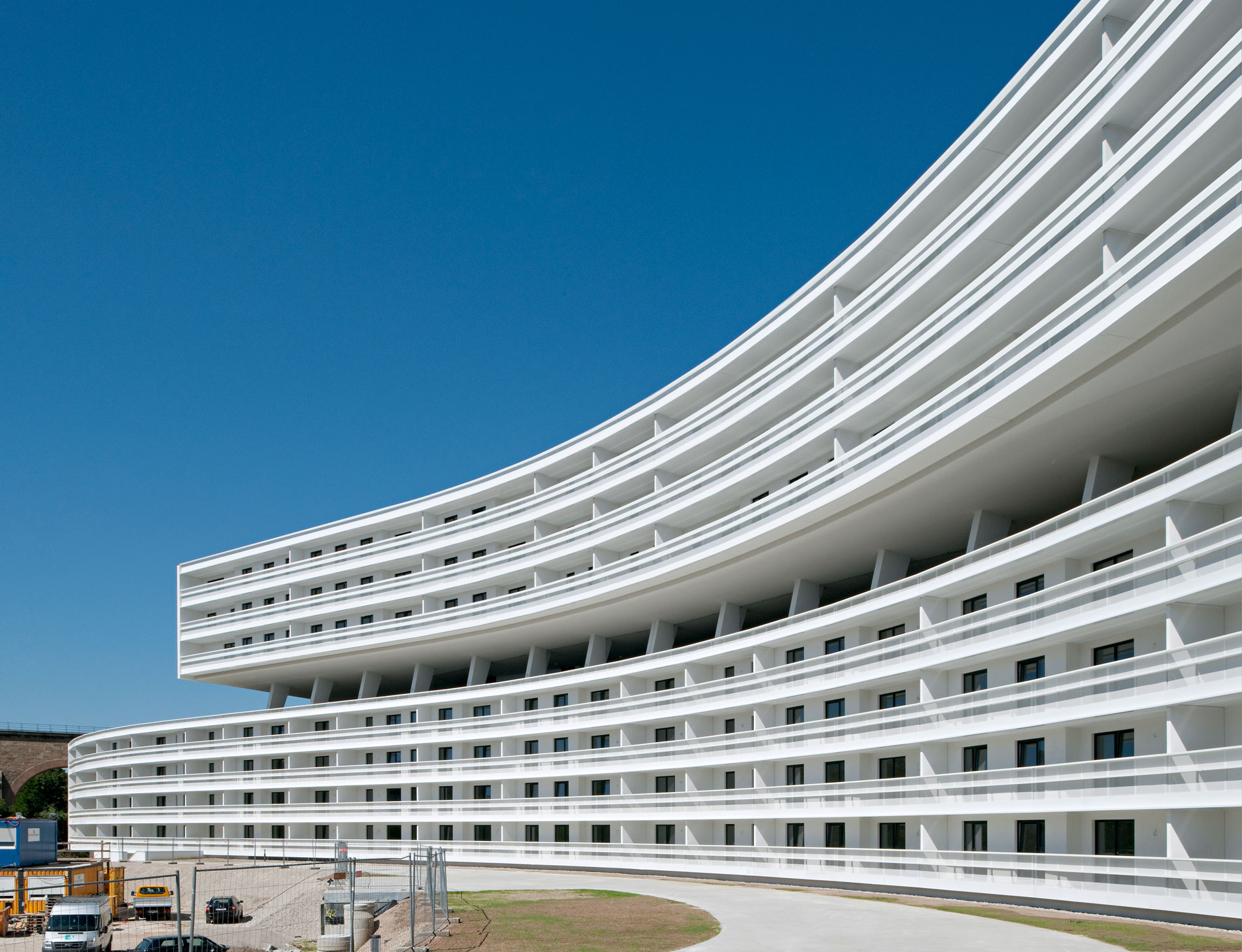

153 dm Brauerei Liesing Herta Hurnaus 004 facade
Brauerei Liesing
Austria
  • Residential
  • Urban Design
  • Built

The special attraction of the area formerly belonging to the Liesing brewery is based on the history of the site and its topography, as well as on the statement of the existing urbanistic concept. This led to the idea of designing and building a holistic structure rather than a fragmentation into small parts. The flowing motion of the already existing urbanistic “snake” dictates the formal approach and simultaneously affects the experience of living at this site. Due to the existing formal and urbanistic guidelines, the focus of the design was set on structural, technical and formative details. A broadly chosen construction grid of an average 6.3m ensures the flowing integration of this motion without limitation in the building’s footprints.

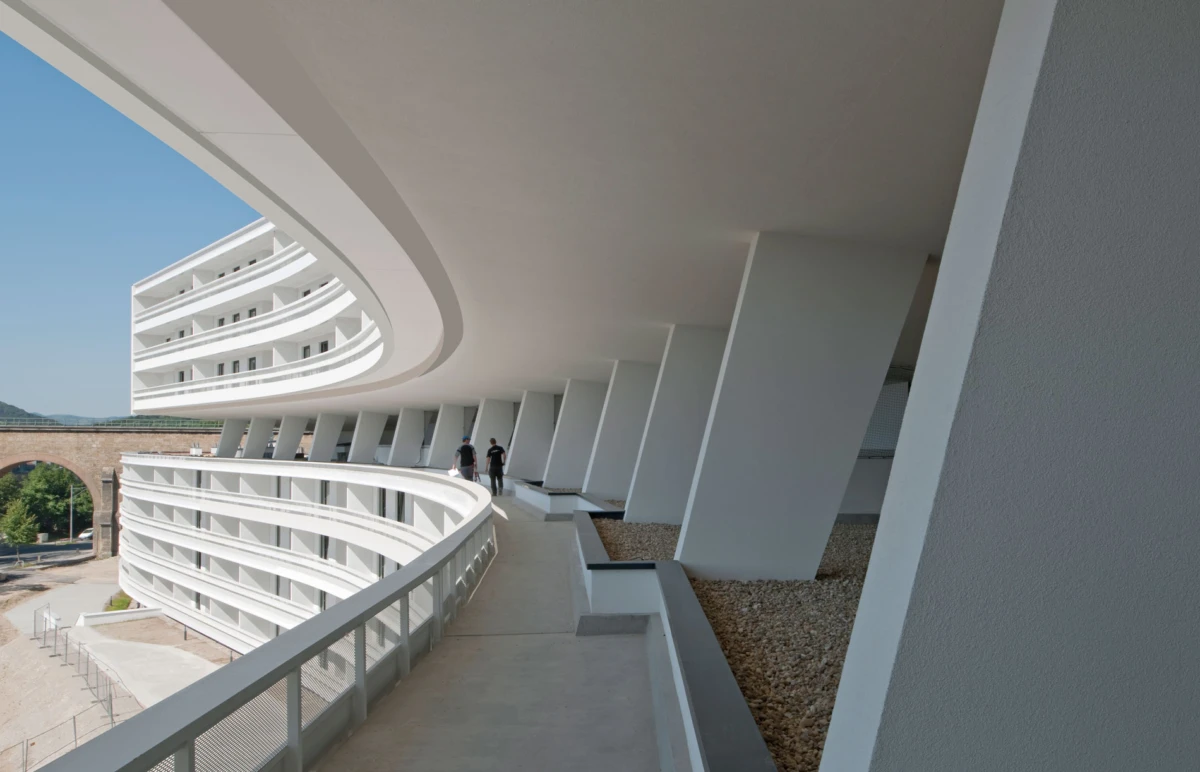

The living areas open up towards the south, revealing views of the Wienerwald. Generous, strategically placed loggias and terrace areas allow open living towards the sun. Introverted rooms and zones of rest are positioned on the hill side, towards the Stadtwald. Two opposite positions result out this situation, which is singular for the urban housing: while a linear, lacy geometry of the south facade takes up the play with light and shadow, the southern façade consists of a compact front with a graphically positioned window structure. The geometrical design of the open area also takes up the interrelation between north and south: while the upper levels of the building rest on orthogonal pillars, the higher level spaces seem to visually extend toward south due to dynamic geometry of the tapered supports.

Address
Breitenfurter Straße 372-380
1230 Vienna
Austria

Property developer
competition
2006 (1st prize)

Start of planning
2006

Start of construction
01/2008

Completion
2009

Total floor area
9.997 m²

Residential floor area
9.210 m²

Commercial floor area
787 m²

Gross floor area
18.752 m²

Levels
11
(incl. 2 basements and 1 open air floor)

Number of flats
102

Office units
24

Project manager
Christopher Schweiger

Project team
Anke Goll, Bernd Heger, Daniela Hensler, Burkhard Floores

Client / Awarding body
ÖVW - Österreichisches Volkswohnungswerk Gemeinnützige GesmbH

CONSULTANTS
Execution planning
Krainer und Partner Architekten

Structural engineering
Ingenieurbüro Dipl.Ing. Ernst Kuttner

HVACR
Planungsbüro Drabeck & Co. GmbH

Electrics
Braun GmbH

General planning
Kallco Bauträger GmbH

Photographer
Hertha Hurnaus, Vienna

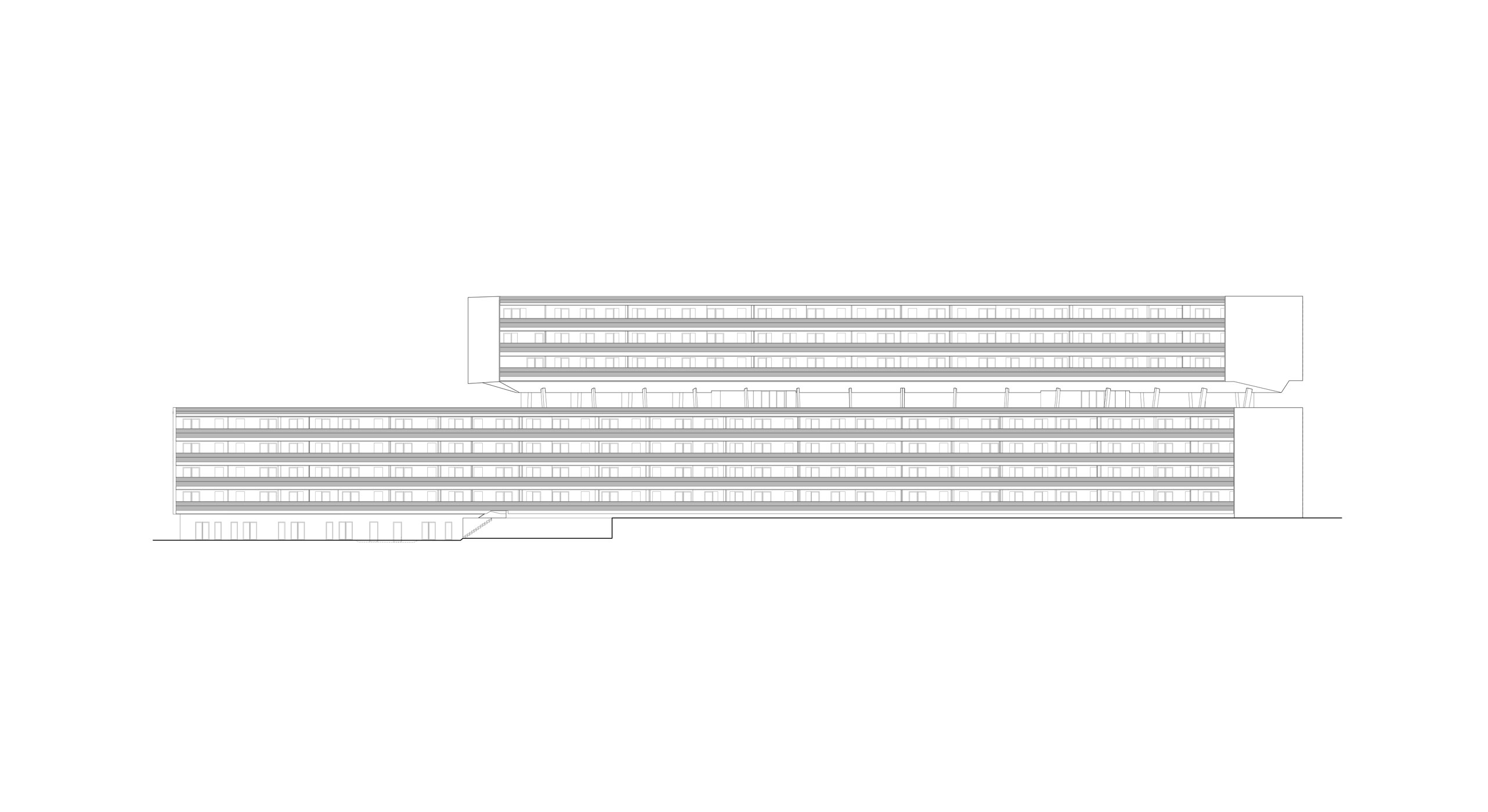

153 dm Brauerei Liesing plan 01 elevation south

elevation south

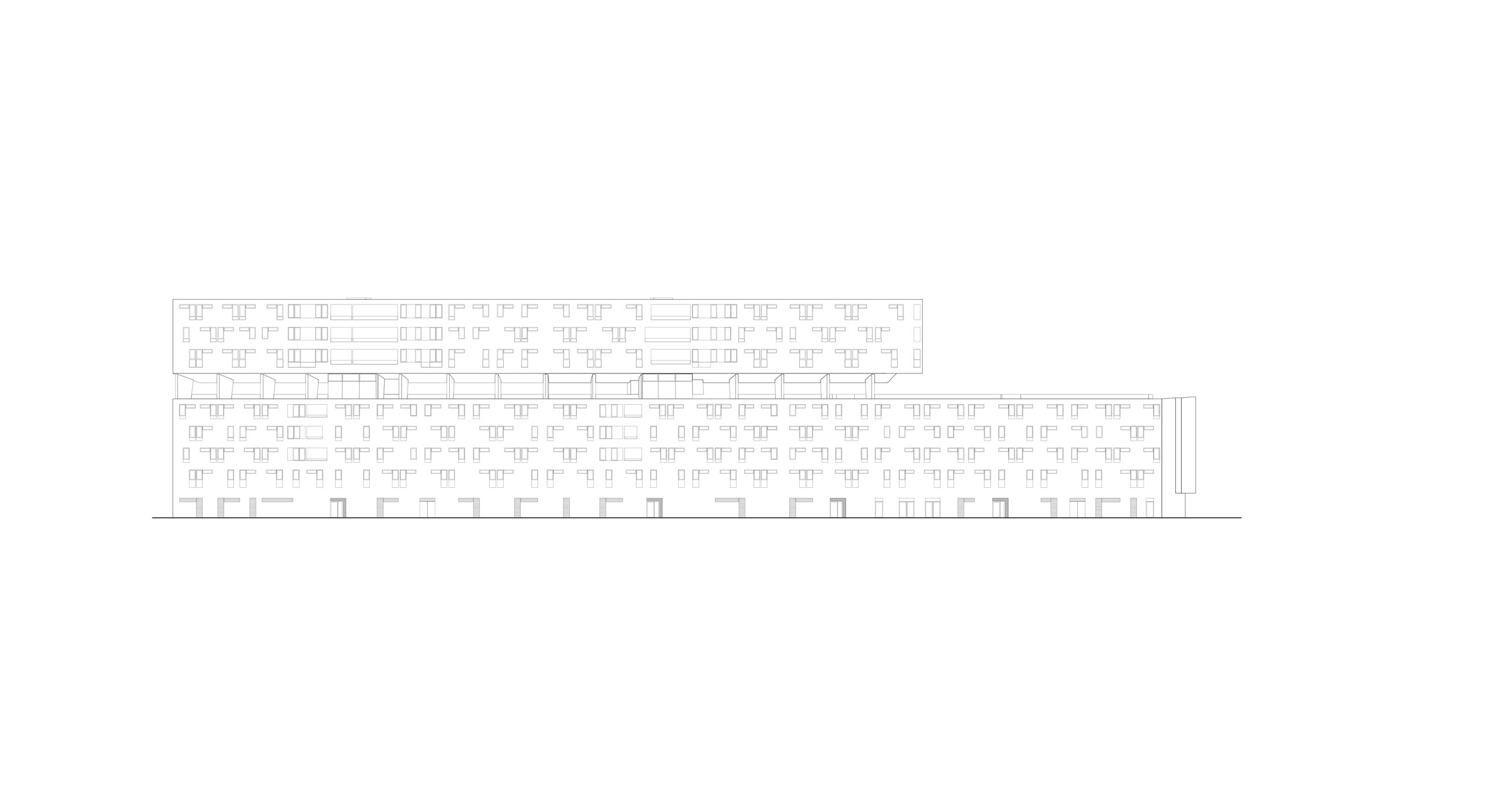

153 dm Brauerei Liesing plan 01 elevation north

elevation north

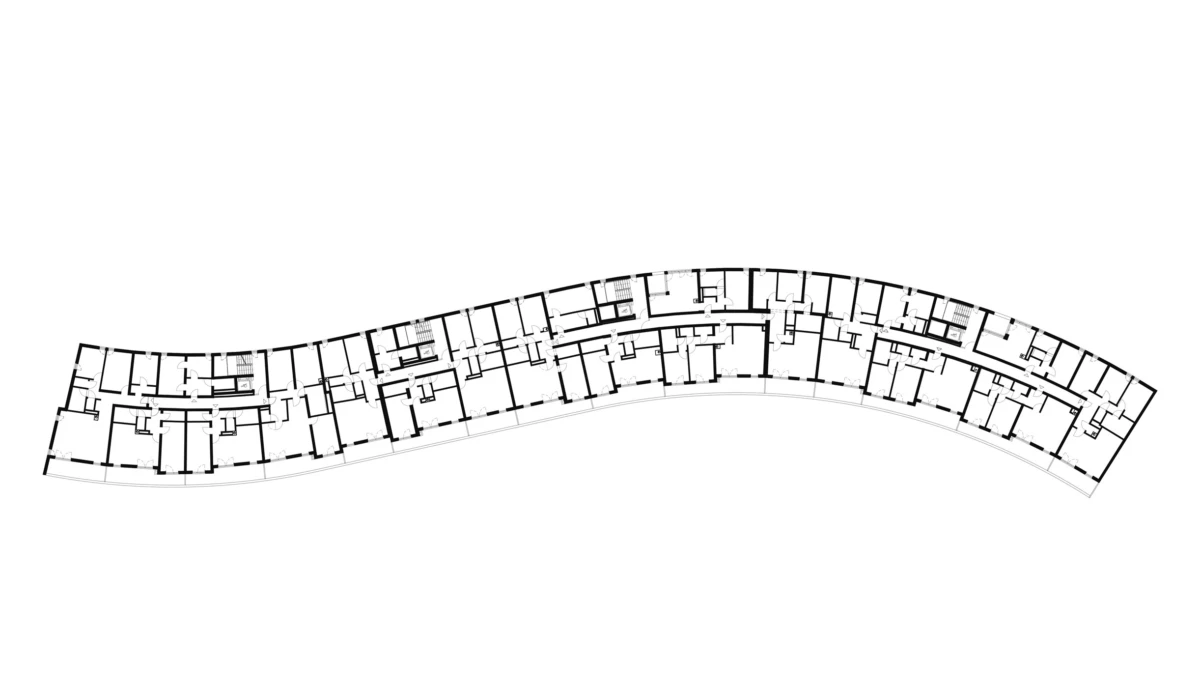

floor plan level 02

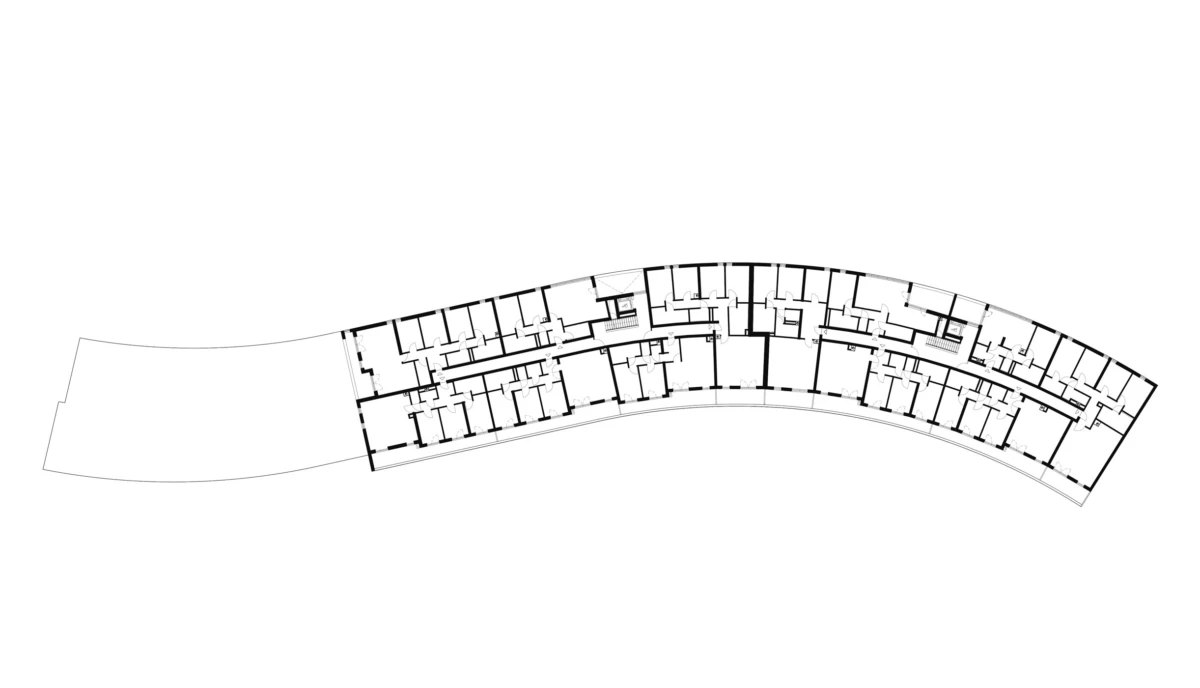

floor plan level 05

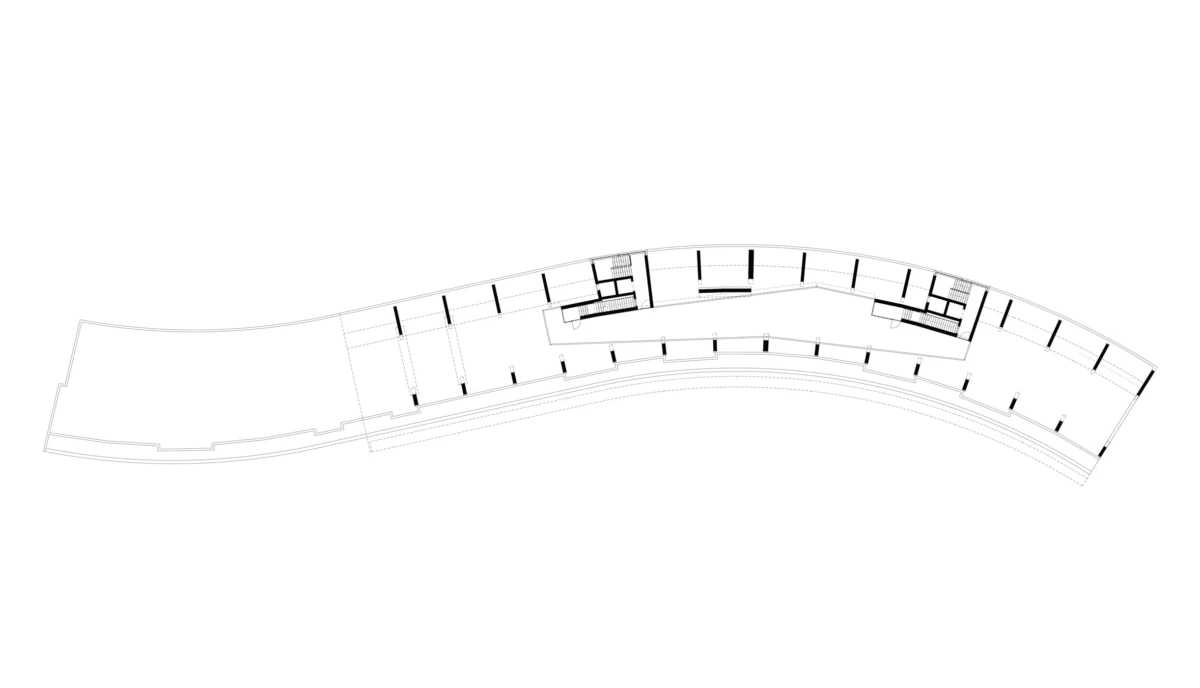

floor plan level intermediate floor

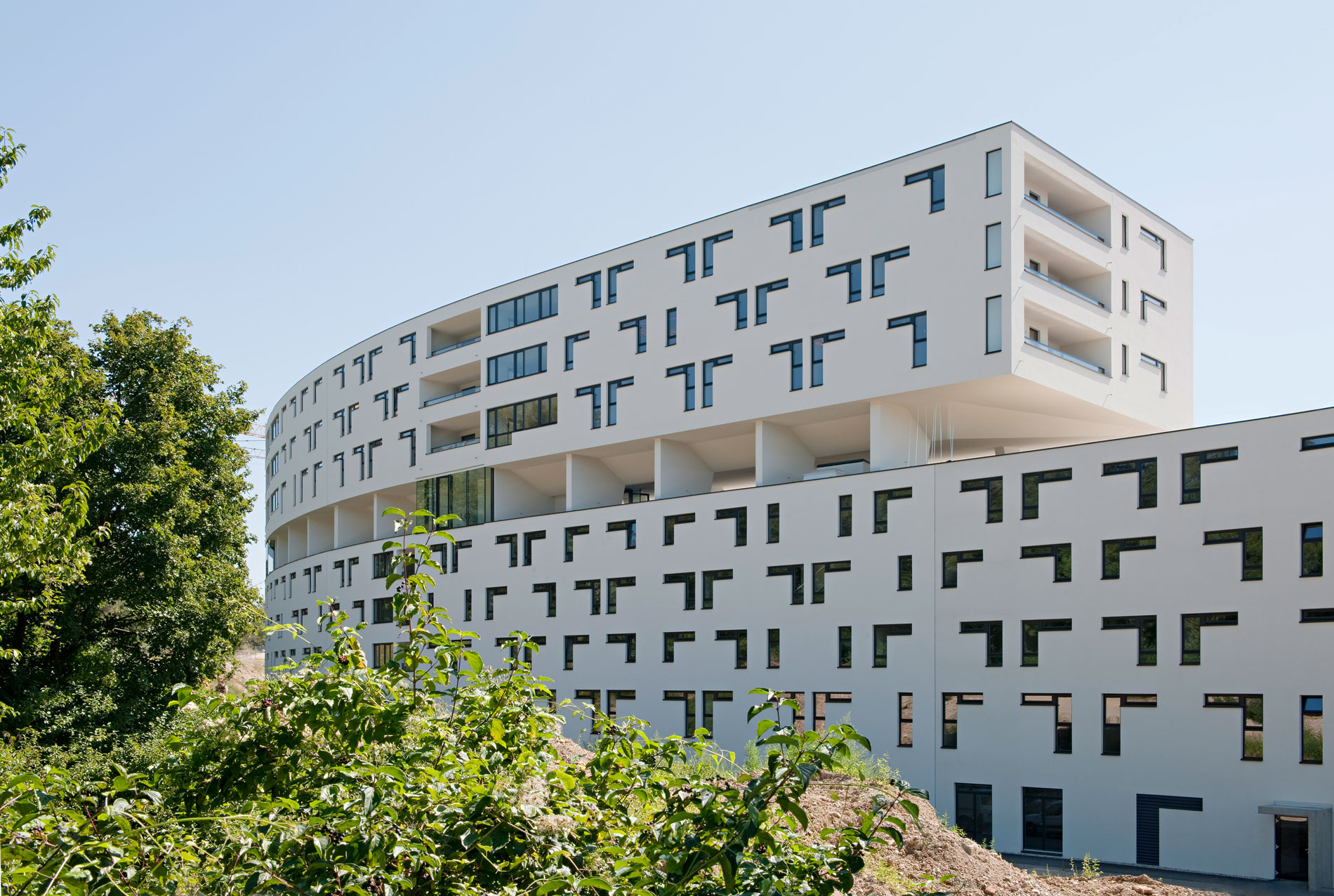

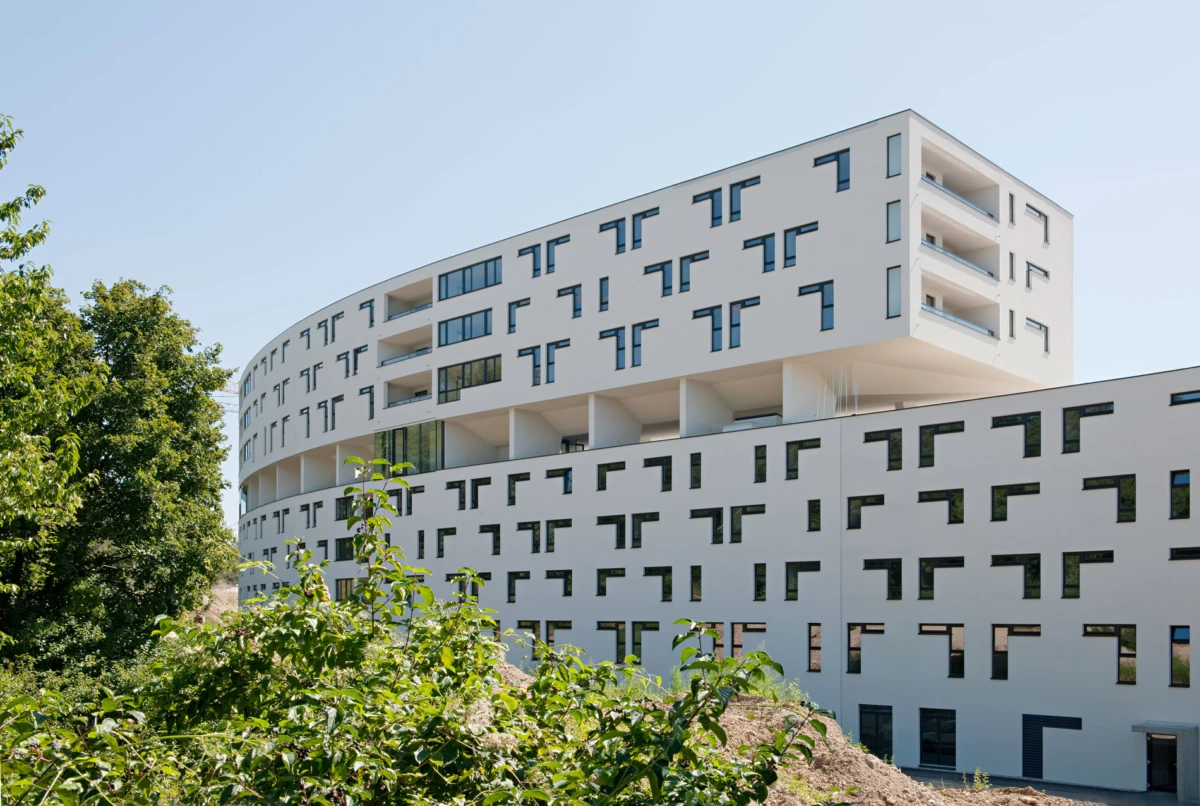

153 dm Brauerei Liesing Herta Hurnaus 005 facade

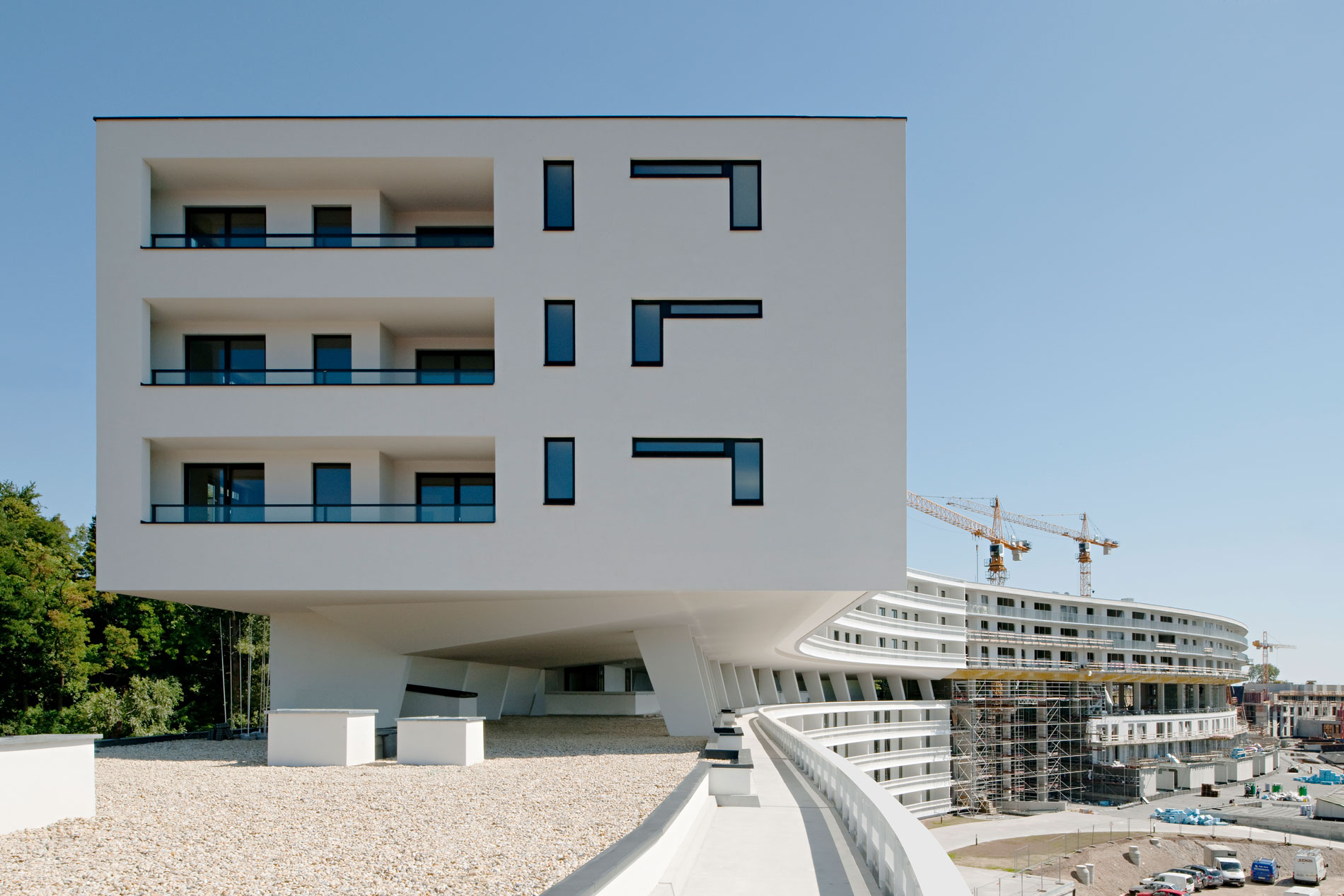

153 dm Brauerei Liesing Herta Hurnaus 003
