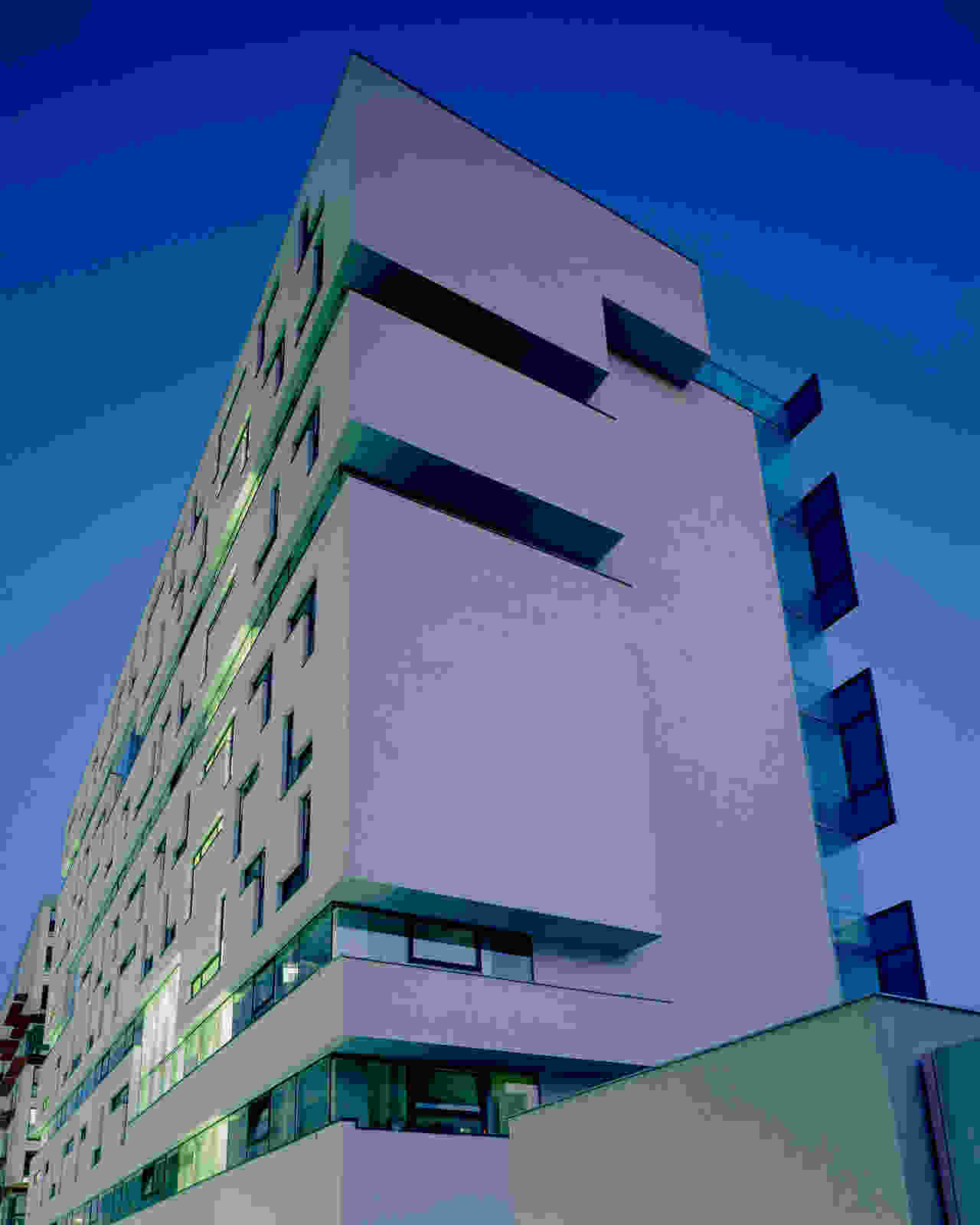

038 city lofts wienerberg Herta Hurnaus 021 exterior
City Lofts Wienerberg
Austria
  • Residential
  • Built

The project forms one component of a large new urban development on the area of Wienerberg, Vienna. The scheme for a site on the west side of this area incorporates living and working spaces within an eleven-storey building on a footprint measuring 44 by 22 metres.

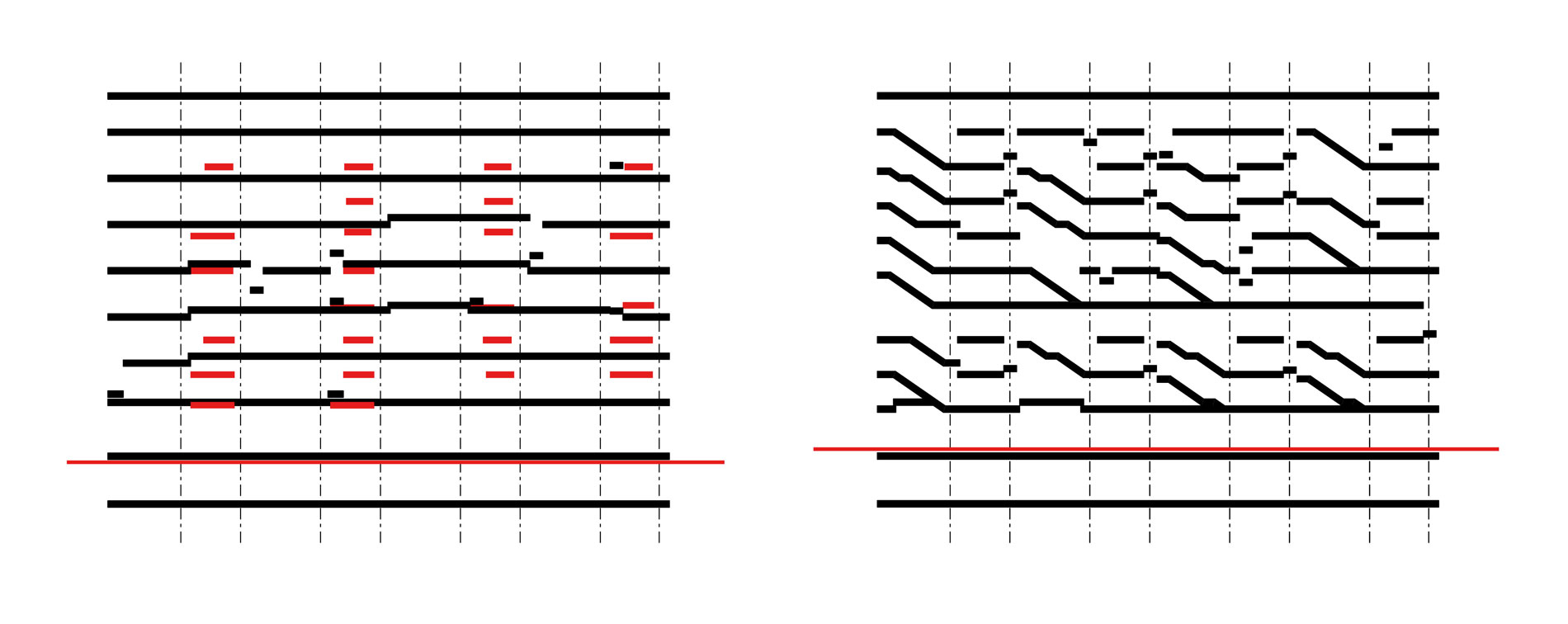

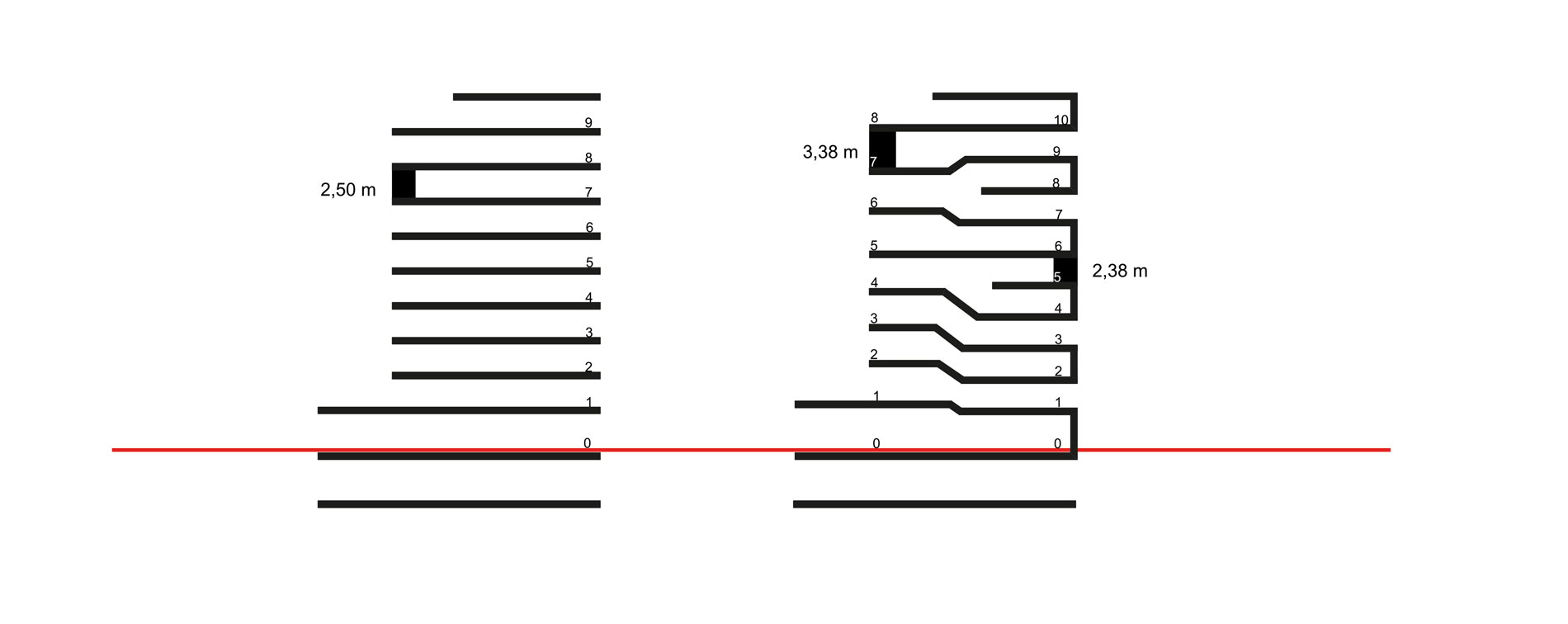

In place of the simple stacking of identical layers, the design uses interlocking floors to create spaces of differing heights. The result is an interlaced wickerwork of levels so complex that eight cross sections are required to explain the structure.

Despite a nominal room height of 2.5 metres, this configuration allows lofty living areas of 3.3 metres to the south as well as lower zones of 2.3 metres to the north, designed for sleep and recreation. The differentiated floor heights are of primary importance for the feasibility of the project, for this innovative design results in an additional storey on the north side of the building.

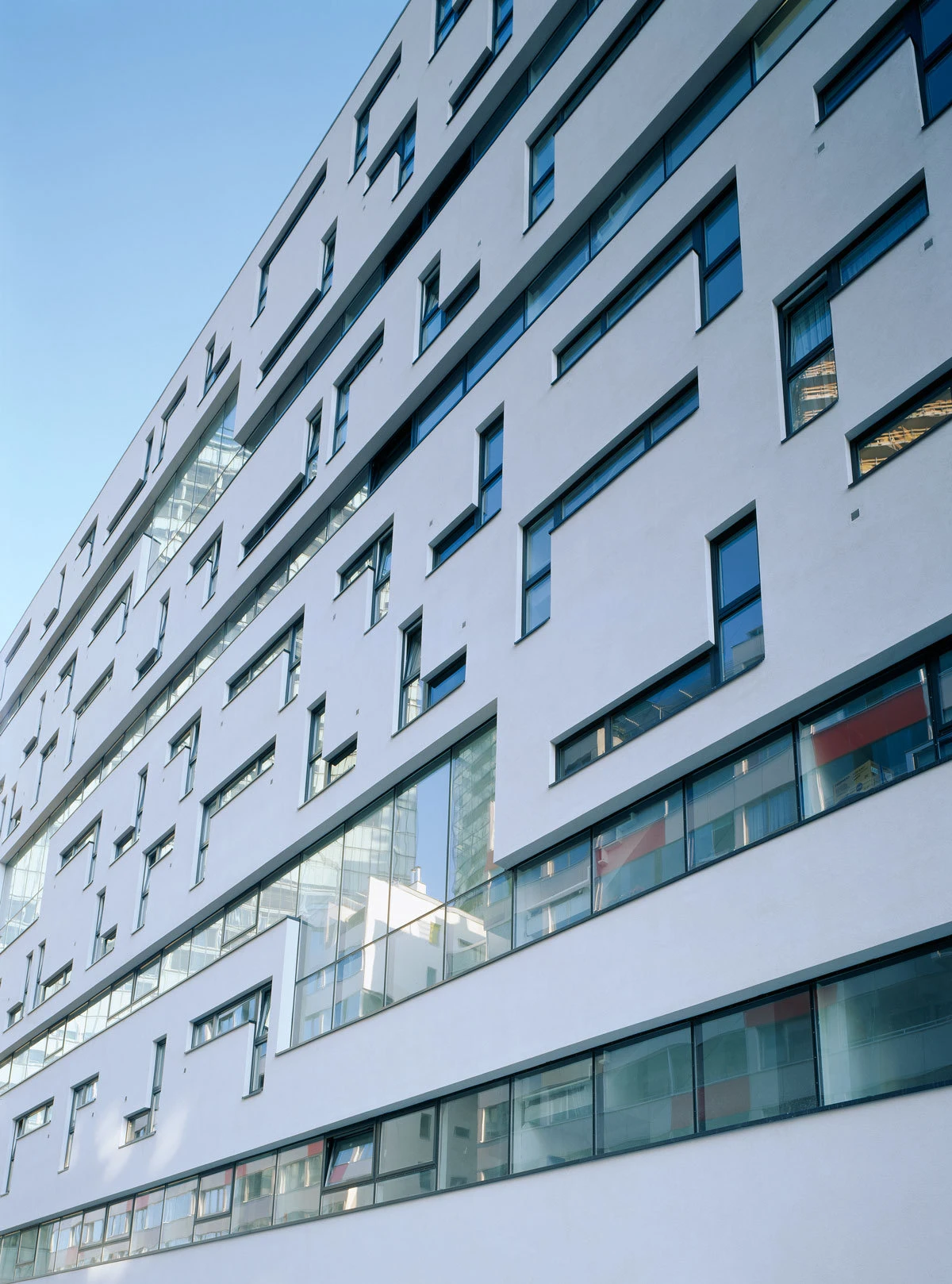

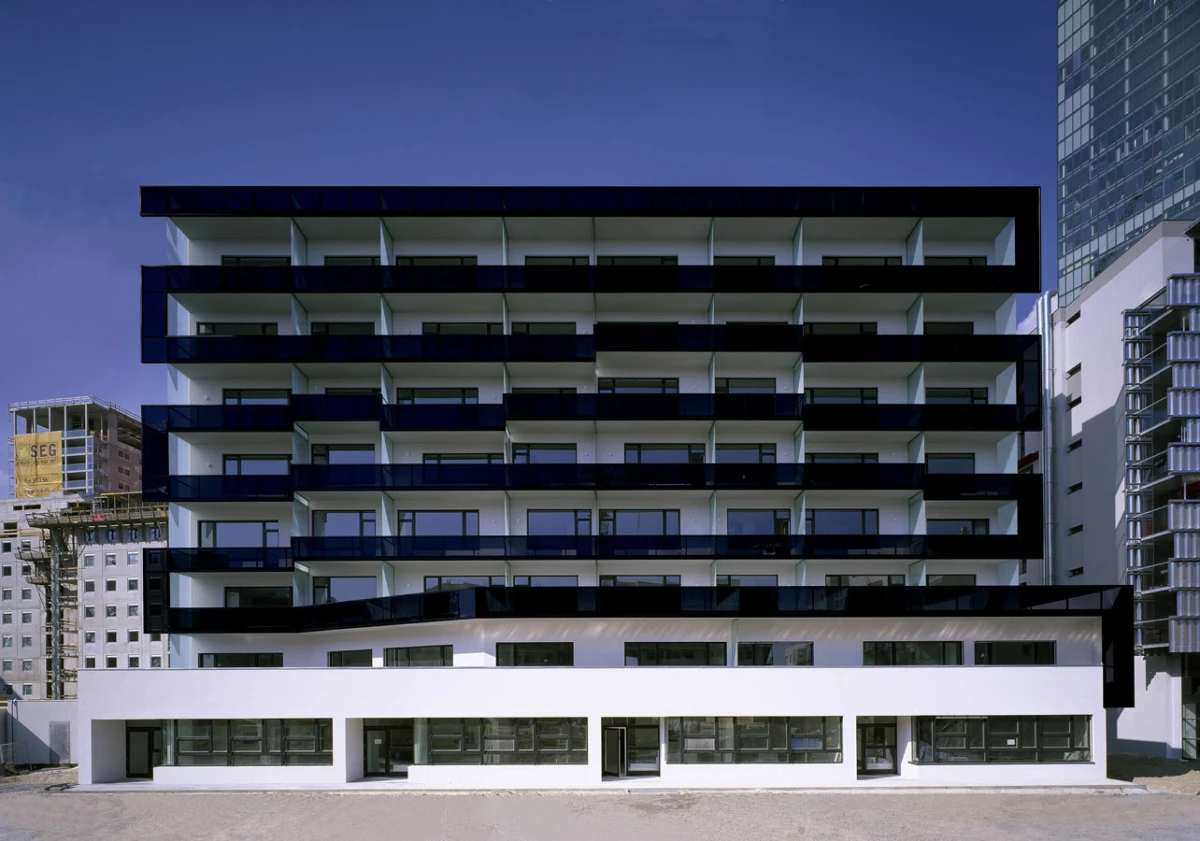

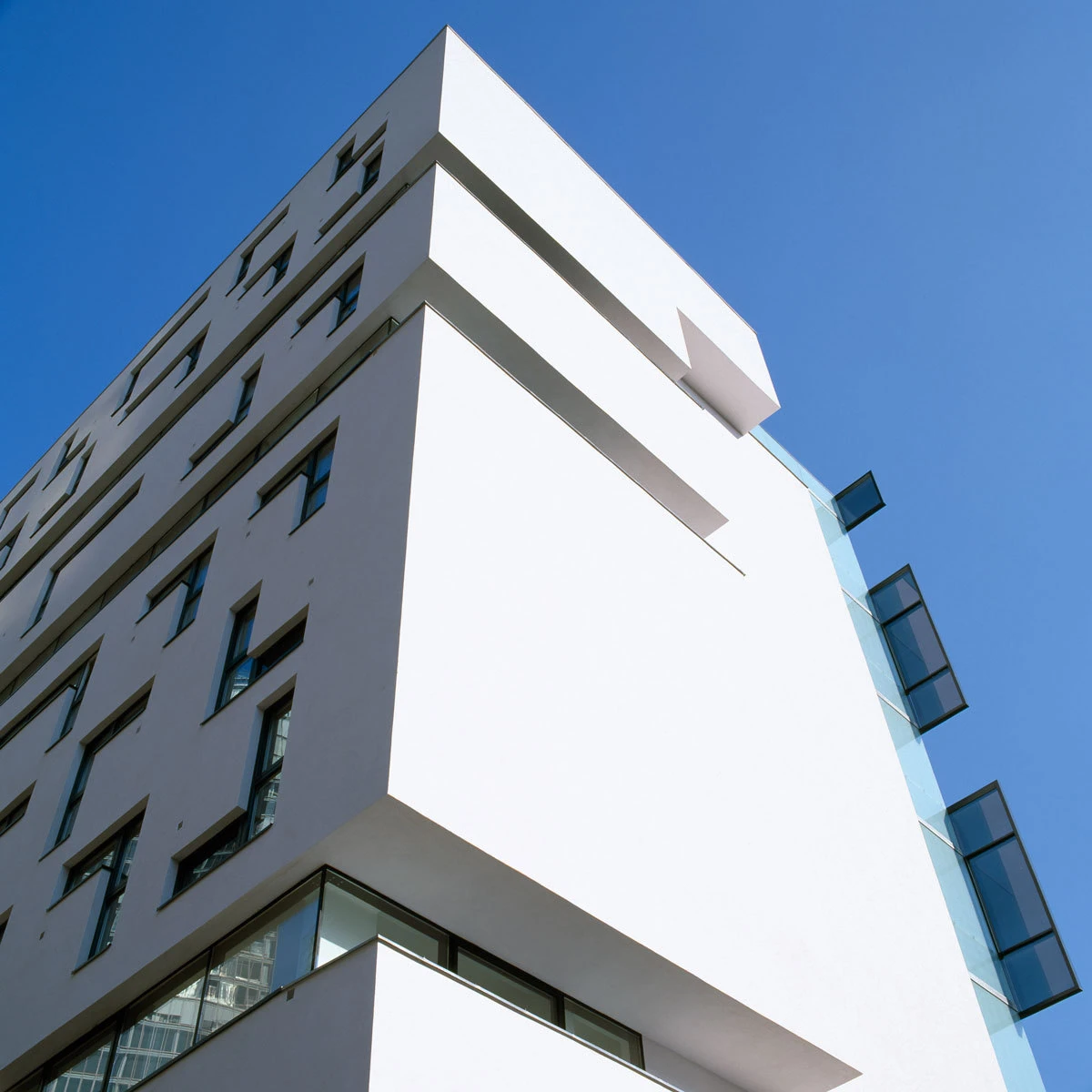

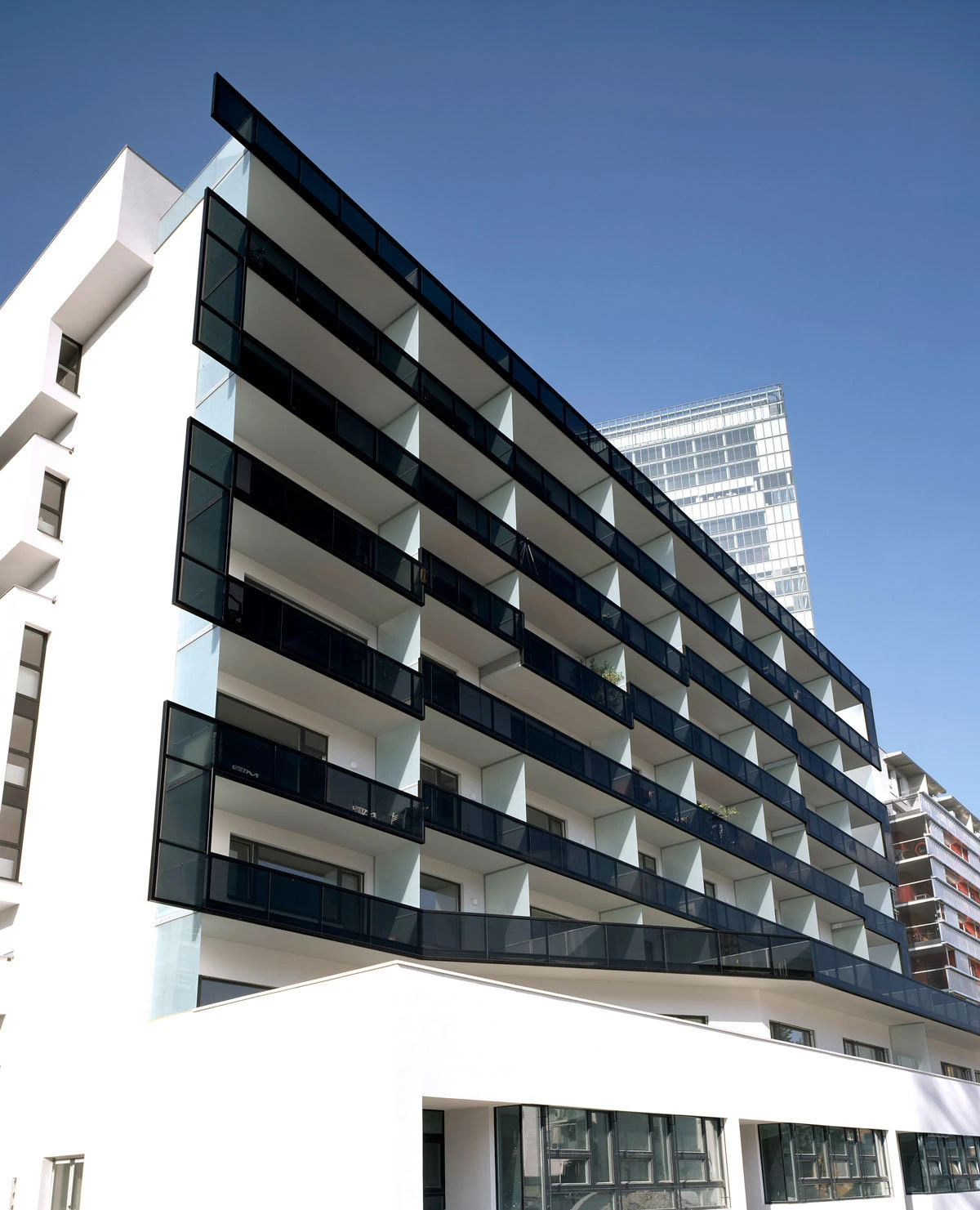

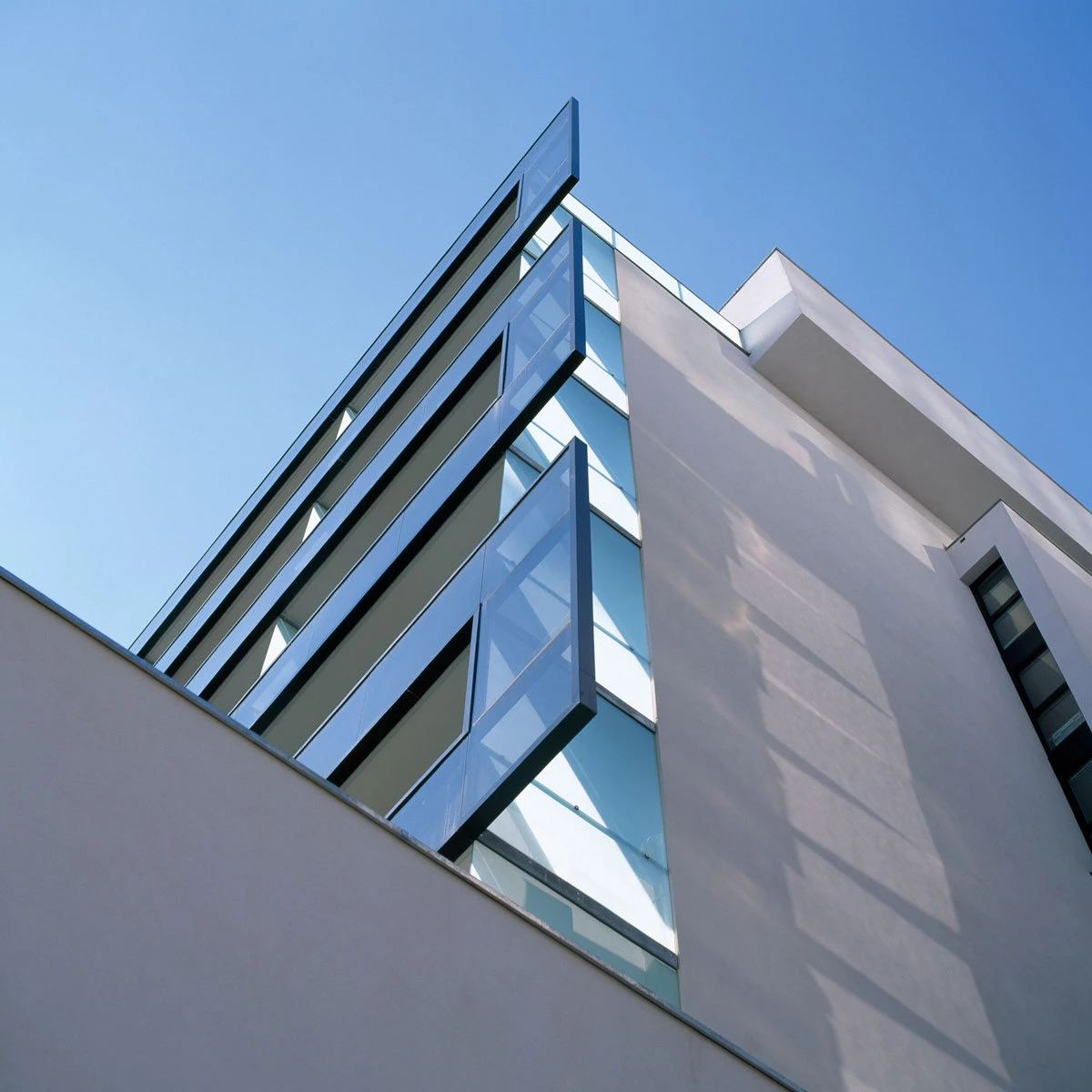

This design permits a multiplicity of dwelling types from bachelor pads to split level apartments, with glazed office units and studios on the north side. The complex interplay of domestic and working spaces is revealed in the dynamic north façade. By contrast, a continuous ribbon of balconies with balustrades screens the apartments on the south side.

Address
Hertha-Firnberg-Straße 10, A-1100 Vienna

Client competition
1999 [1st prize]

Start of planning
1999

Start of construction
04/2002

Completion
05/2004

Floor area
5.313 m²

Site area
2.378 m²

Site area total
4.670 m²

Developed area
977 m²

Converted space
23.971 m³

Apartments
47 (8 levels)
1 Kindergarten (4 groups)
Workspaces (attributed to apartments)

Building Costs Total

(incl. east component by Cuno Brullmann)
€ 12 Million

Costs/m²
€ 1.152 /m²

Project Team
Arnim Dold, Norbert Müller

Artwork
Norbert Brunner, Vienna, Austria

CONSULTANTS

Structural engineering
DI Javurek und Schweiger, Baden, Austria

HVAC
DI Ernst Haustechnik GesmbH & CO KG,
Olbendorf, Austria

Construction physics
DI Hans J. Dworak
Vienna, Austria

Client
Kallco Bauträger GmbH

Photographer
Hertha Hurnaus, Wien

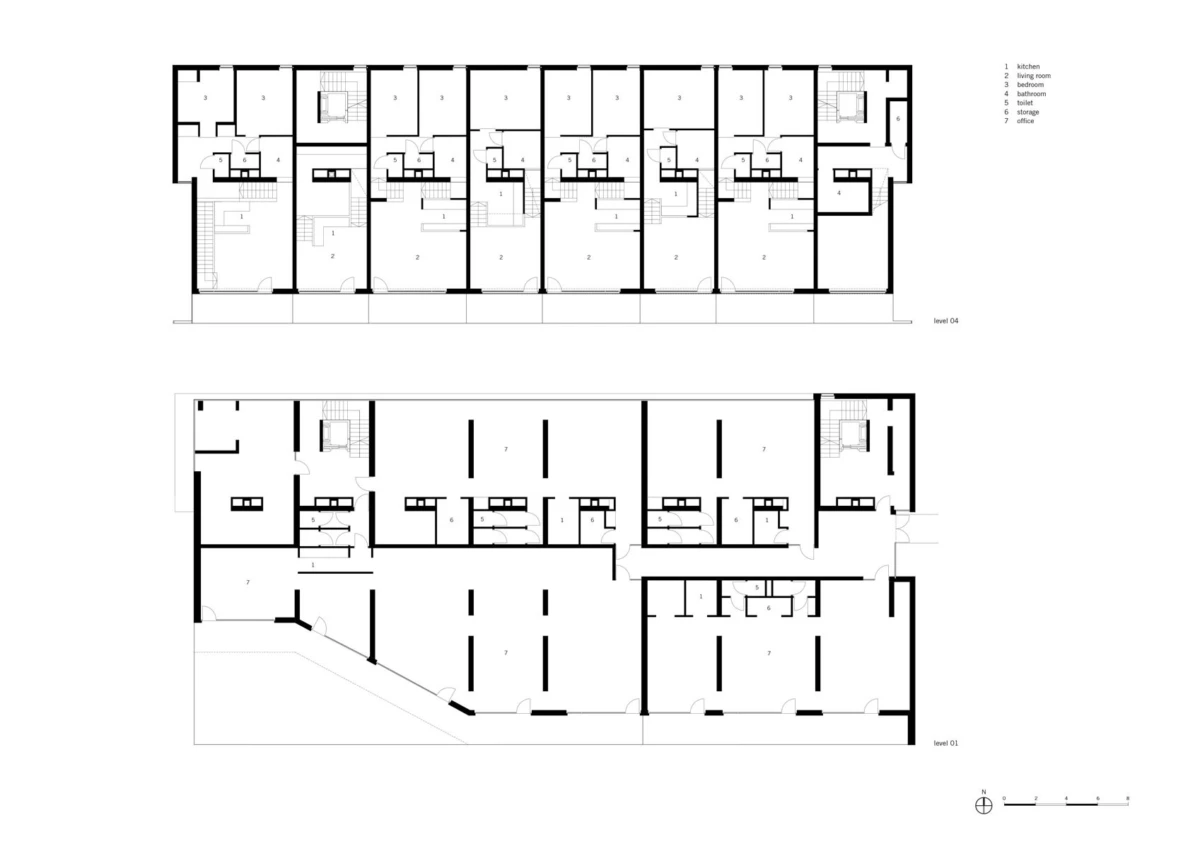

Floor plan level 01
Floor plan level 04

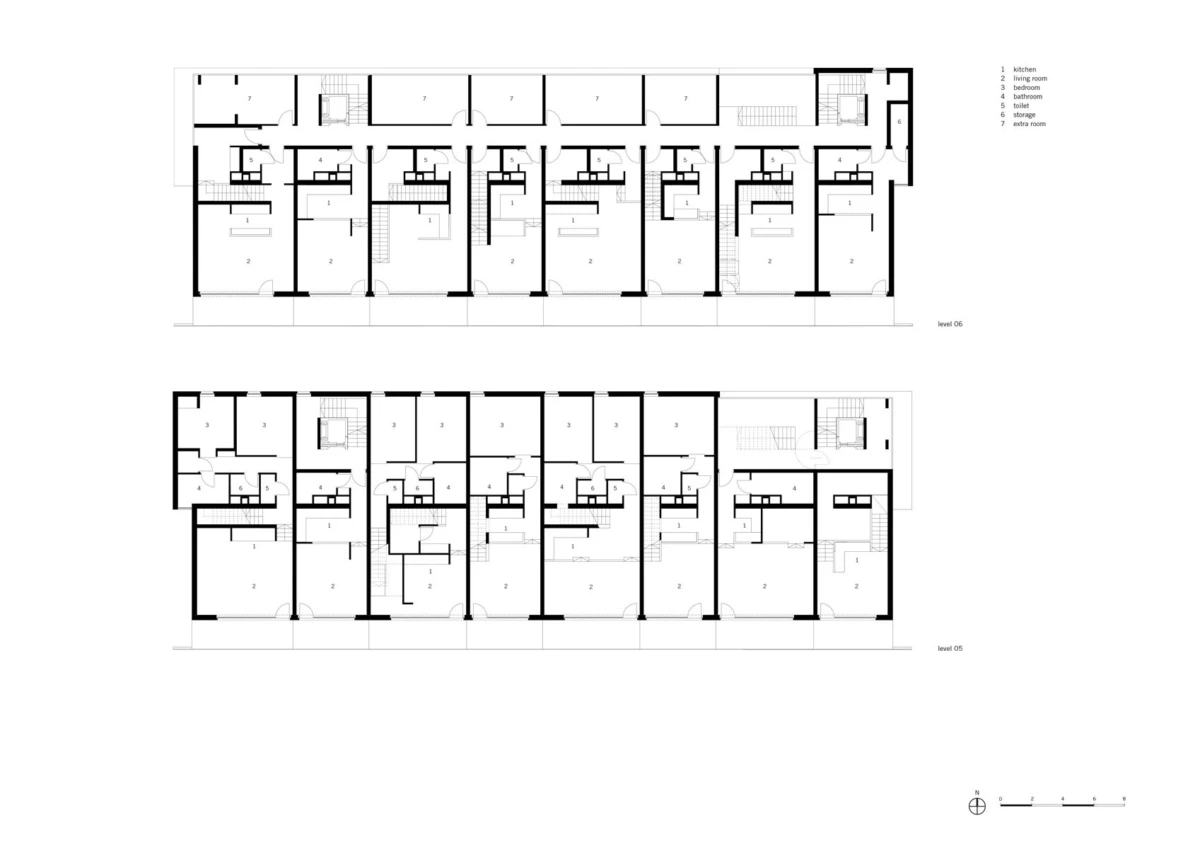

Floor plan level 05
Floor plan level 06

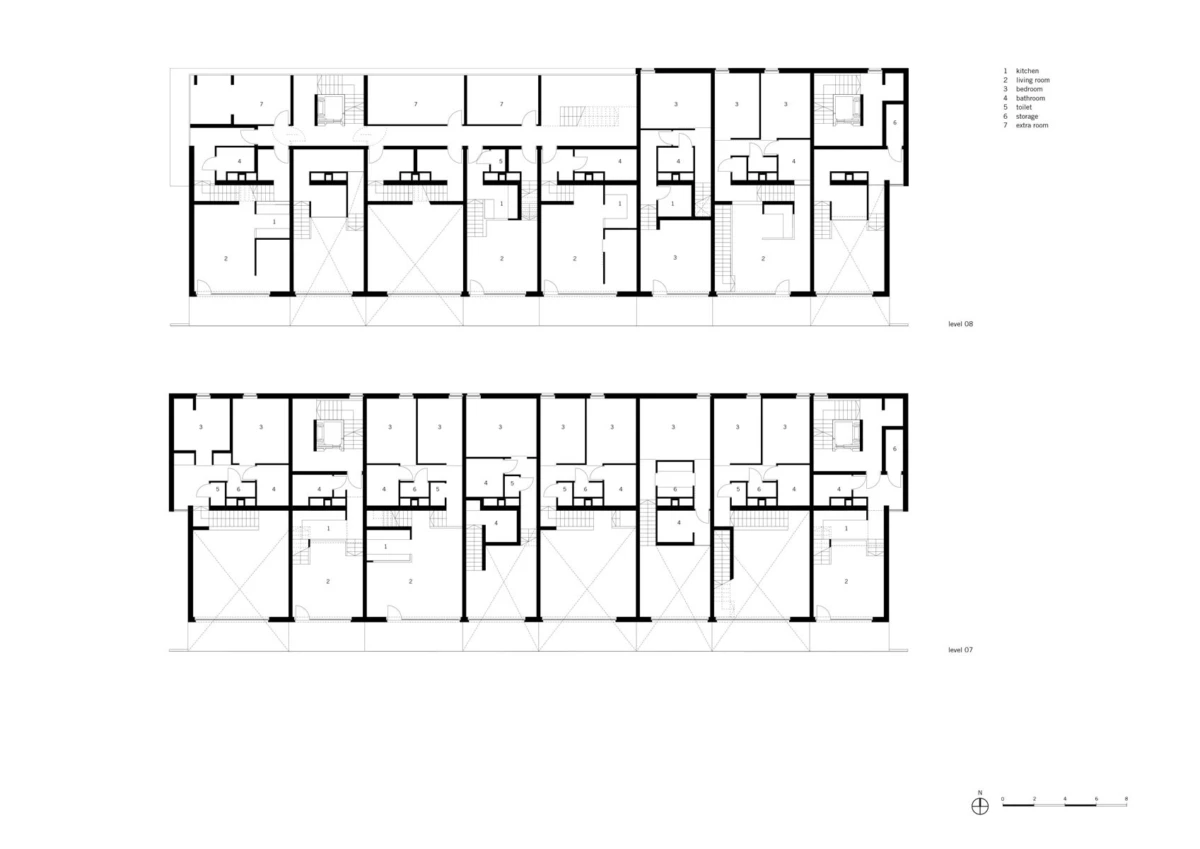

Floor plan level 07
Floor plan level 08

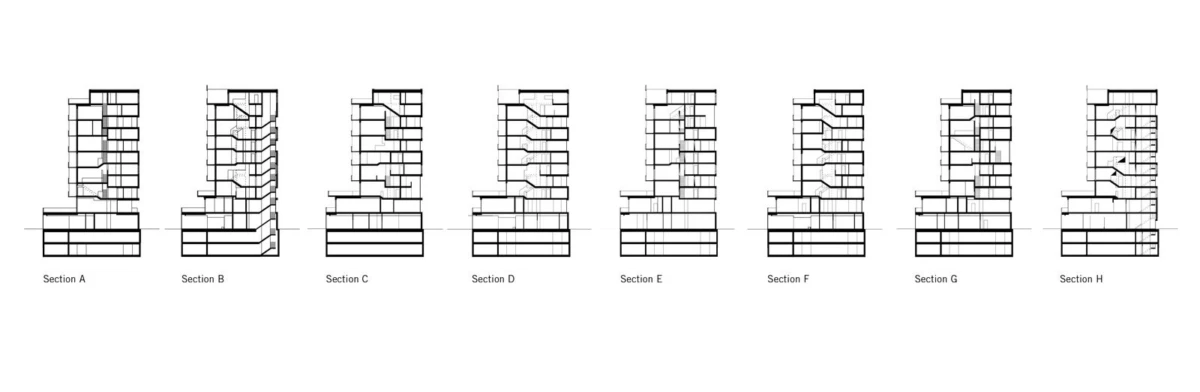

Sections

CITY LOFTS WIENERBERG, Austria, 2004

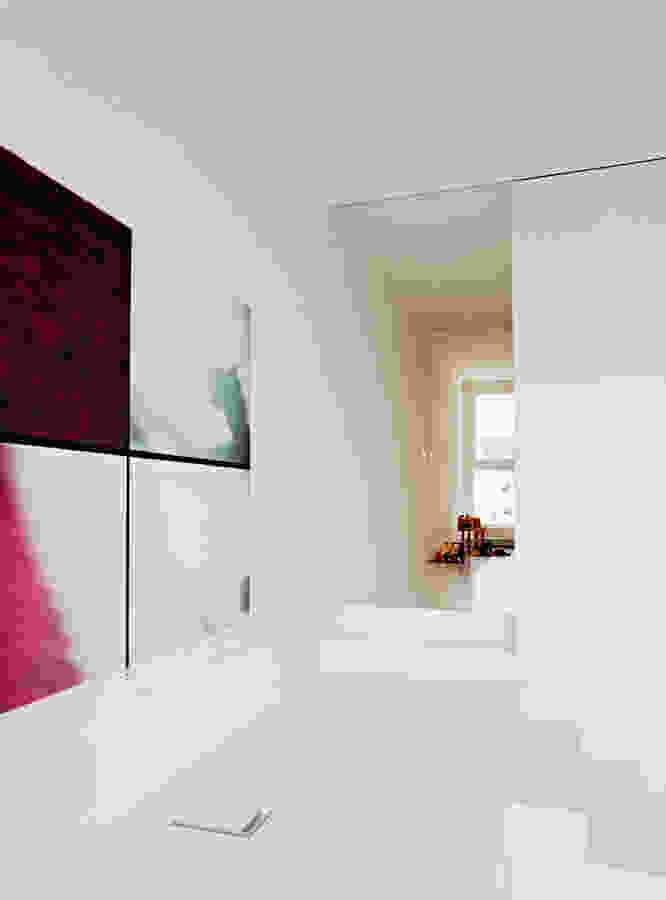

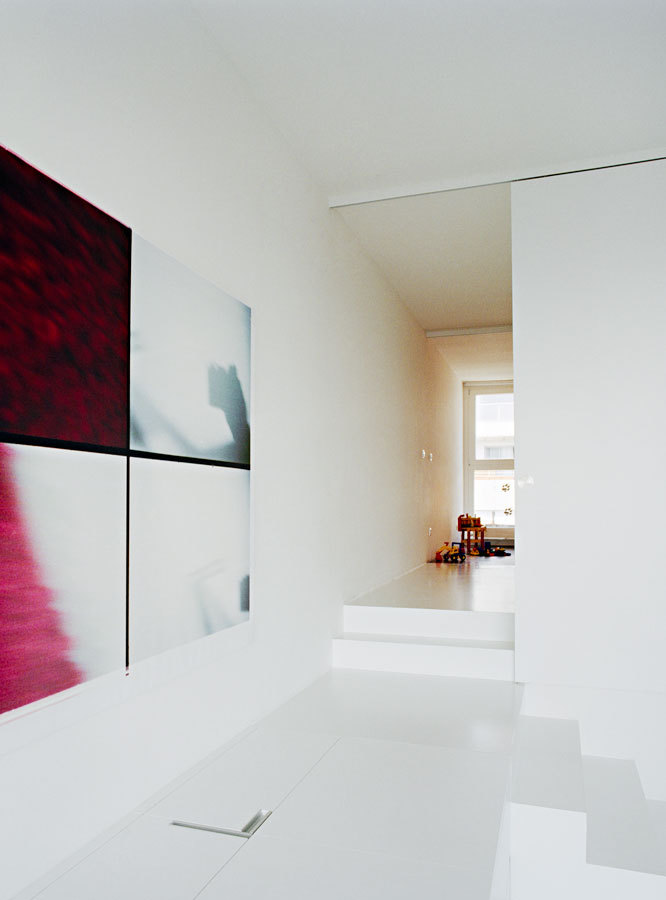

038 city lofts wienerberg Herta Hurnaus 102 interior

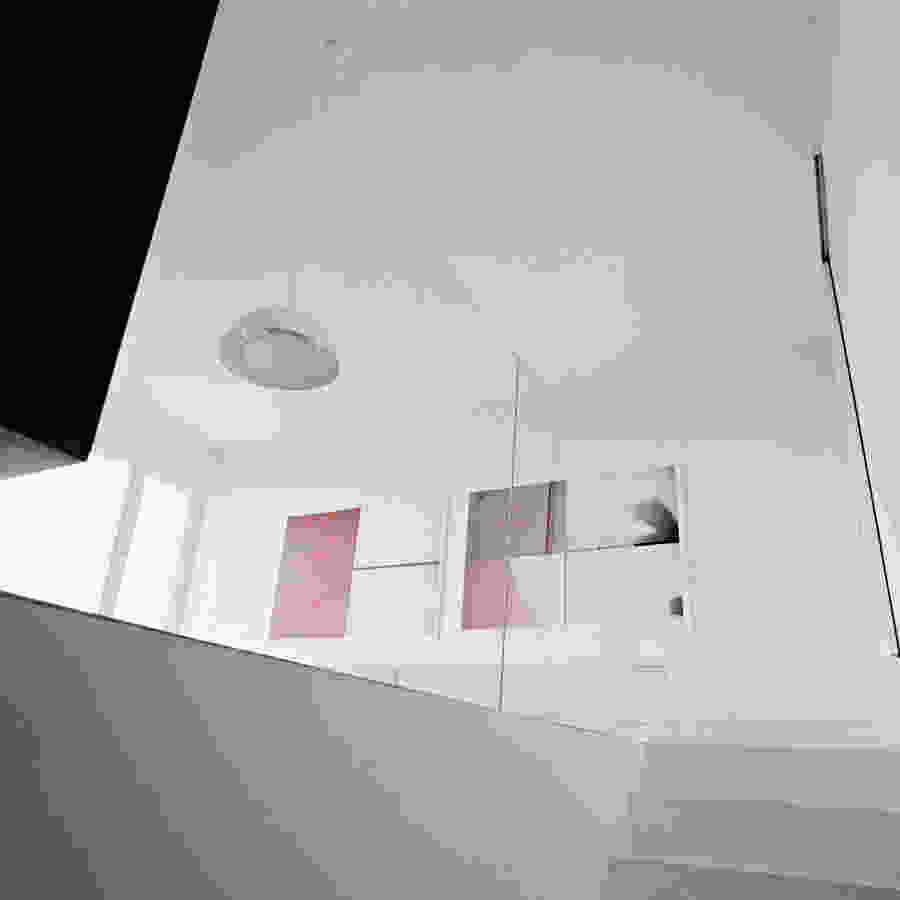

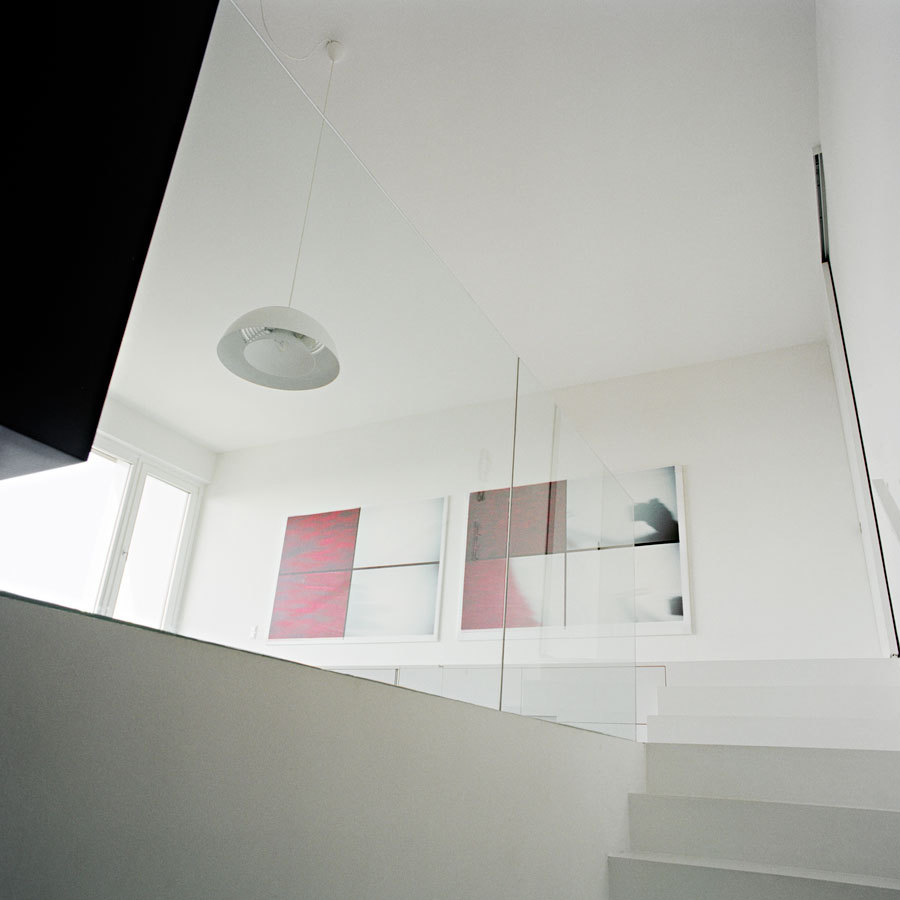

038 city lofts wienerberg Herta Hurnaus 110 interior

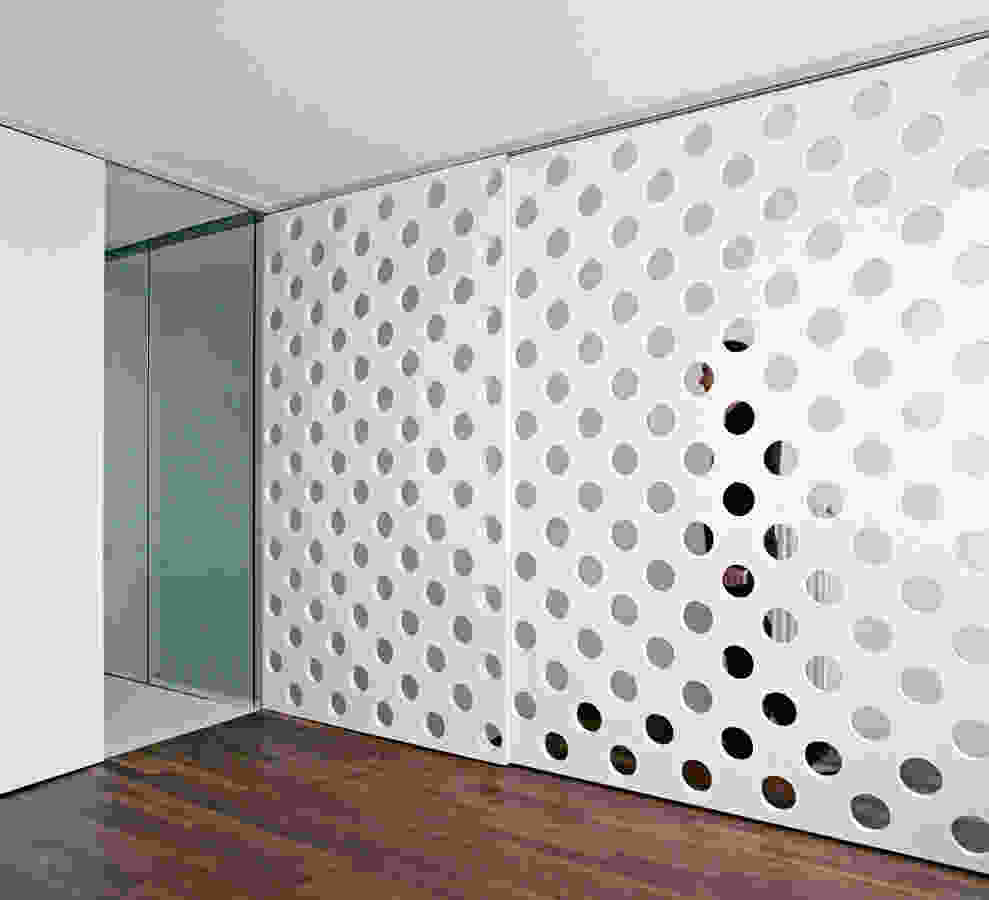

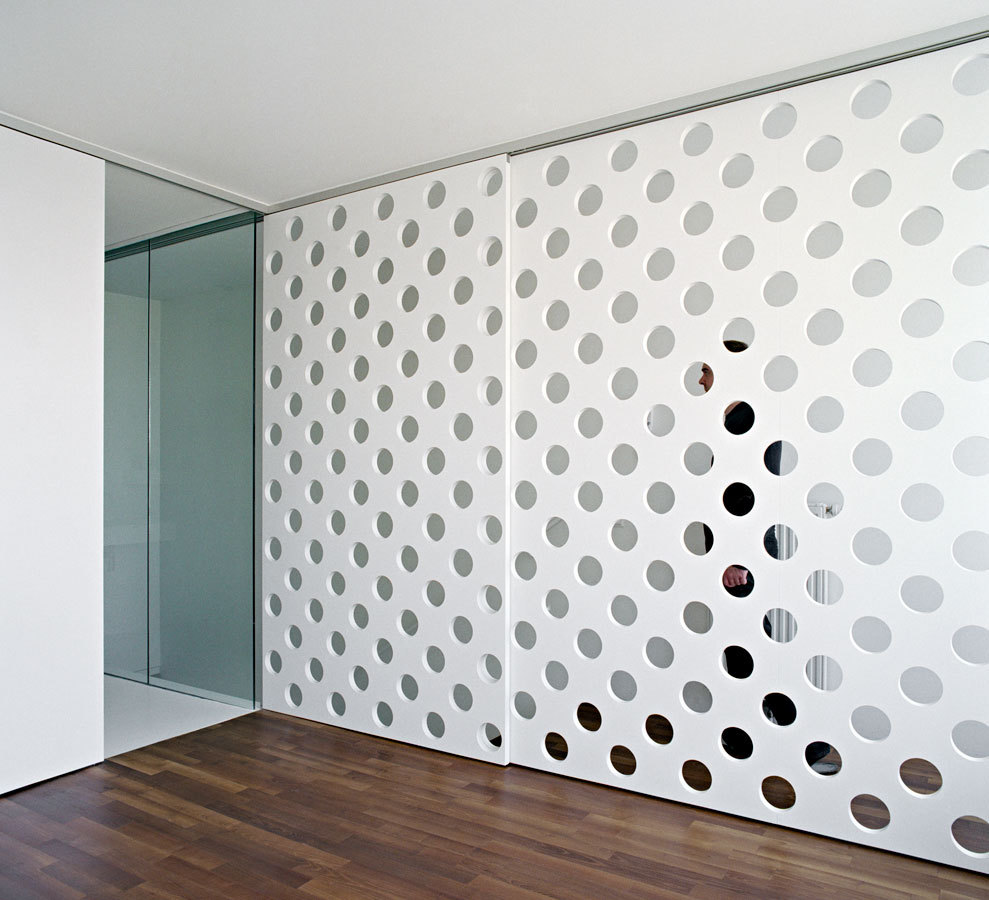

038 city lofts wienerberg Herta Hurnaus 104 interior
