Pier 05
Seestadt Aspern
Pier 05
Austria
  • High-Rise
  • Mixed Use
  • Residential
  • Competition

Three compact building types characterised by different volumes serve as a geometric leitmotif, which develop over a 15-metre-high green common base. The visual rhythm and the precise, rail-like positioning of the three buildings in the area form a harmonious trialogue. The buildings define an open, ambiguously permeable and changeable urban space on their different storey levels. They enable an open development process and the emergence of a vital urbanity, not least in terms of a high range of leisure activities. The structural-spatial requirements of such a concept are created on both the urban planning and building typological scale levels. The buildings are integrated in a flexible way into the constantly developing urban space and thus allow for real estate economic leeway. In addition, the concept ensures a fundamental elasticity with regard to the rapid change of supply and demand.

With its generous ground floor and the open-plan ensemble of rooms above it, the plinth offers a high degree of adaptability for future developments. The plateau on the plinth as a green refuge provides a panoramic terrace and an island that can be used in a variety of ways. The clear form and precise positioning of the houses as well as the two squares define a flowing outdoor space that offers the residents an inviting semi-public open space. The spatial framework is enriched by an extensive range of communal facilities that can be used in a variety of ways and which find their place in the underlying house structure in an unpretentious manner. The eaves line of the three houses oriented towards the lake staggered in height counterpointically underlines the horizontal expansion of the open space and strengthens the height accentuation of the three points with the high-rise building of the quarter. This results in an atmospheric bracket that inscribes itself in the urban configuration formed by the semi-public squares and the residential buildings.

Address
Seestadt, Wien

Competition
02/ 2023

Floor area
20.151,71 m²

Gross surface area
30.660 m²

Construction volume
99.995 m³

Site area
4.090 m²

Height
79 m

Number of levels
Tower: 24
Point House 1: 8
Point House 2: 13

Number of basements
1

Project manager
Julian Heinen

Project team
Tom Peter-Hindelang
Charlotte Beaudon Römer
Patrick Walter

IN COOPERATION WITH
Ganahl+Ifsits Architekten
ZT-KEG

Landscape Architects
YEWO Landscapes GmbH

Visualization
ZOOM VP GmbH

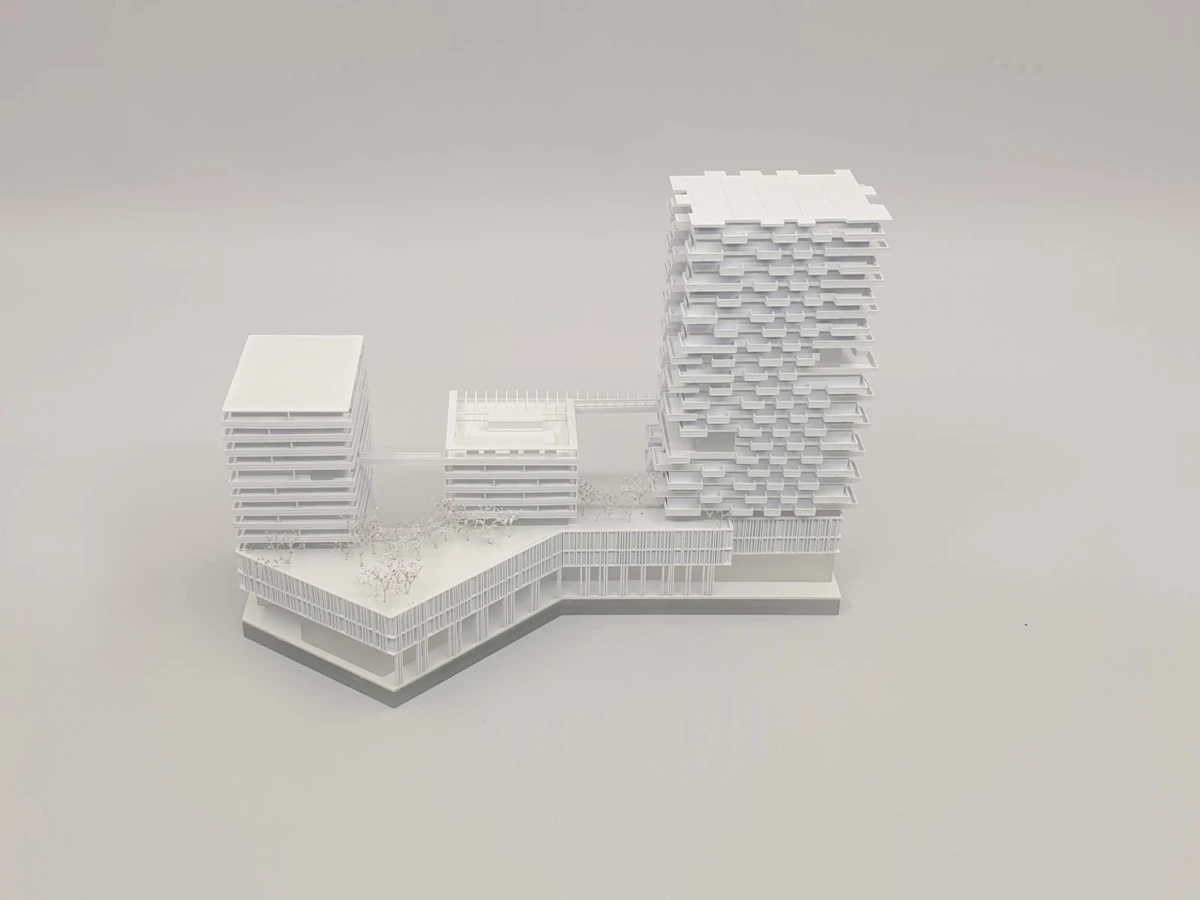

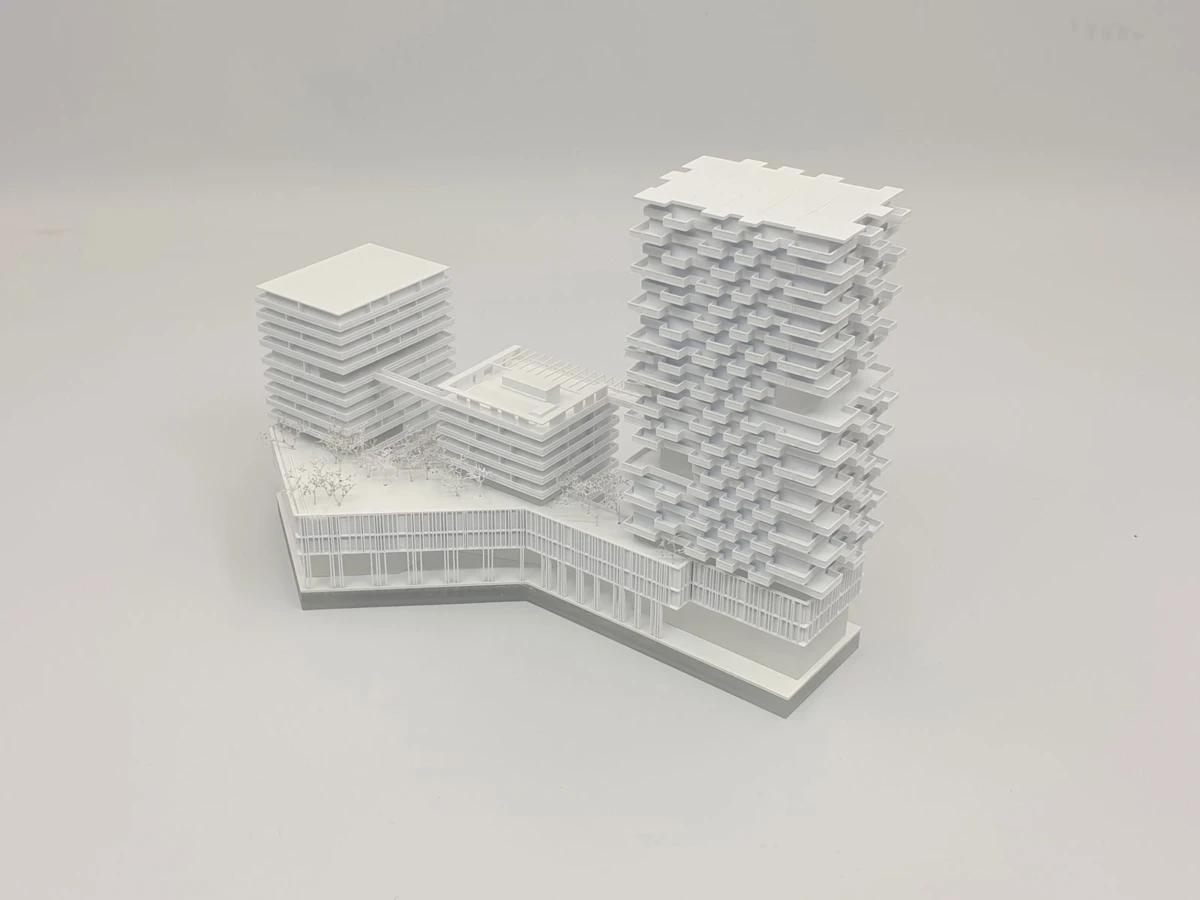

Modell
SCALA MATTA
Modellbau Studio Vienna

Awarding Body
STC Development GmbH

Seestadt Aspern
Vienna, 22

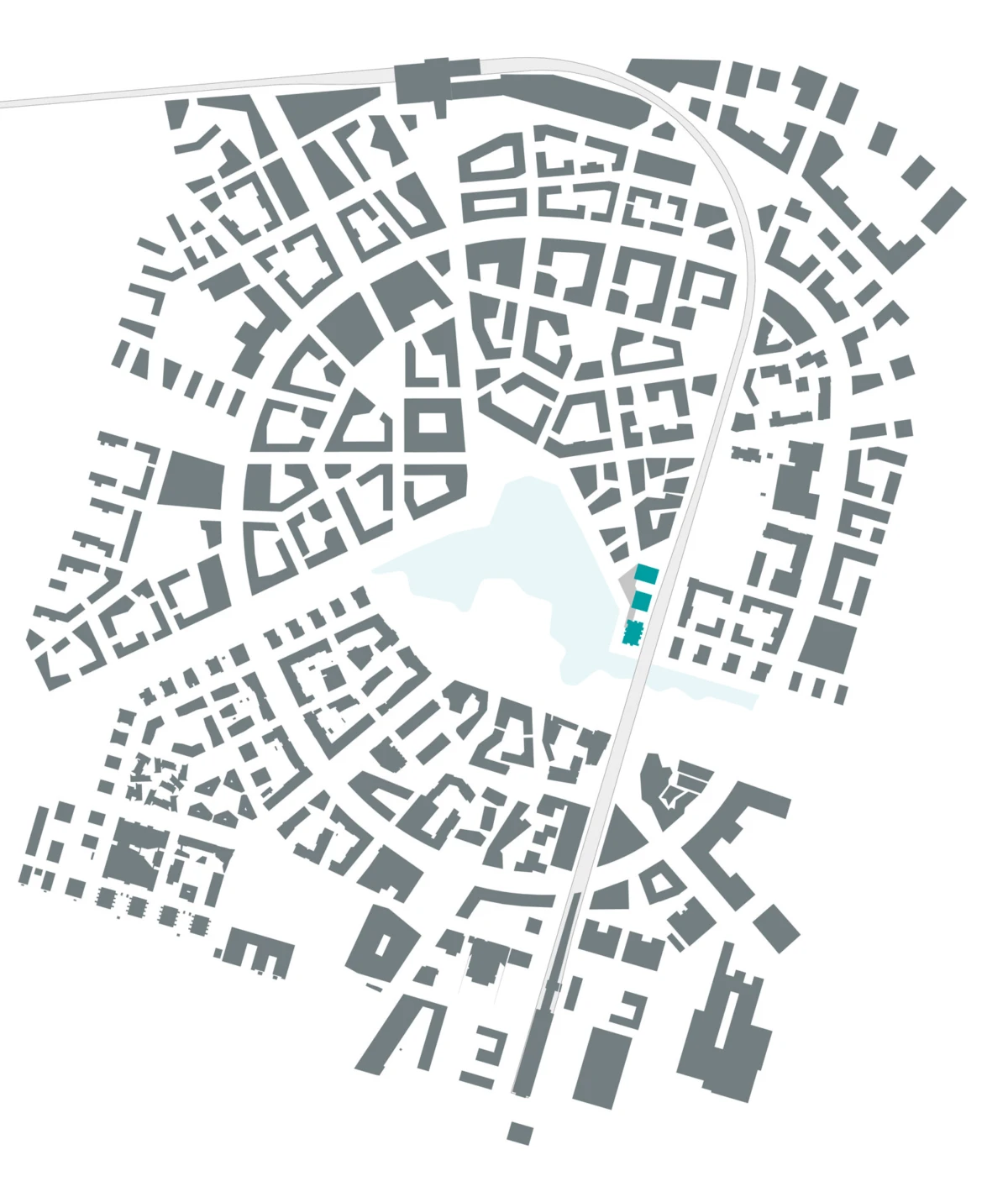

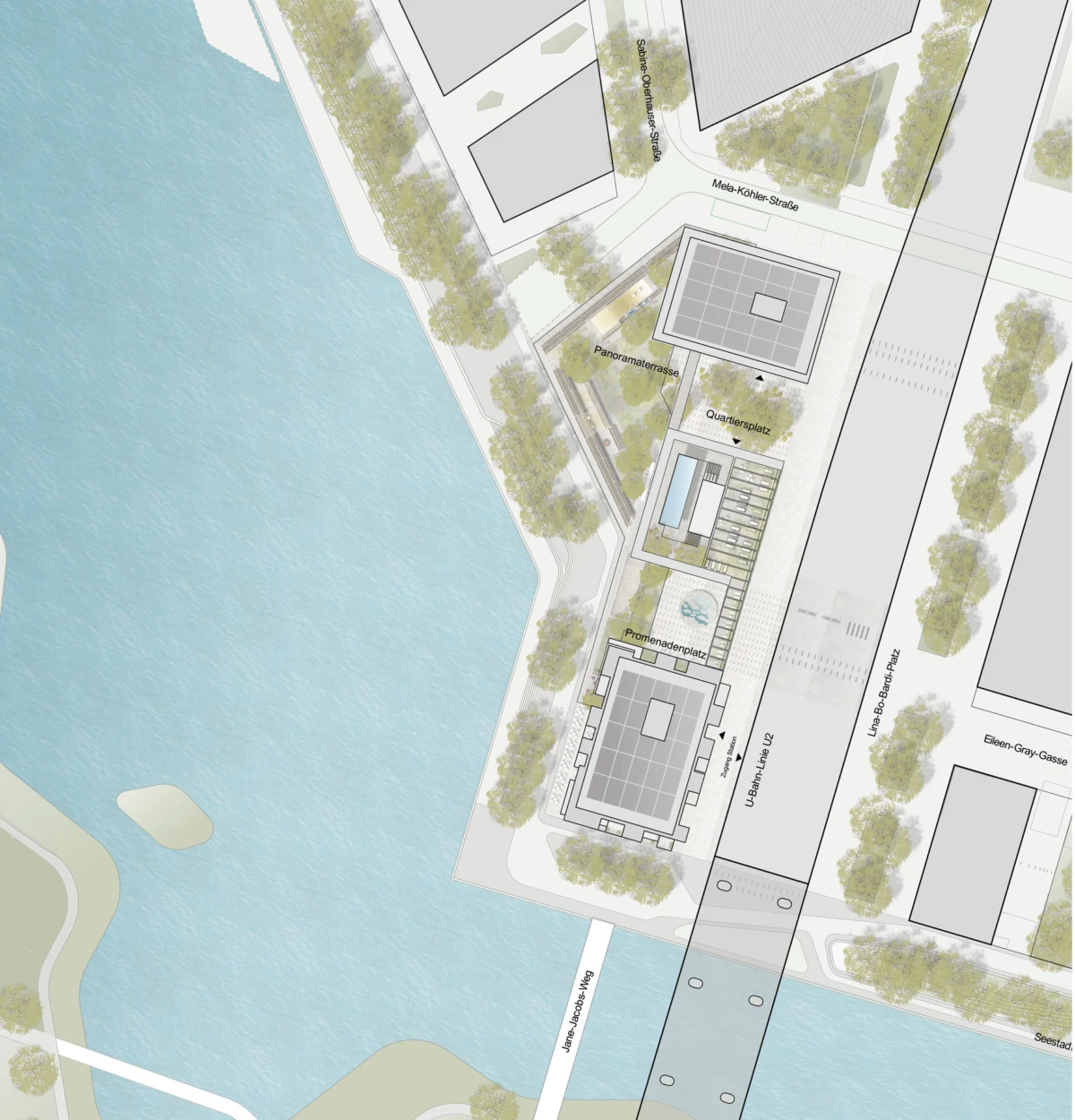

Site Plan

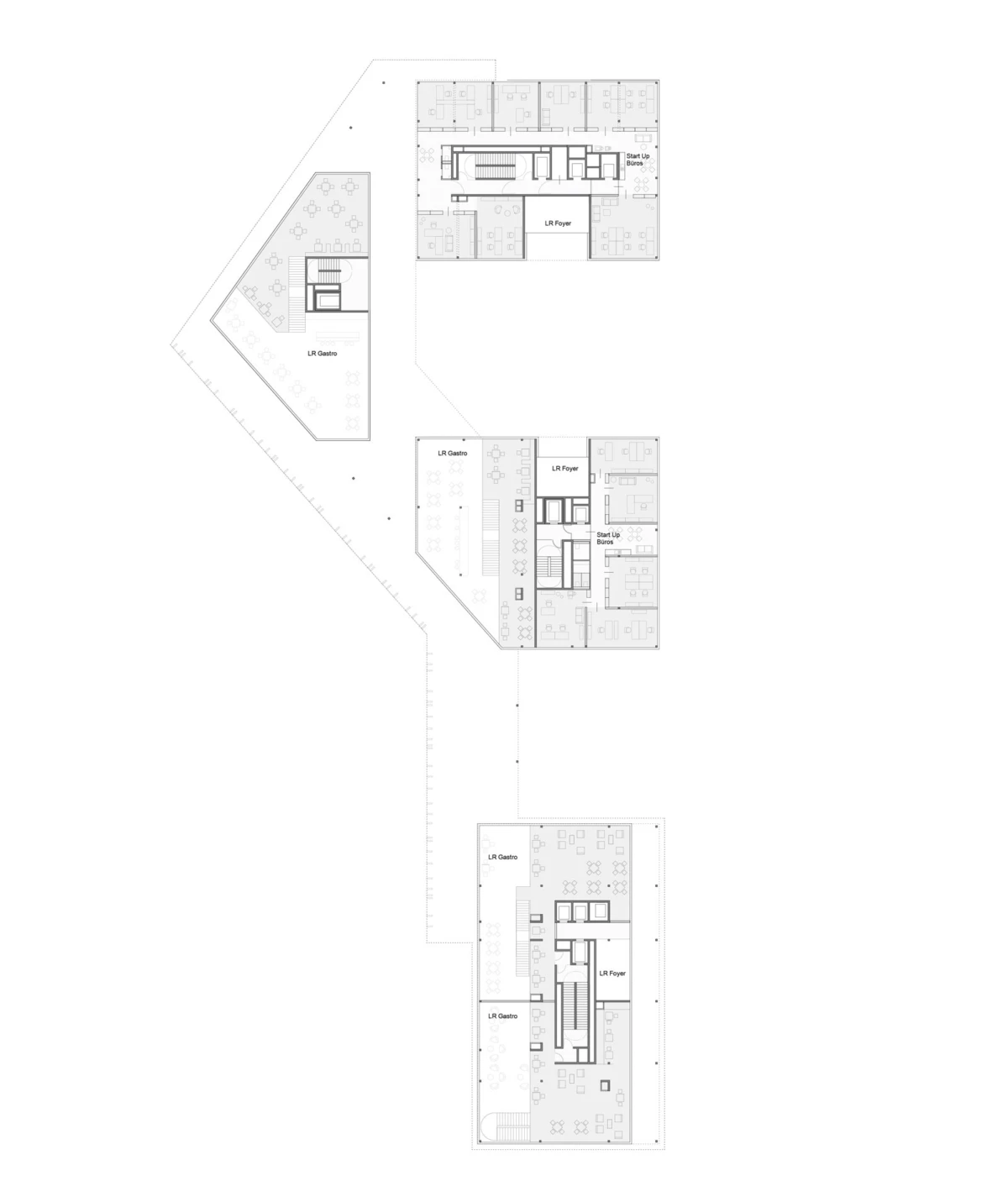

Floor plan level 01

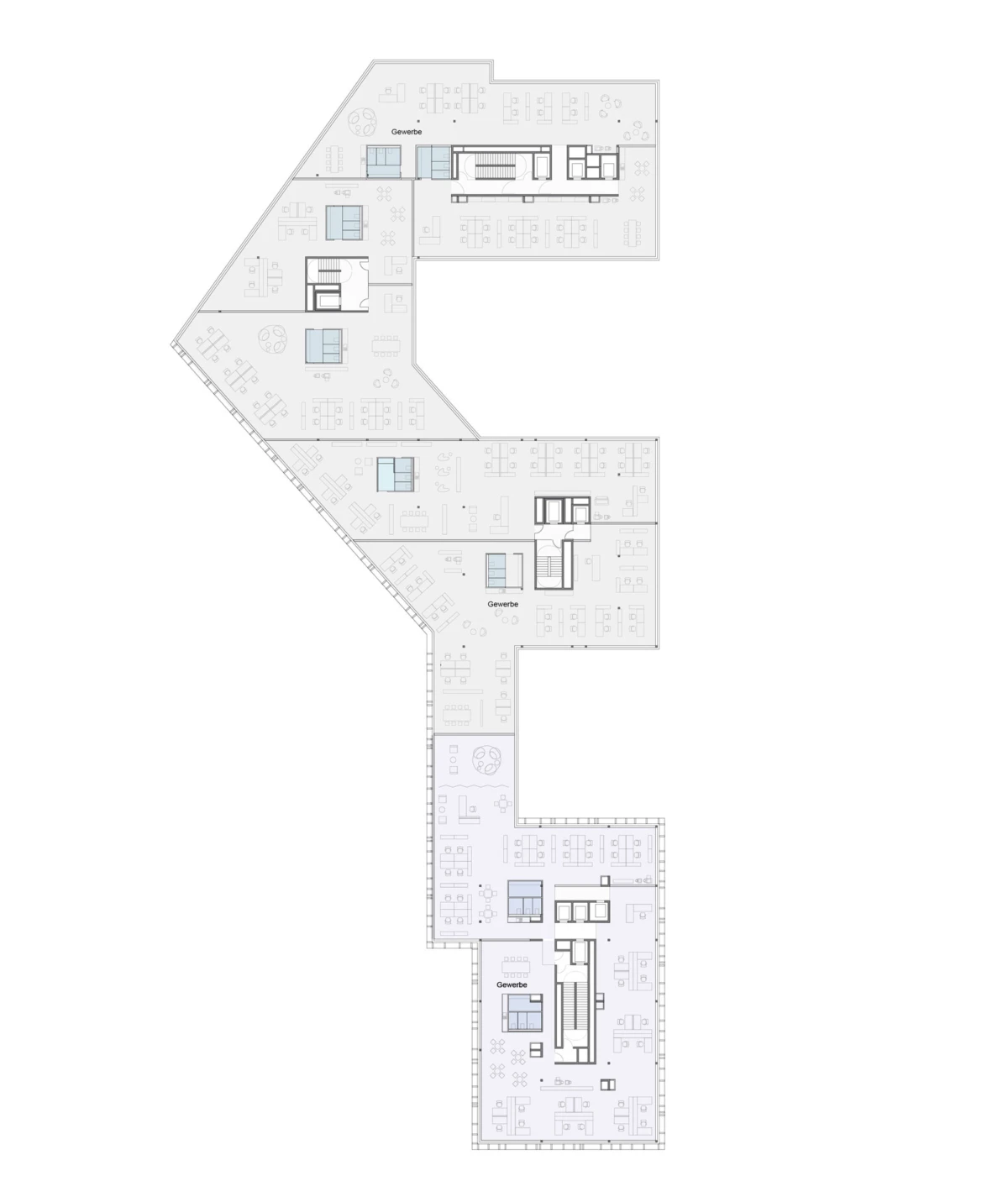

Floor plan level 03

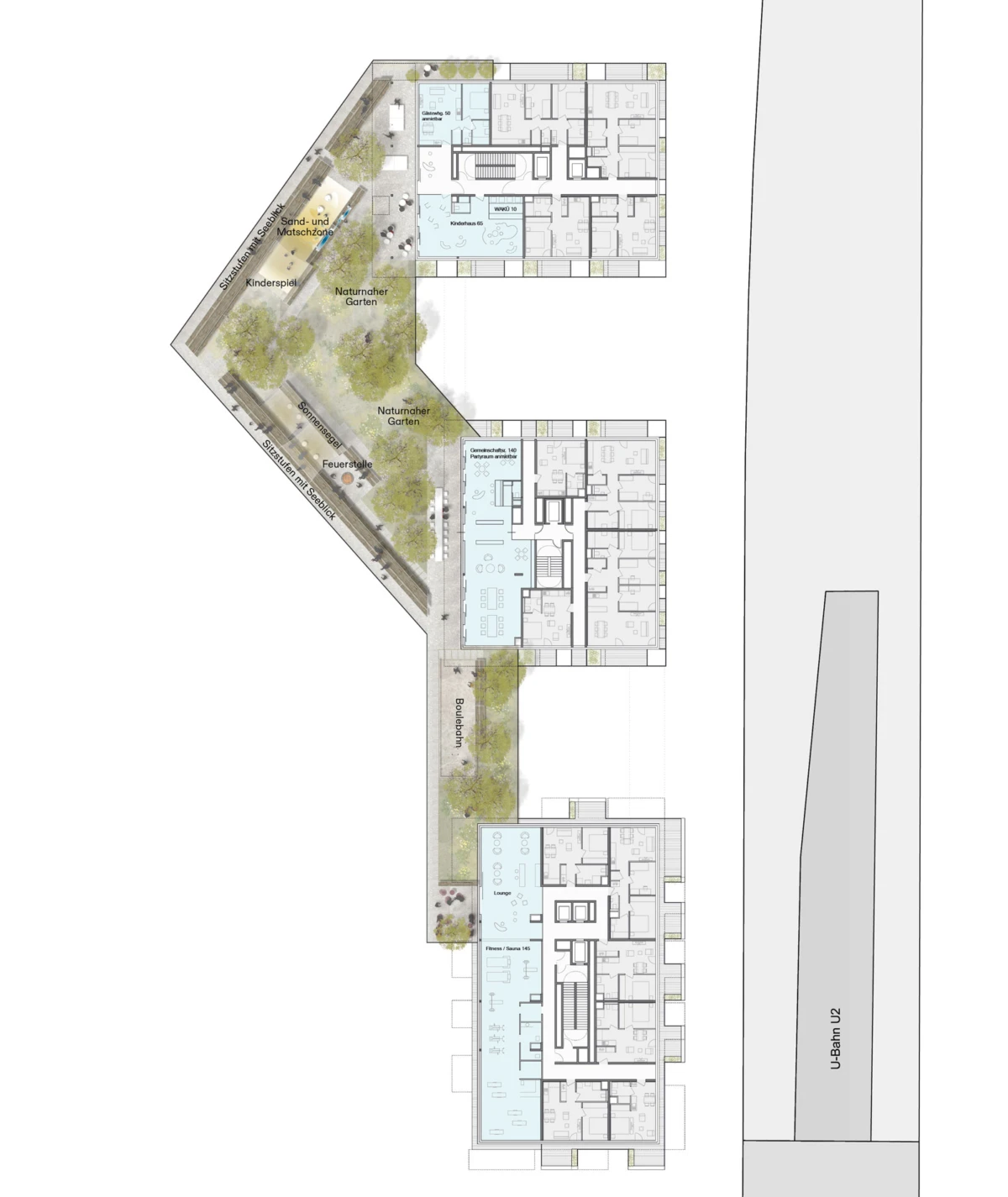

Floor plan level 04

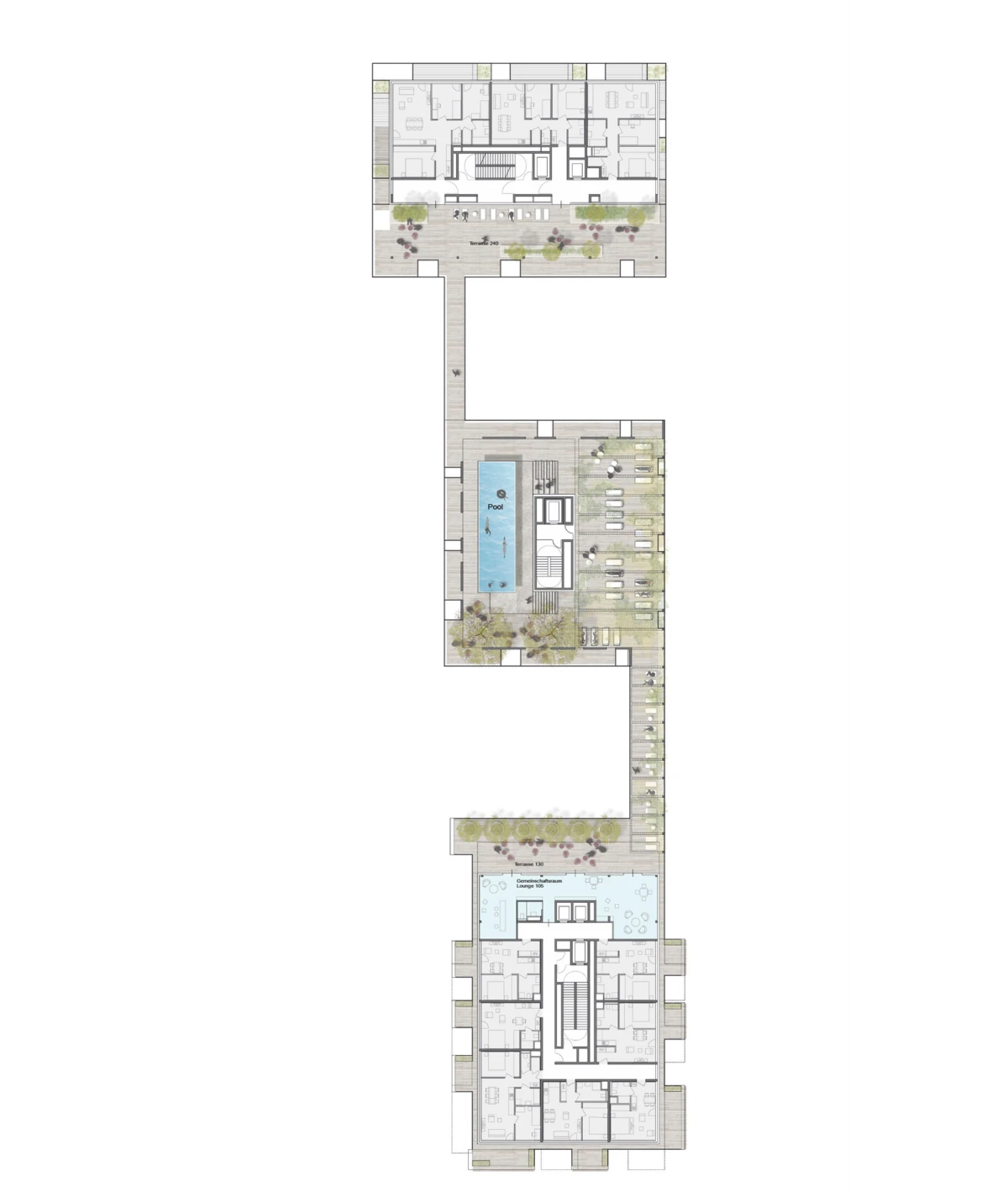

Floor plan level 09

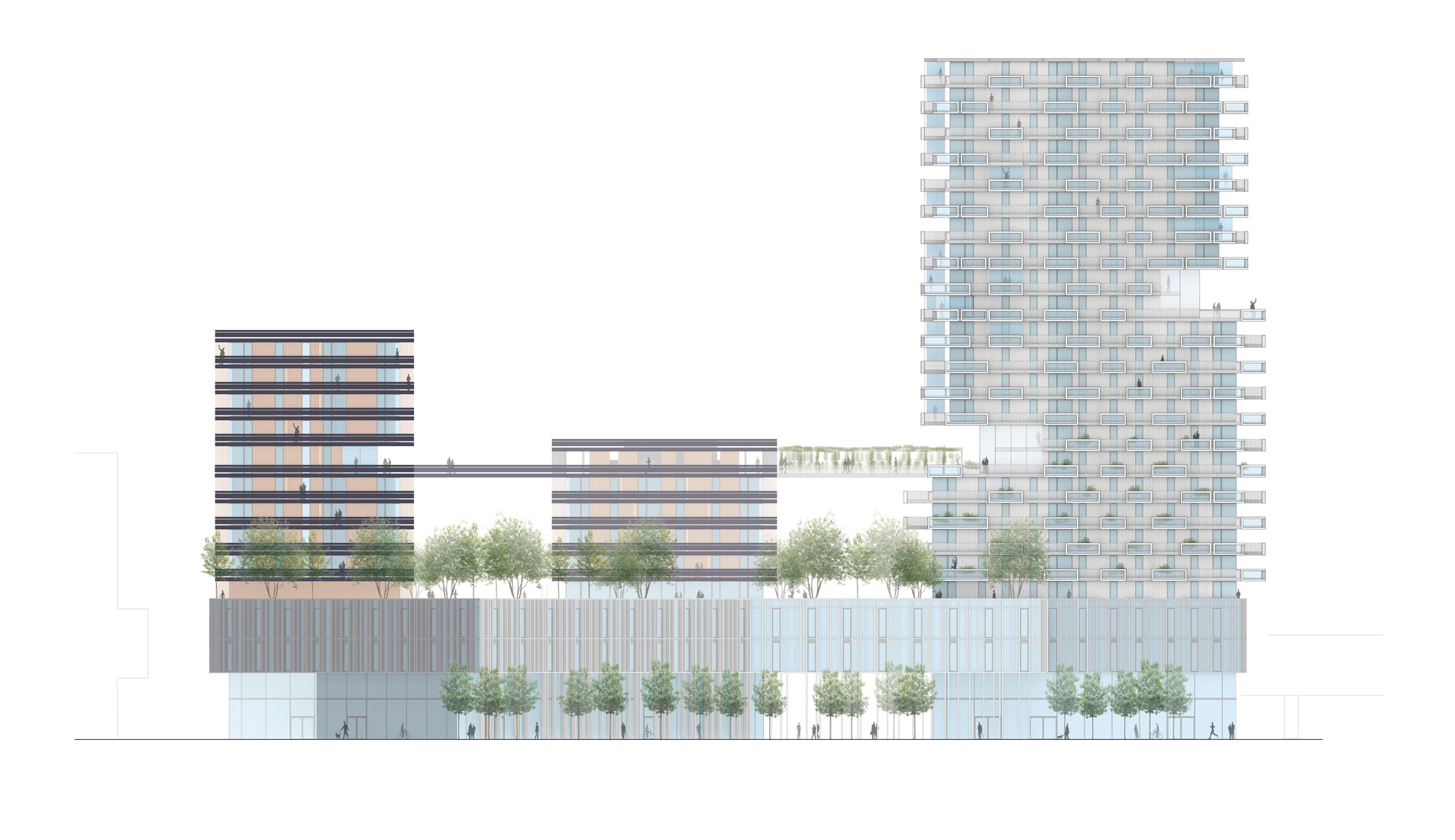

543 dmaa pier05 seestadt aspern 10 elevation west

Elevation west

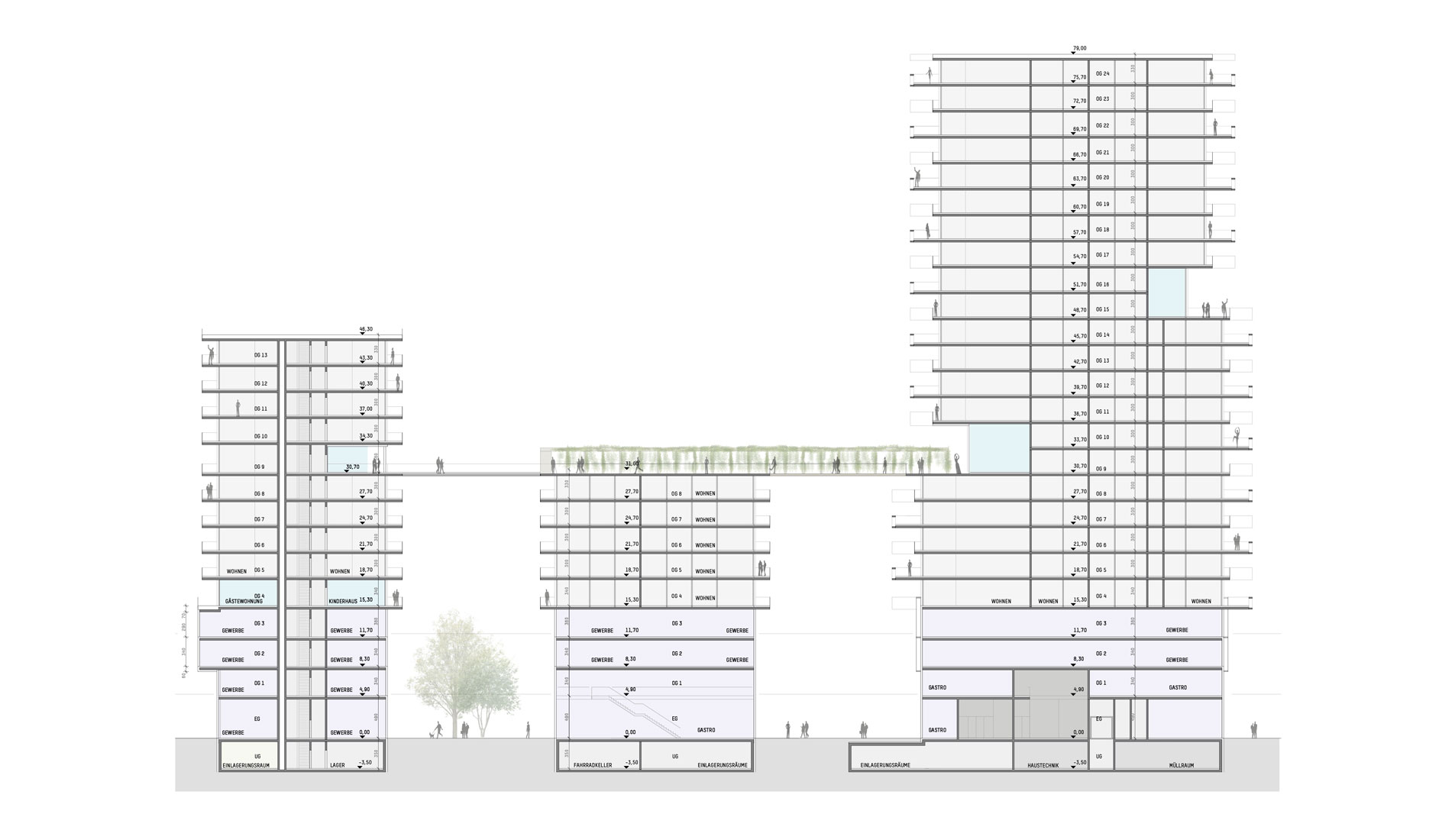

543 dmaa pier05 seestadt aspern 13 section BB

Section A-A

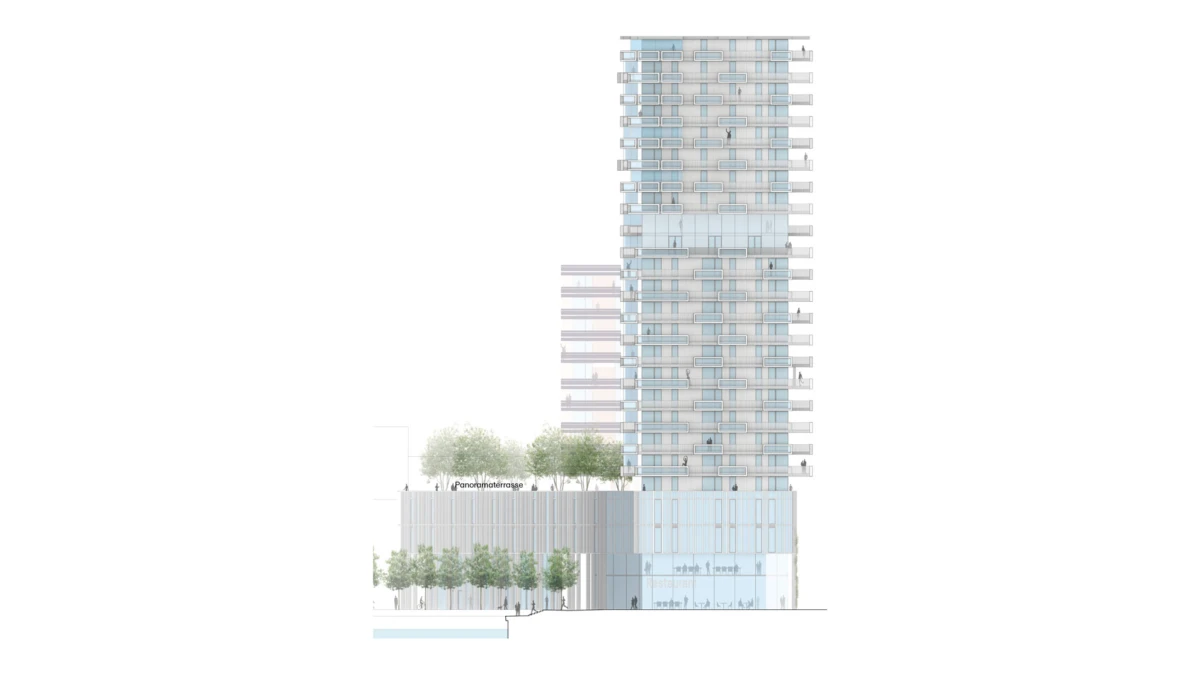

543 dmaa pier05 seestadt aspern 11 elevation south

Elevation south

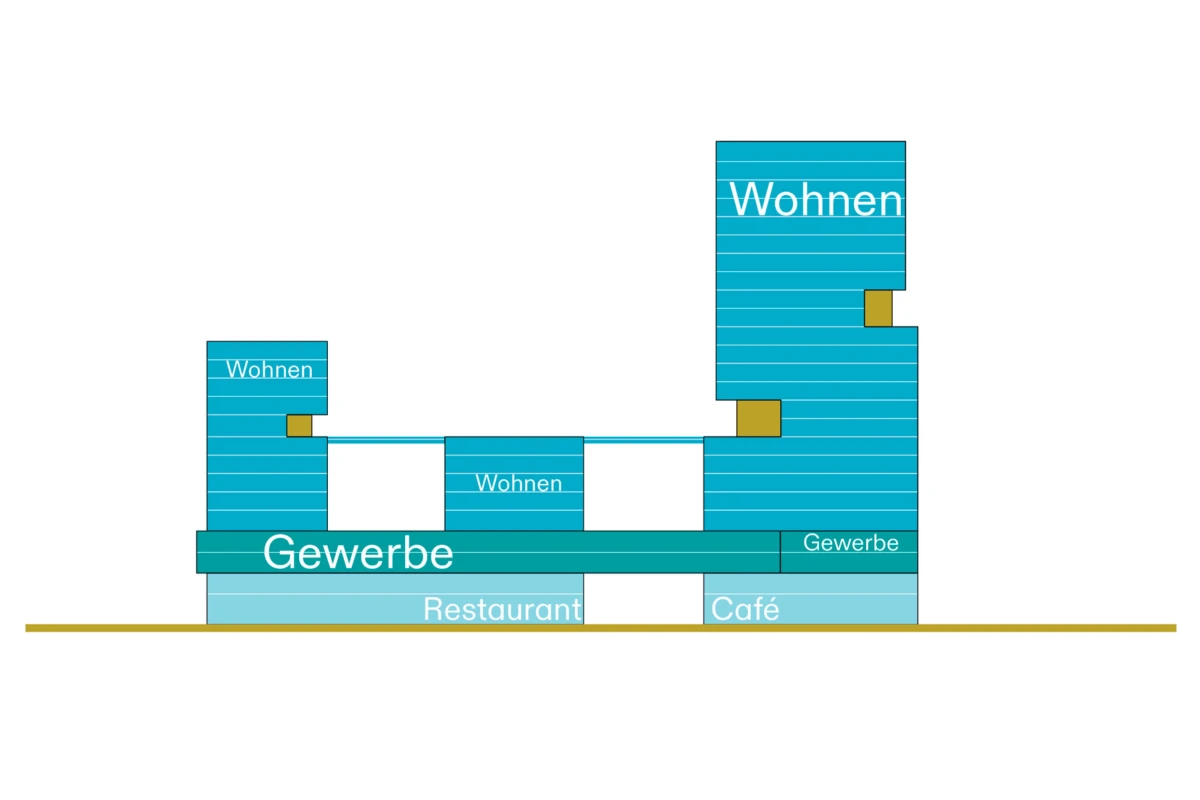

Program

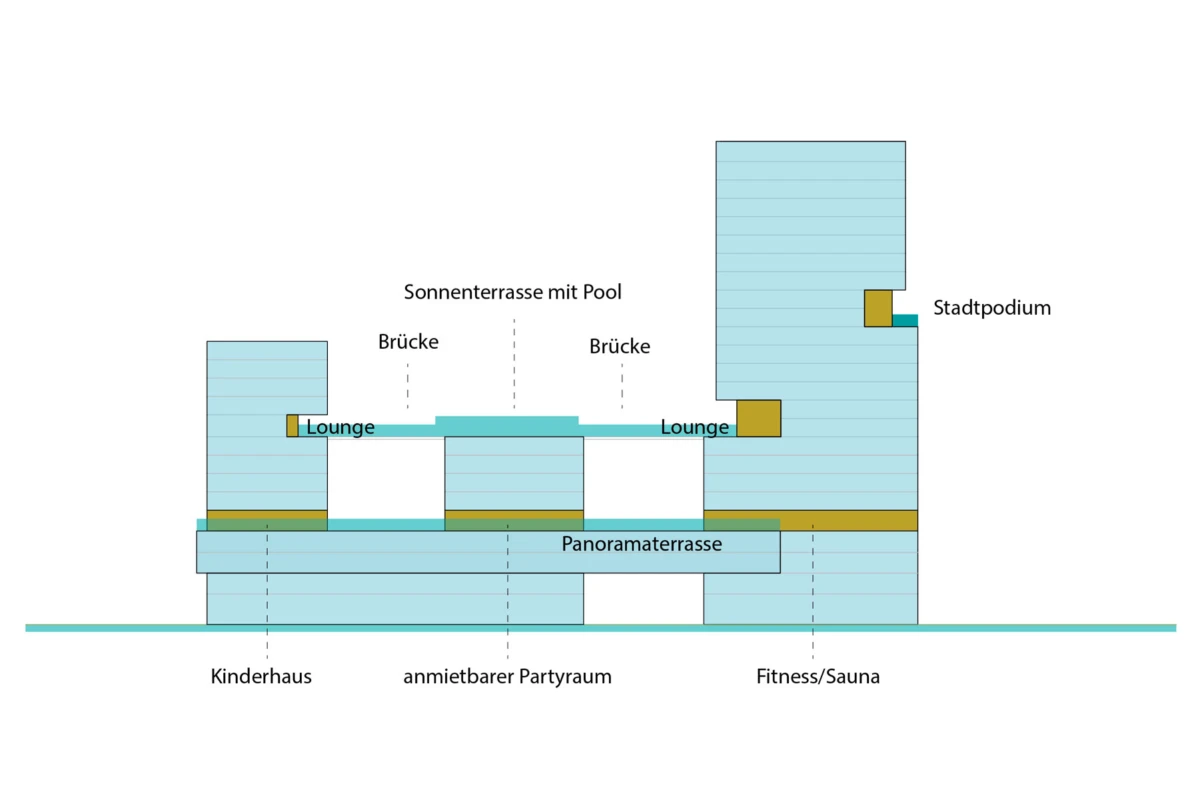

Common areas

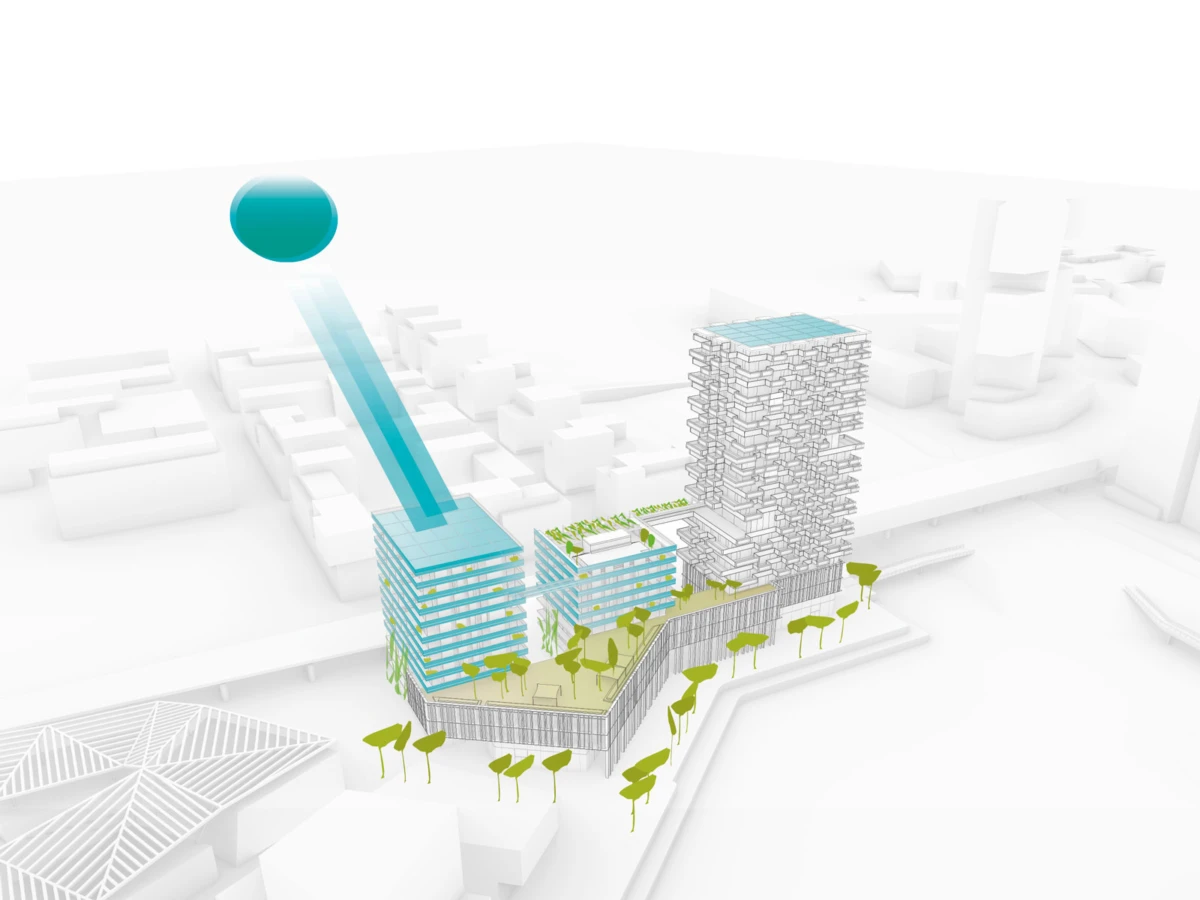

PV Elements
