102 Steigenteschgasse facade hh 147 07
Steigenteschgasse
Austria
  • Residential
  • Built

This concept for an apartment building on the outskirts of Vienna – built in an existing gap between buildings – will have the ground floor level slightly set back from the street while the upper levels form a continuous front with the other building. As a result the roofed entrance area is inviting yet protected from the elements. The foyer opens up its urban surroundings and continues them in the form of topographical elements and ramps while at the same time enabling diagonal access to the courtyard and garden. The typology of the ground plan of the four-in-hand building results from the attractiveness of the north-south alignment of the quoins, each of which house two flats.

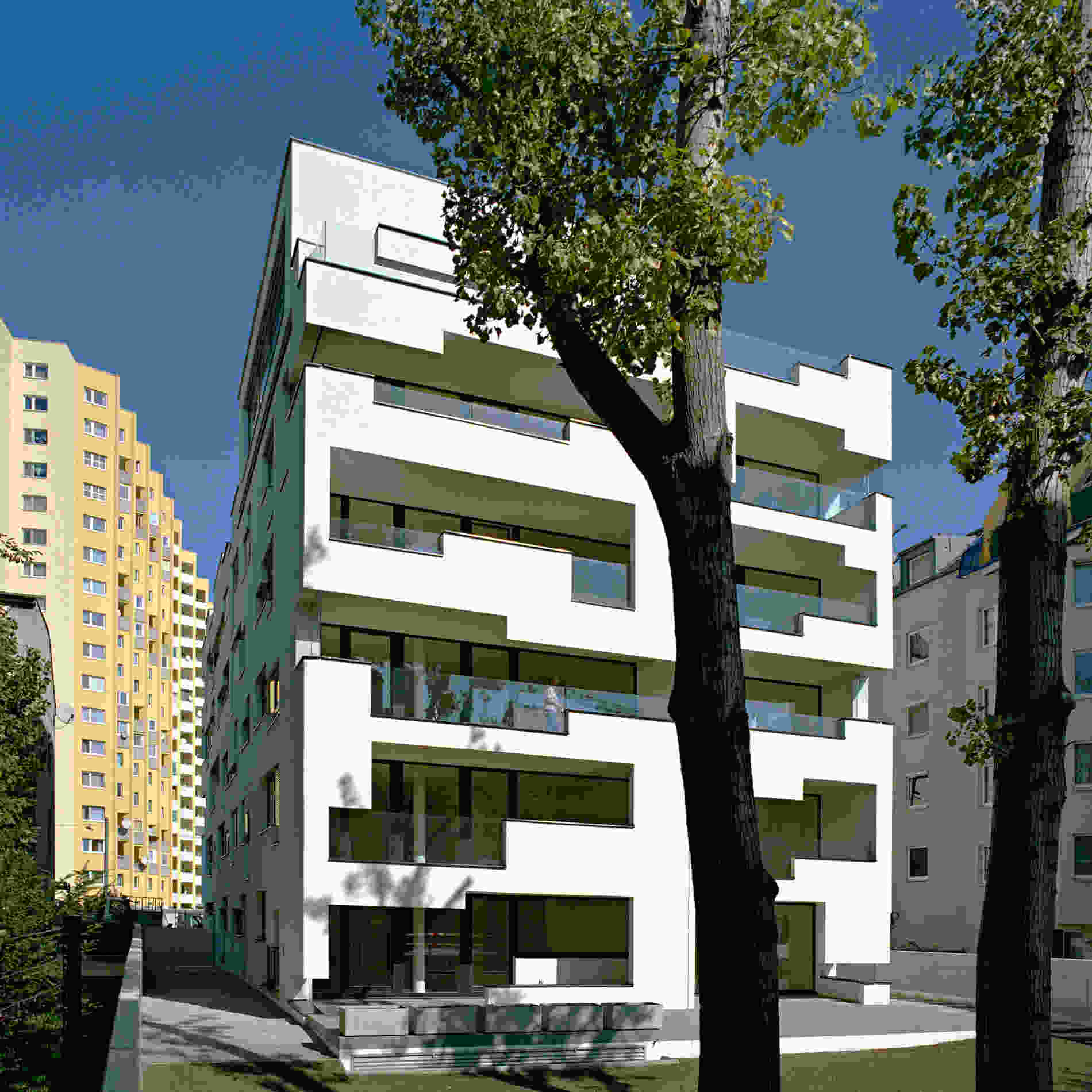

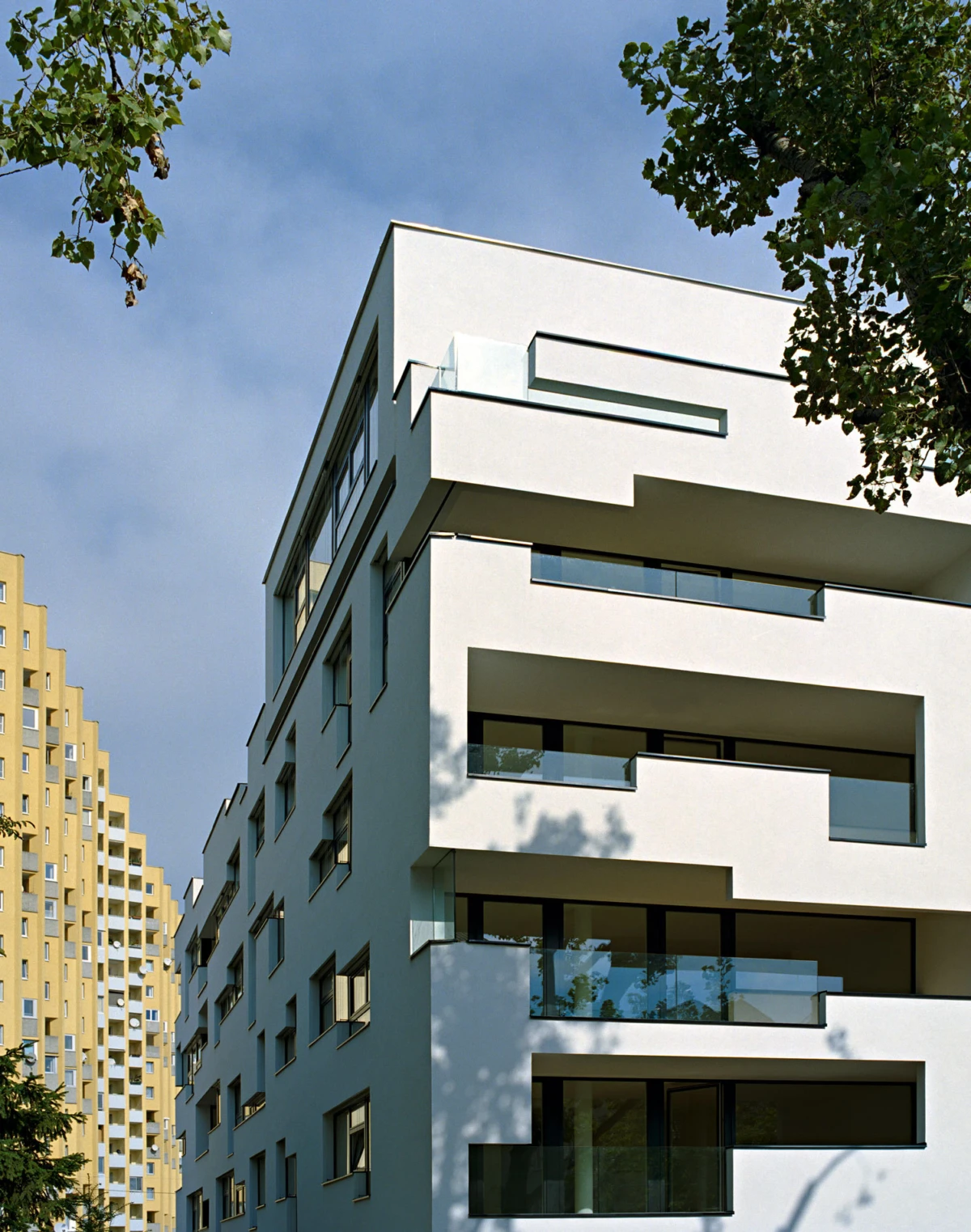

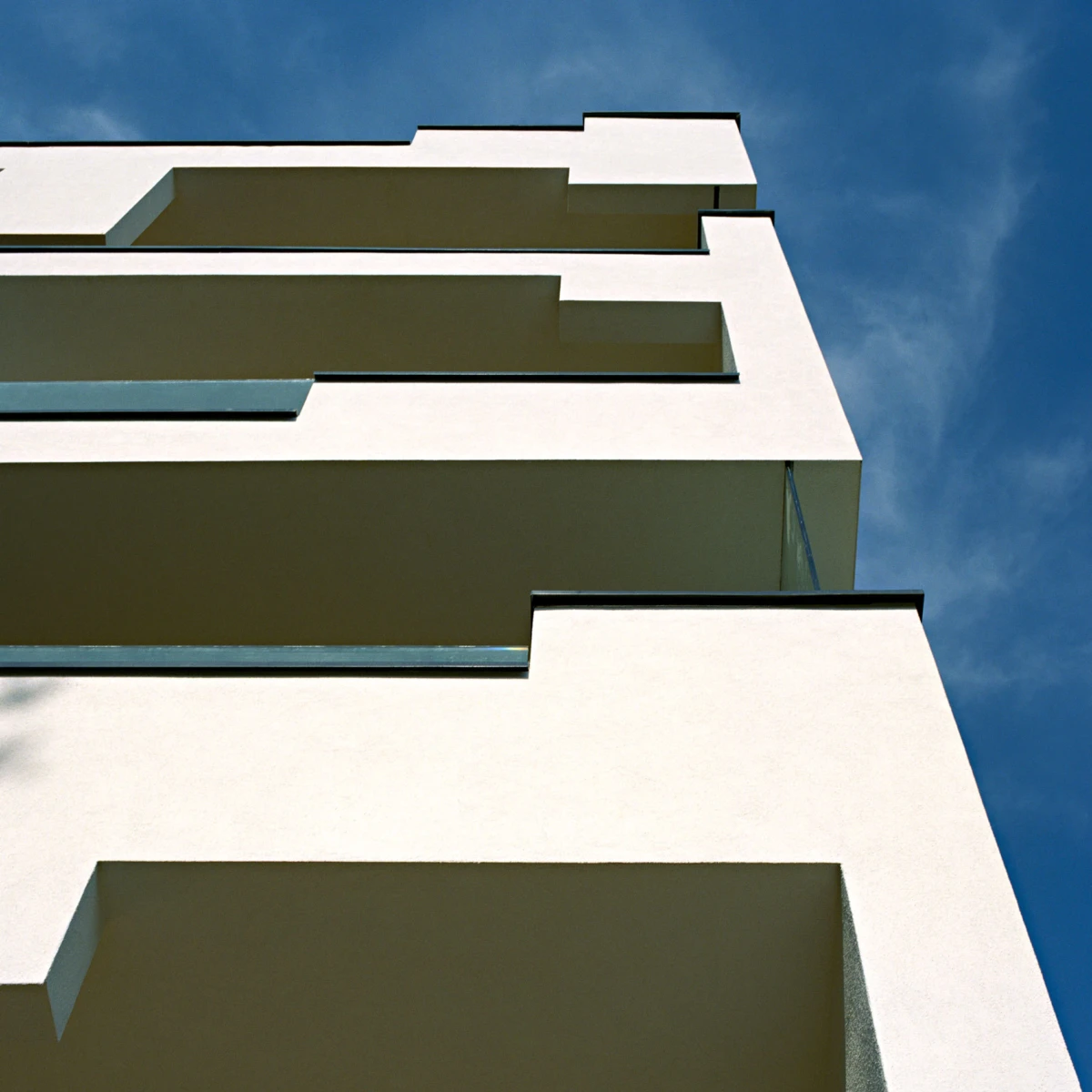

Open loggias as well as the generously laid out ground plan characterise the building. In order to increase the unit’s plasticity the gutter line is partially raised by means of bays and dormers. A fractal pattern of irregular window openings on both the southern and northern façades creates differing valences of the interior atmosphere and invokes different lines of vision and acts as a filter between interior and exterior. The façade thus becomes an identity forming graphical element and is a purely functional result from the very specific relationship between the apartments and their environment.

Address
Steigenteschgasse 26,
A-1220 Vienna

Start of planning
06/2003

Start of construction
02/2004

Completion
09/2006

Floor area
1.953 m²

Gross floor area
2.595 m²

Site area
883 m²

Built-up area
462 m²

Floors
6 (incl. ground - and top floor)

Number of Apartments
21

Budget
Total € 2.4 Million

Costs/m²
(floor area apartments)
€ 230.- /m²

Project Manager
Dietmar Feistel

Team
Burkhard Floors

CONSUNTANTS
Structural Engineering
DI Ewald Pachler,
Vienna, Austria

HVAC
Ernst Haustechnik
GesmbH & CO KG,
Olbendorf, Austria

Electrical Engineering
Ing. Michael Künzl –
Elektroplanung GmbH,
Perchtoldsdorf, Austria

Building Physics
DI Hans J. Dworak,
Vienna, Austria

Client
Neues Leben
Gemeinnützige Bau-,
Wohn- und Siedlungsgenossenschaft
Reg. Gen.m.b.H.
Troststraße 108, A-1100 Vienna

General contractor
Voitl & CO Baugesellschaft
mbH, Vienna, Austria
www.voitl.at

Photographer
Hertha Hurnaus

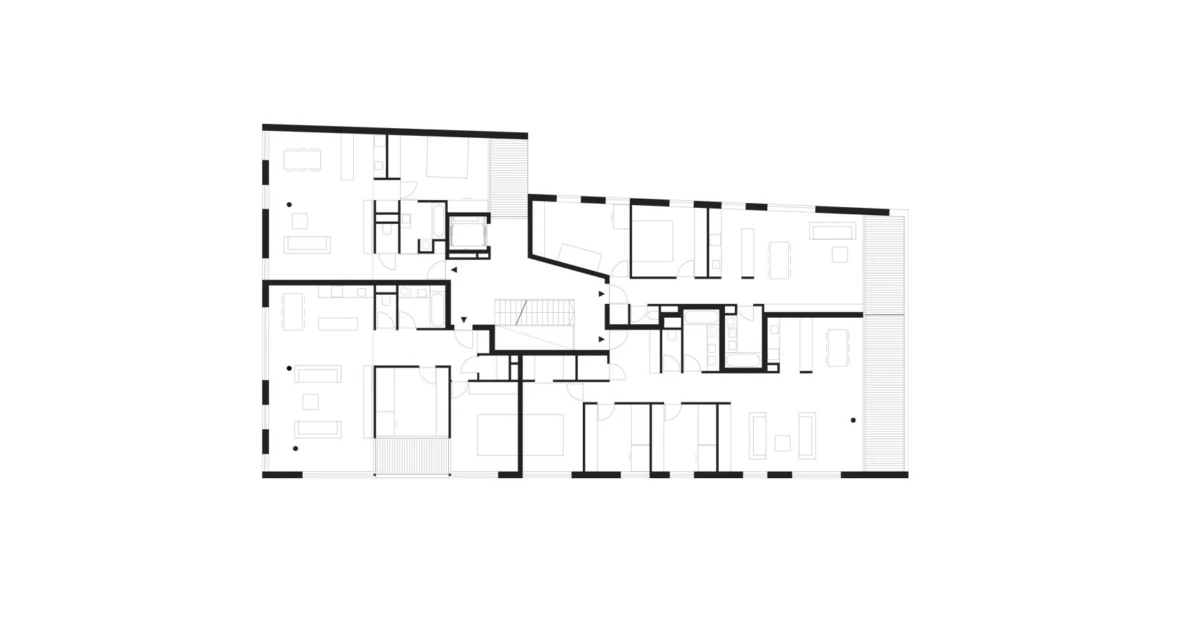

Plan level standard

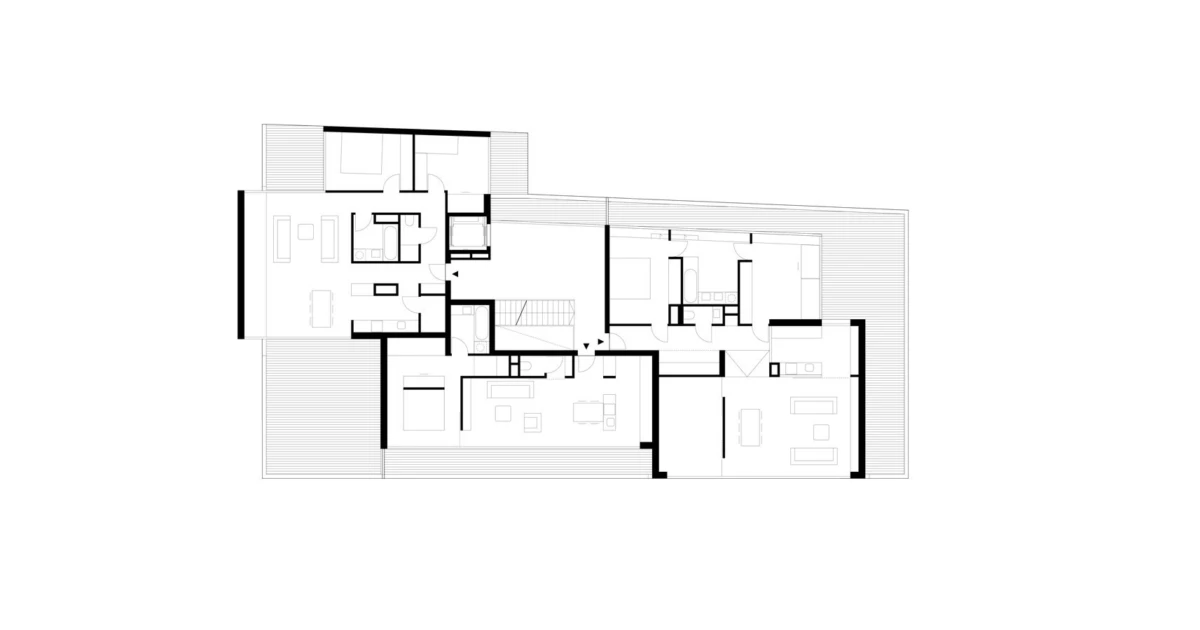

Level roof top

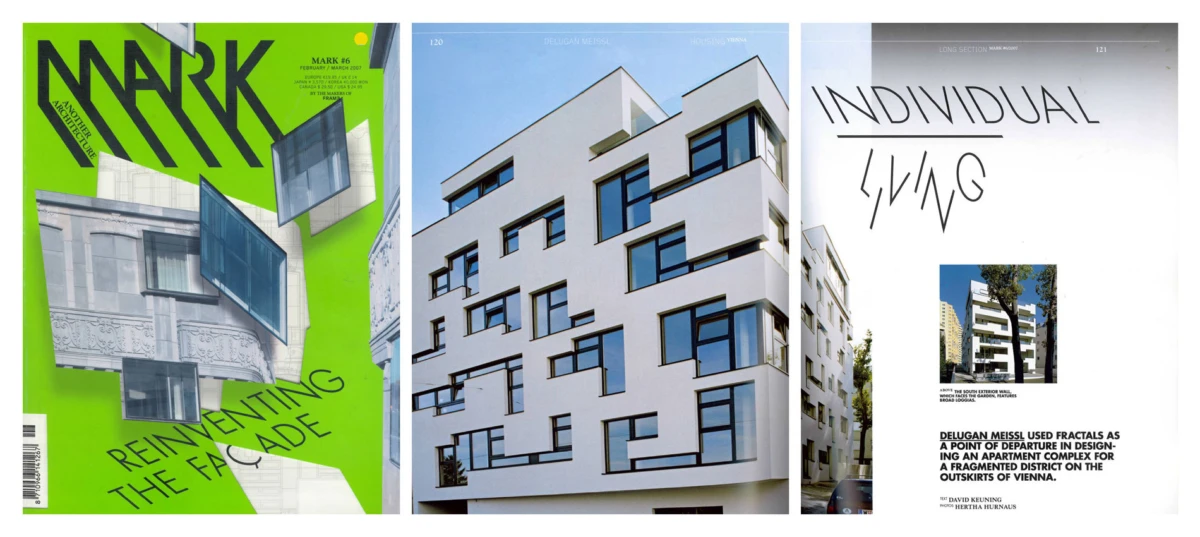

Mark Magazin
