VIENNA TWENTYTWO
Austria
  • High-Rise
  • Mixed Use
  • Under Construction

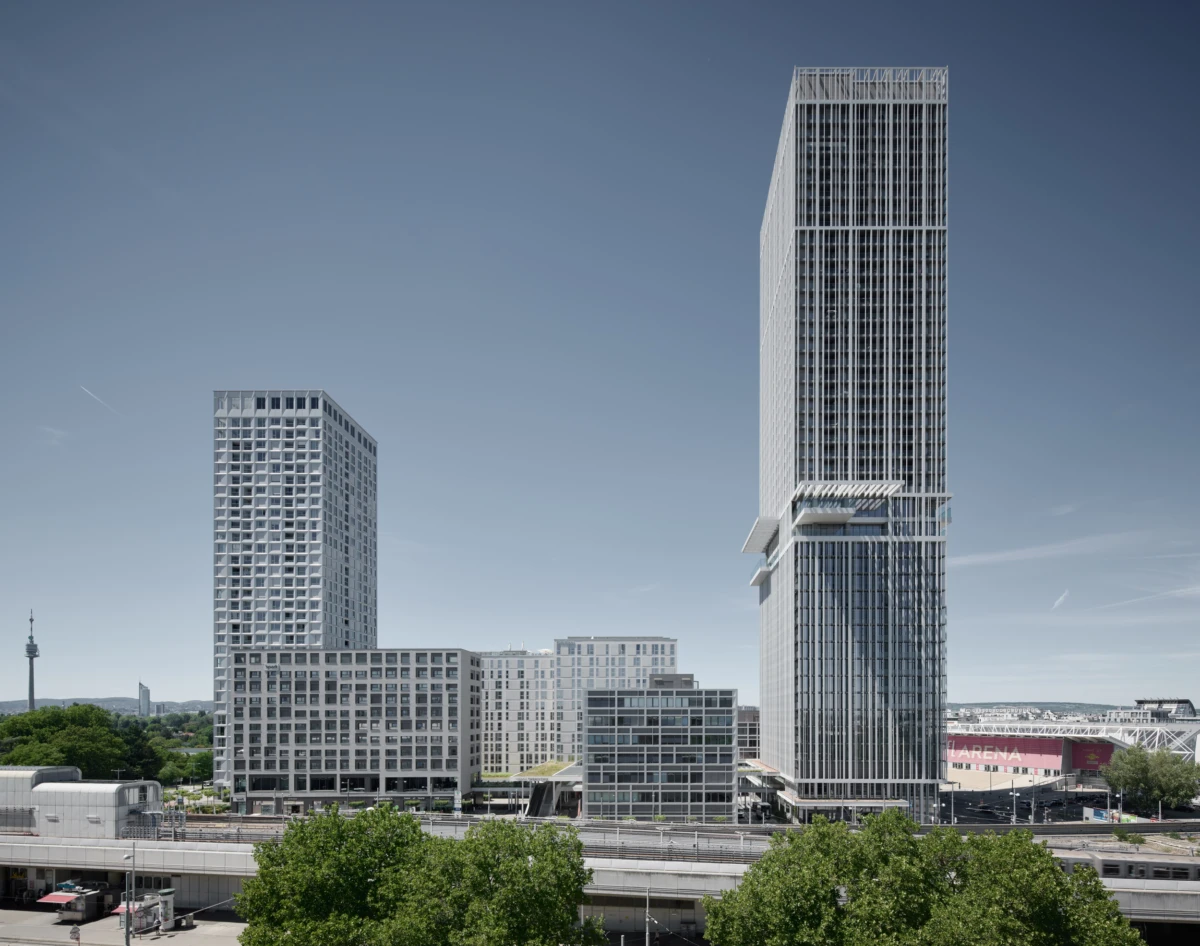

The name of this urban quarter is a reference to its location on the north-eastern edge of Vienna. The project, which is based on a competition-winning scheme, is a dense ensemble of six buildings, including two towers that accentuate the site at its northern and southern edges. The spatial positioning and volumetric development of the individual buildings is based on the principle of self-similarity, which lends the complex a sense of organically developed urban fabric, despite its peripheral location.

The multi-use and multi-storey base zone exemplifies the concept of the horizontal and vertical organisation of public, semi-public and use-specific spaces as a balanced interaction between urban flair and autonomous functionality.

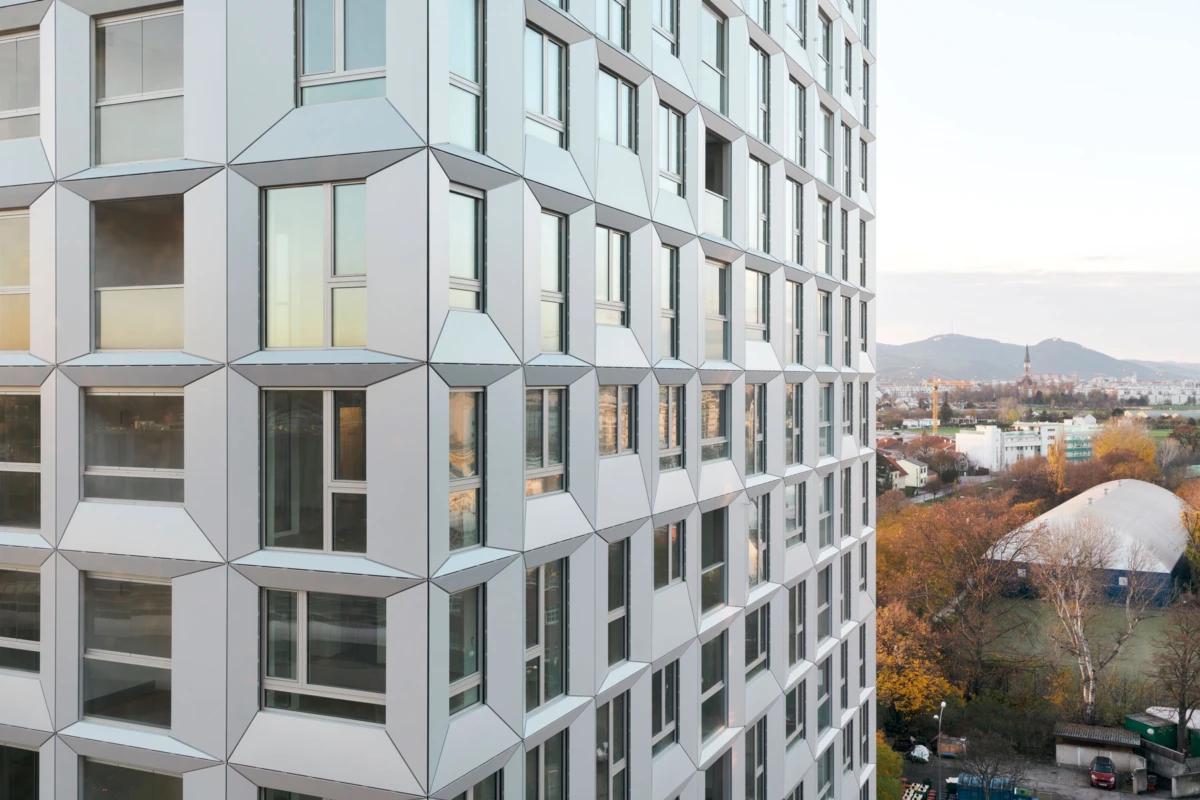

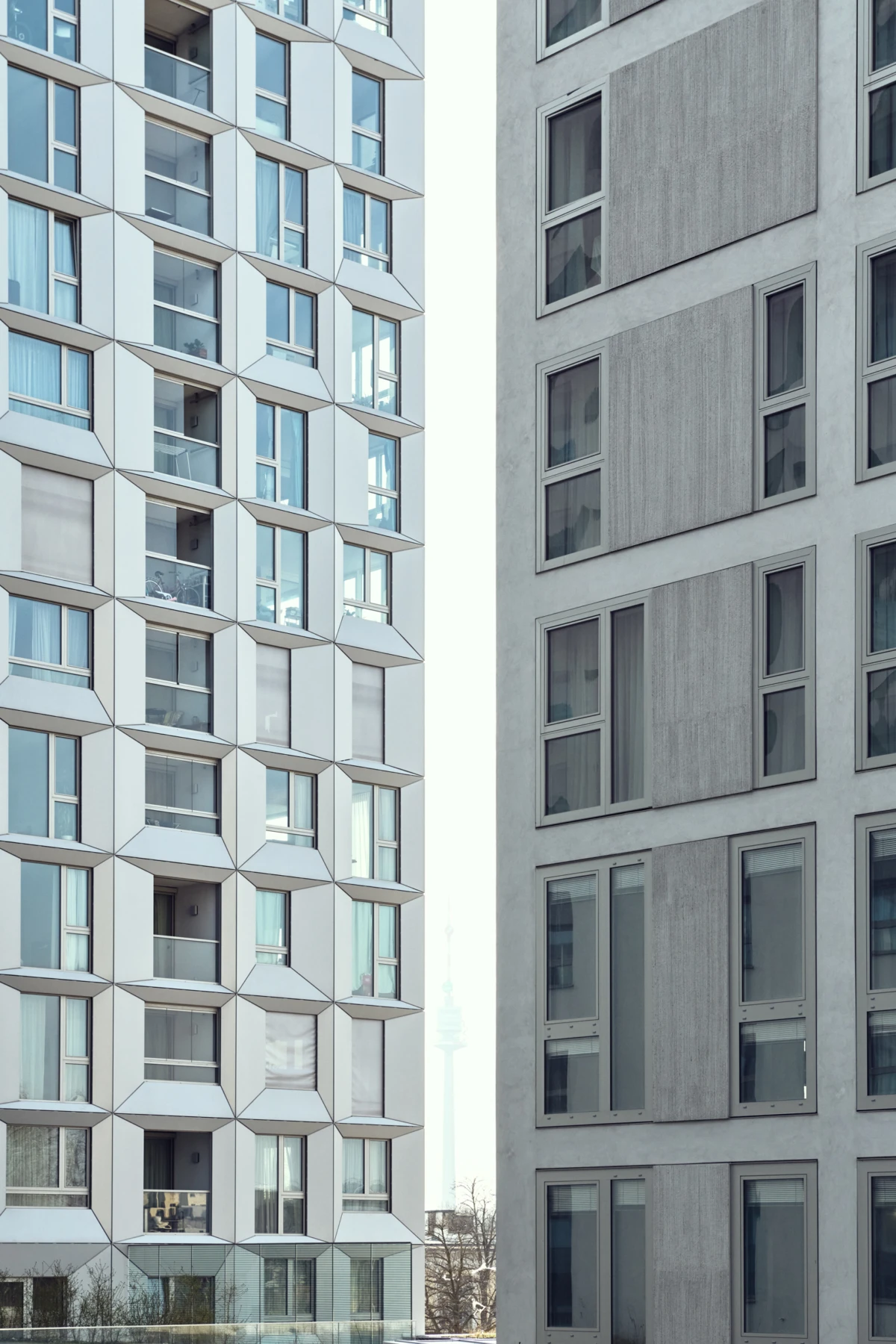

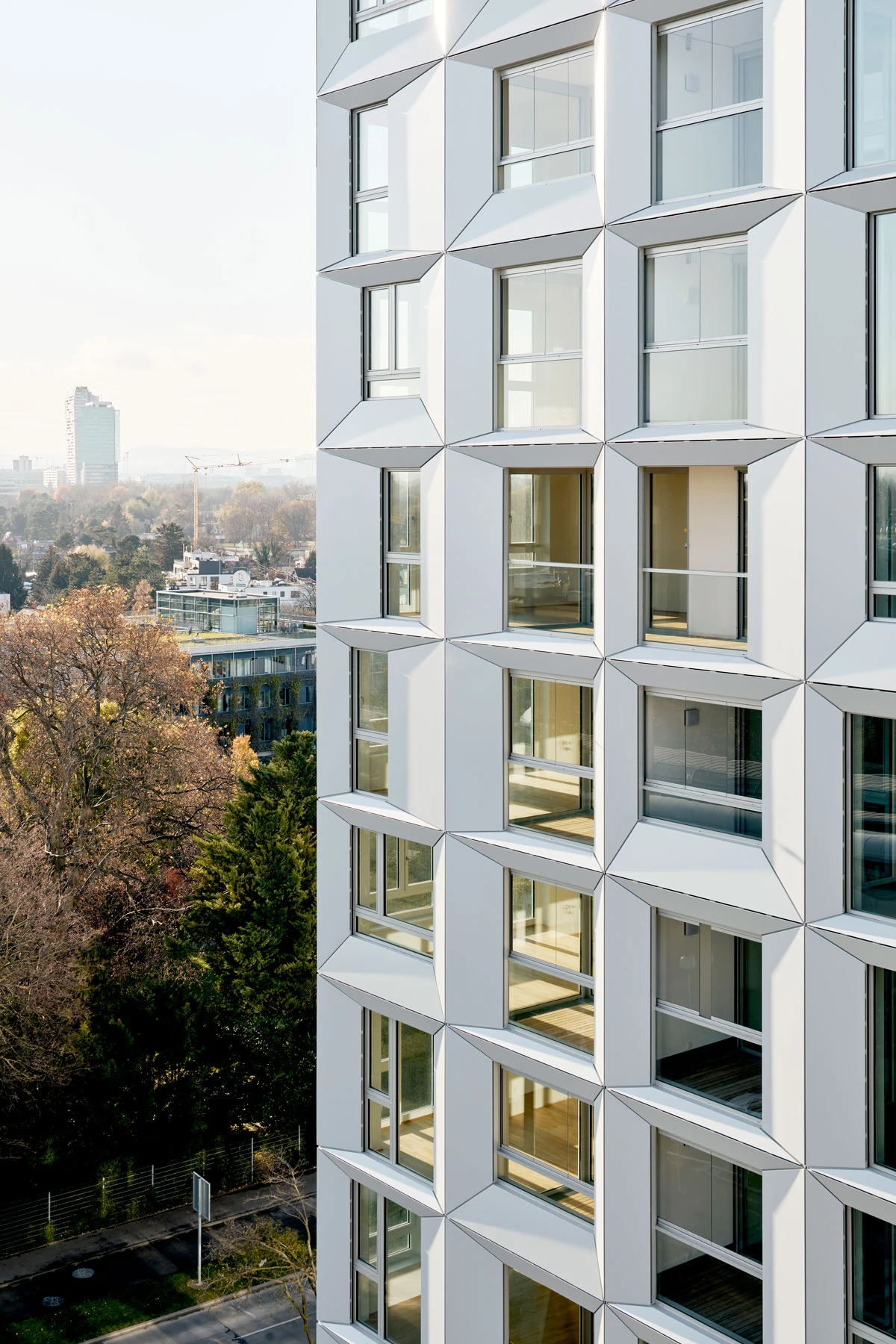

At first glance, the aesthetic individuality of the various buildings is drawn from their differing heights and the sculptural design of their façades, whose differentiated transparency and changing relationship between open and closed surfaces contribute to their characteristic appearance. In addition to this, the palette of finely varying shades of grey subtly suggests the visual analogy of a homogeneous structure.

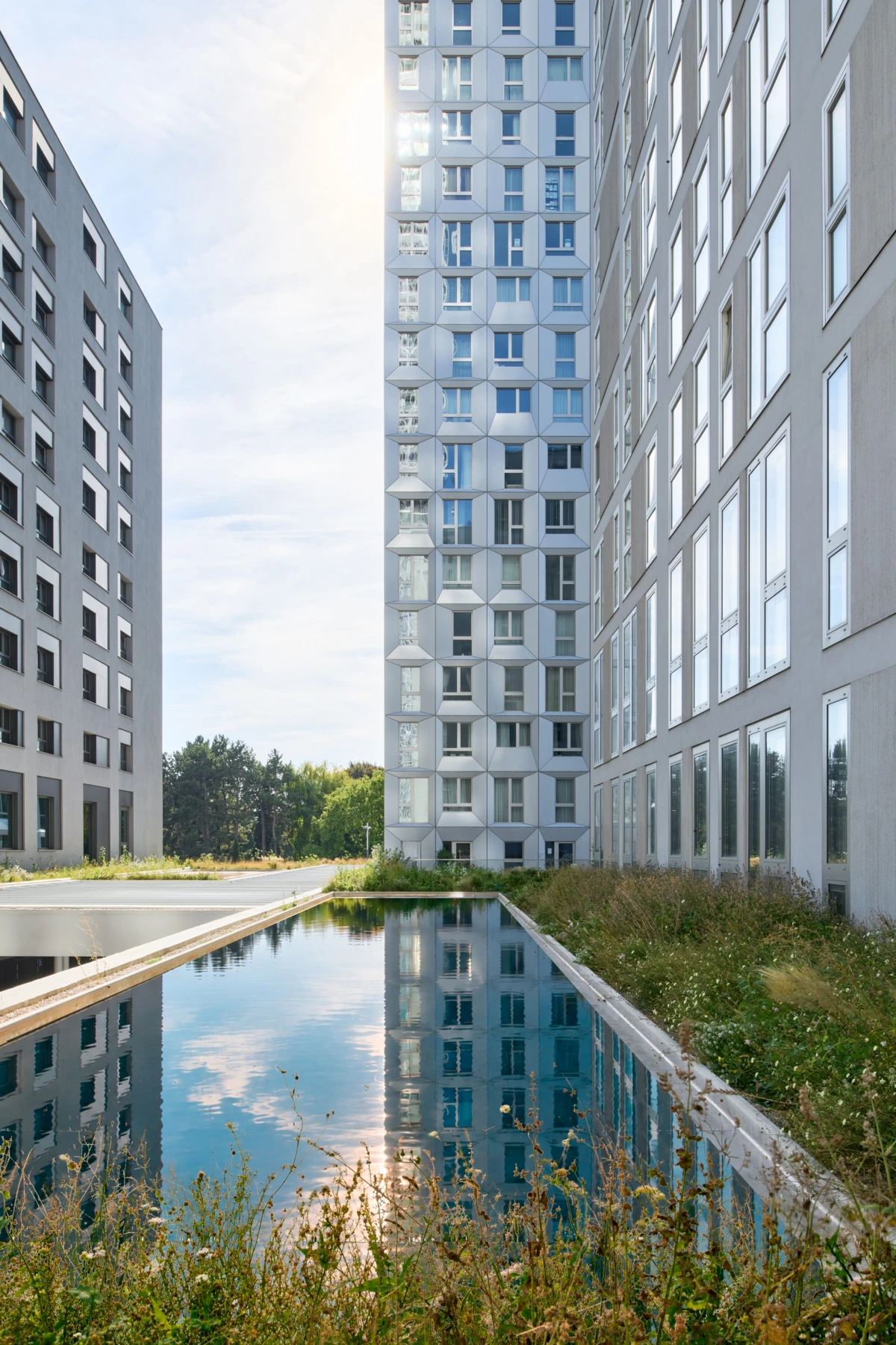

The partly covered and richly planted external areas, which move between the buildings at various levels, offer the integrating qualities of a high-grade connecting and communication zone and lots of space for chilling out, while also providing clear orientation and generously lit ground floor spaces, despite the densely interweaving circulation routes.

The high density and the wide range of uses, combined with the local shops and restaurants, contribute to the dynamic diversity of an autonomous urban quarter that, also due to the public facilities that it will contain, will become a location that lends a strong sense of identity to the 22nd District.


Address
Adolf Schärf Platz
1220 Vienna, Austria

Competition
11/2010 [1st prize]

Start of planning
07/ 2012

Completion
2023

Floor area
92.109 m²

Gross floor area
116.547 m²

Volume
470.971 m³

Site area
12.044 m²

Built-up area
7.044 m²

Height
155 m

Number of Levels
43

Costs
€ 174 Million

Project Management
Bernd Heger,
Daniela Hensler

Project Team
Dagmar Schultes, Gregor Doblinger, Sebastian Michalski

Thomas Theilig, Eva Schrade, Christian Gross, Florian Schafschetzy, Michael Lohmann, Gilles Greis, Maria Priebe, Kristina Riche, Julia Oblitcova, Alex Pop, Jakub Tyc

Client / Awarding Body
ARE Austrian Real Estate

IN COOPERATION WITH
Vasko+Partner, Wien

CONSULTANTS

Structural Engineering;
HVACR, Cost management, Conveying systems, Building physic, Fire protection,
Implementation planning
Vasko+Partner Ing., Vienna

Façade
Dr. Pfeiler GmbH, Graz

Landscape
Burger Landschaftsarchitekten, Munich

Traffic planning
Traffix Verkehrsplanung
GmbH, Vienna

Renderings
k18

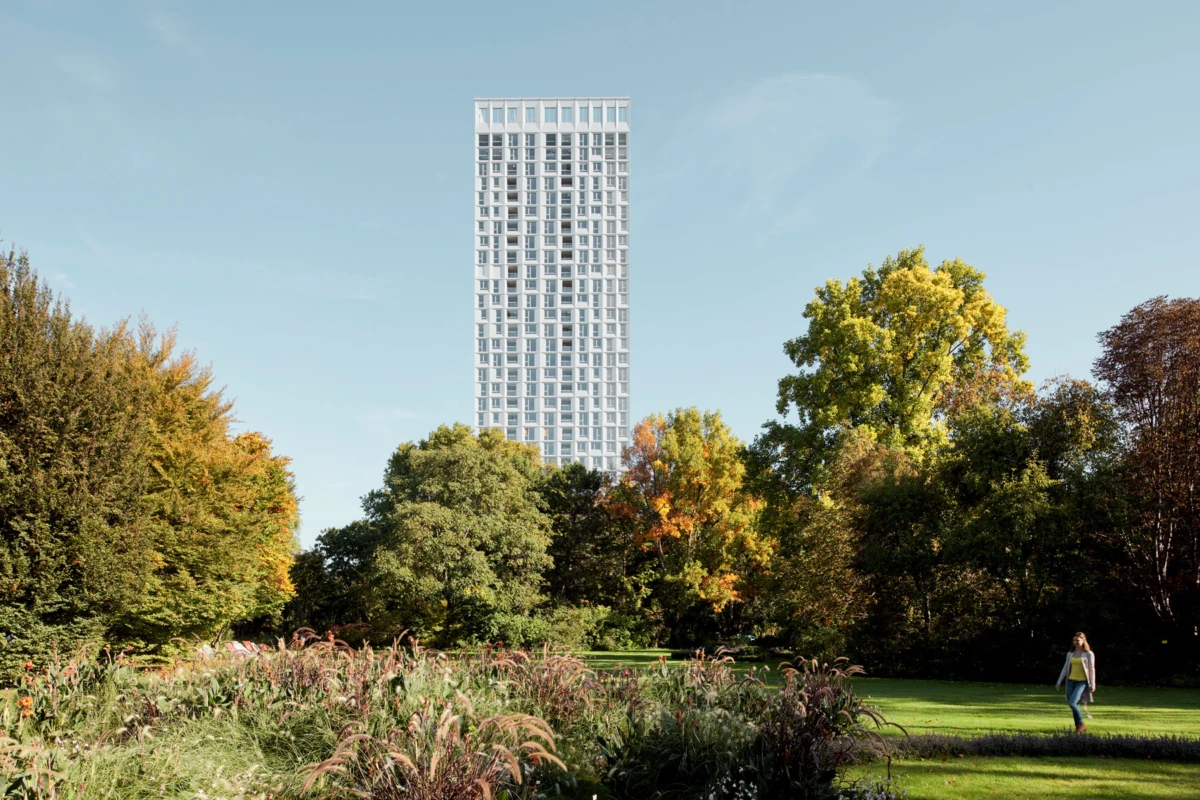

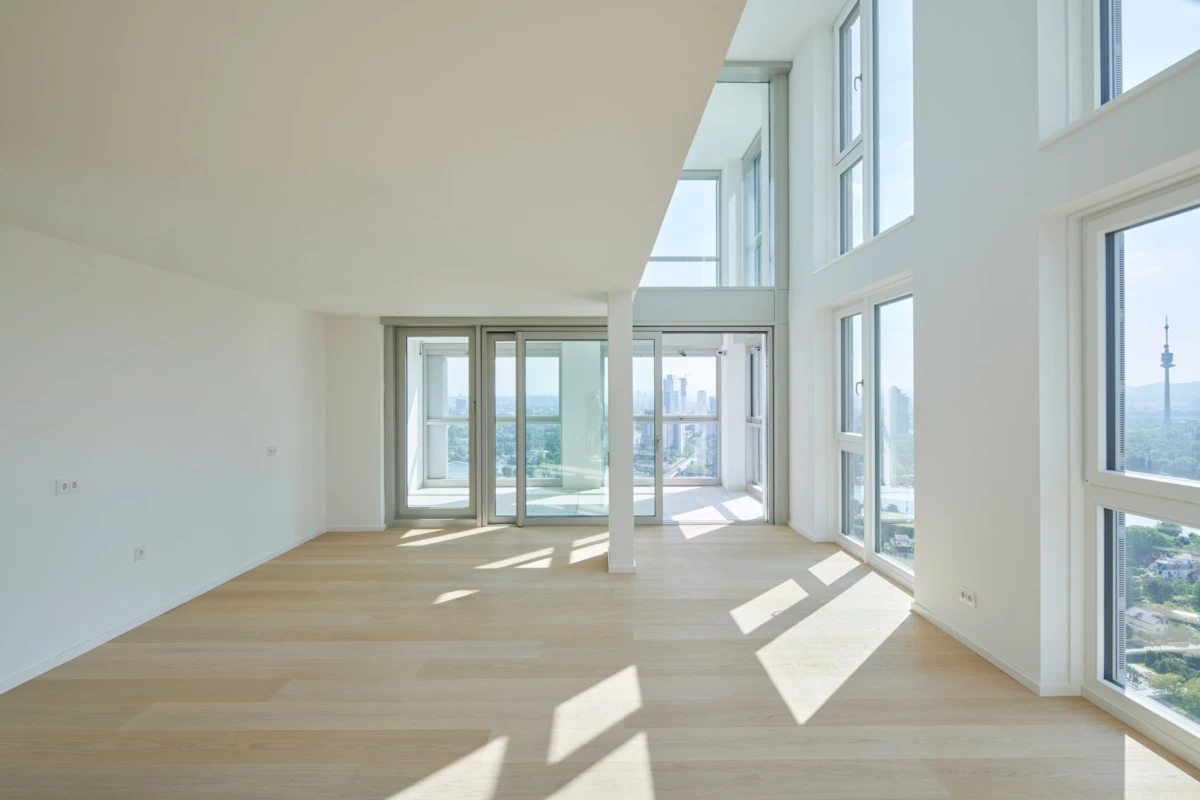

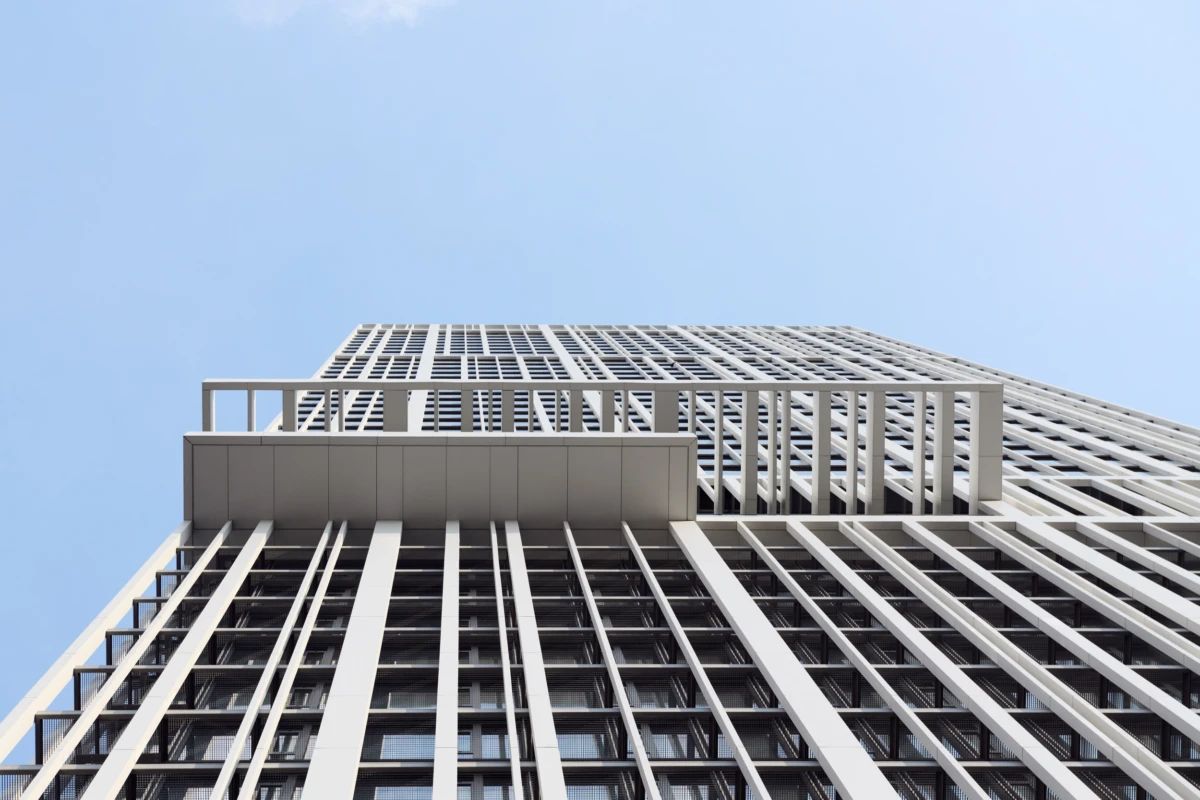

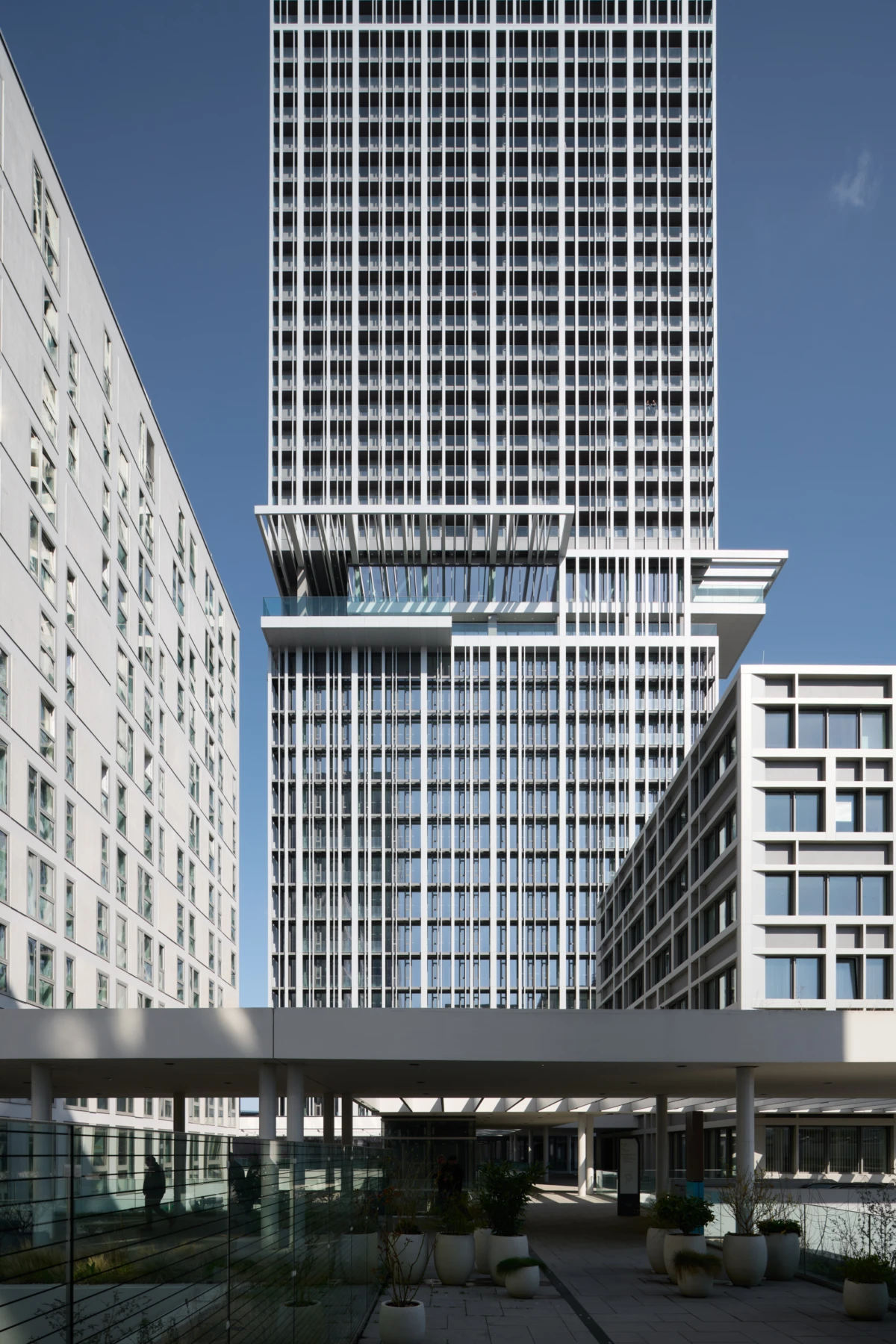

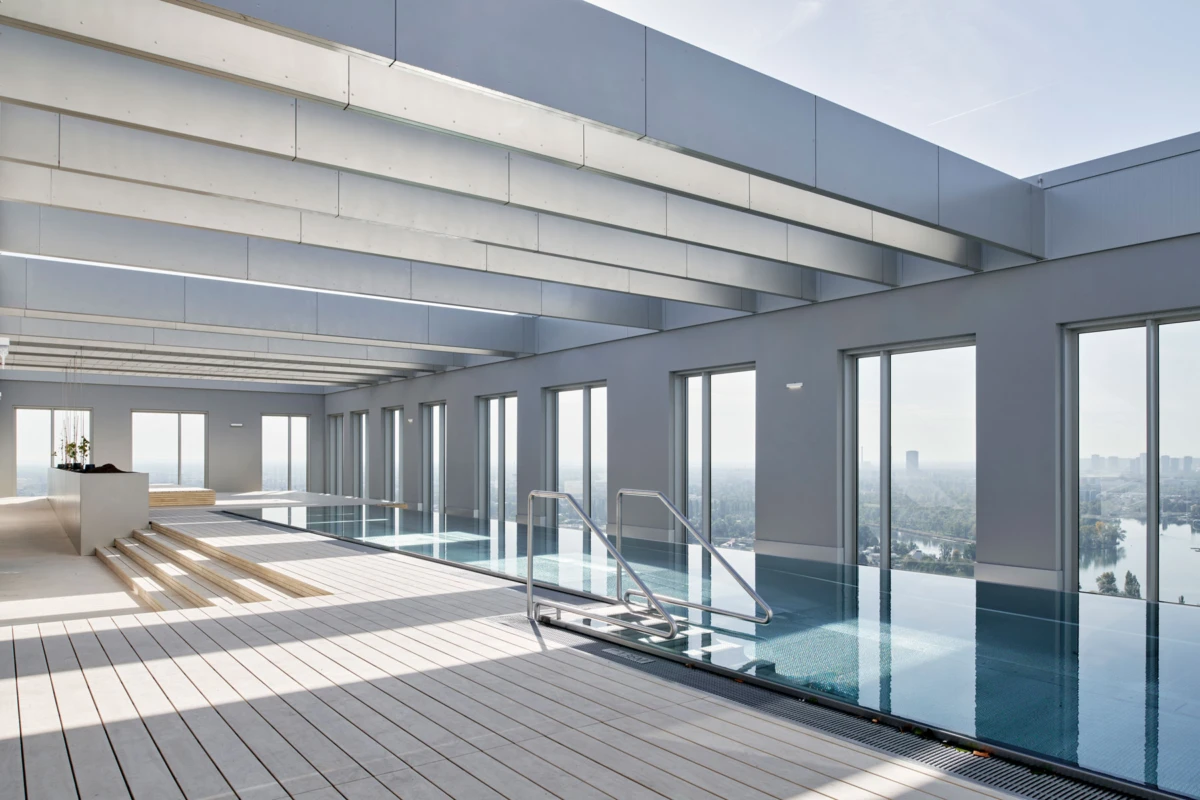

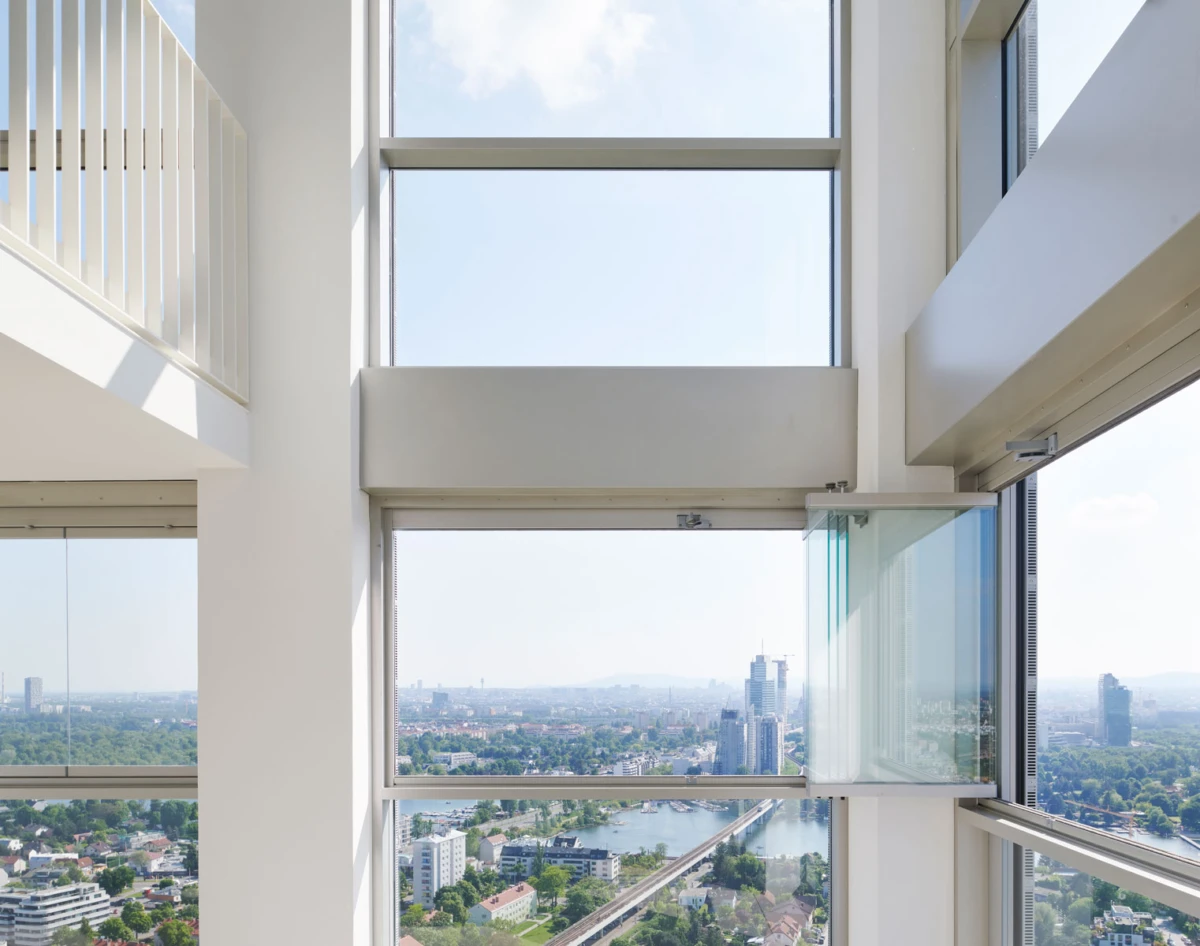

Photographer
Lukas Schaller

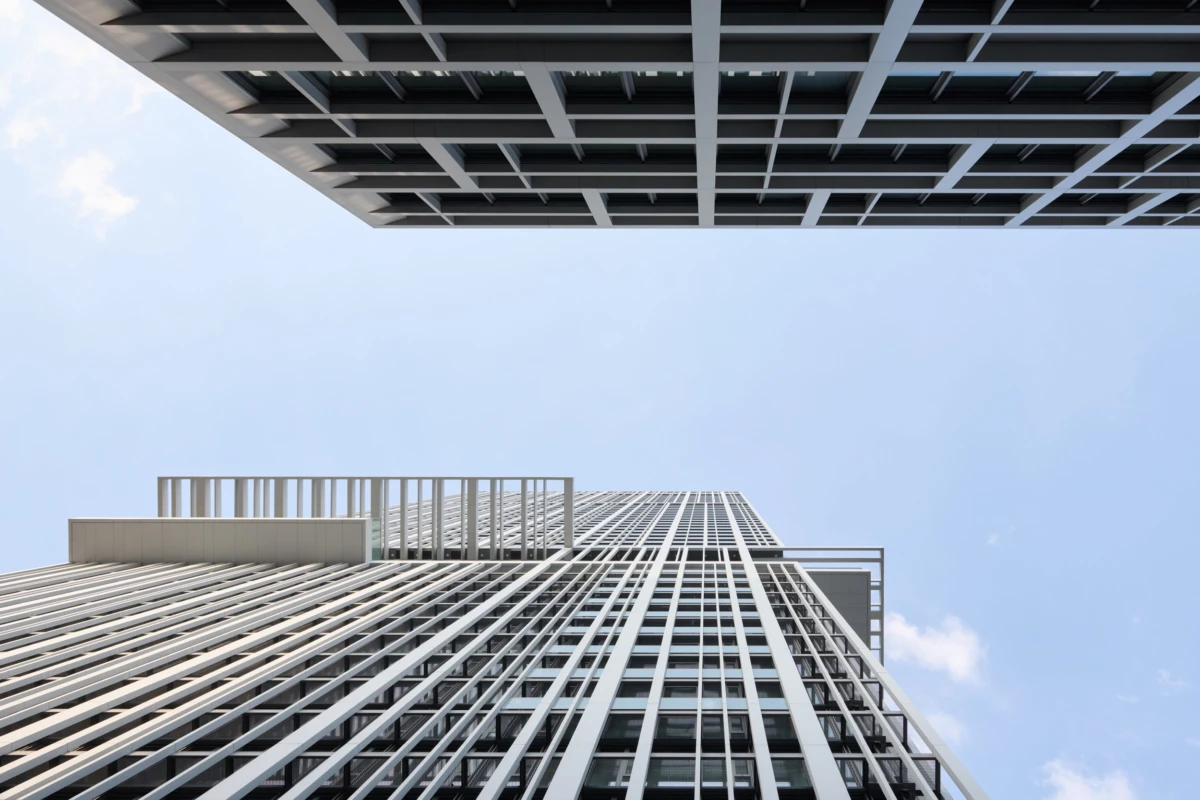

© Lukas Schaller

V22
Building Part 6

© SIGNA Stefan Seelig

© k18

© k18

V22
Building Part 1

© k18

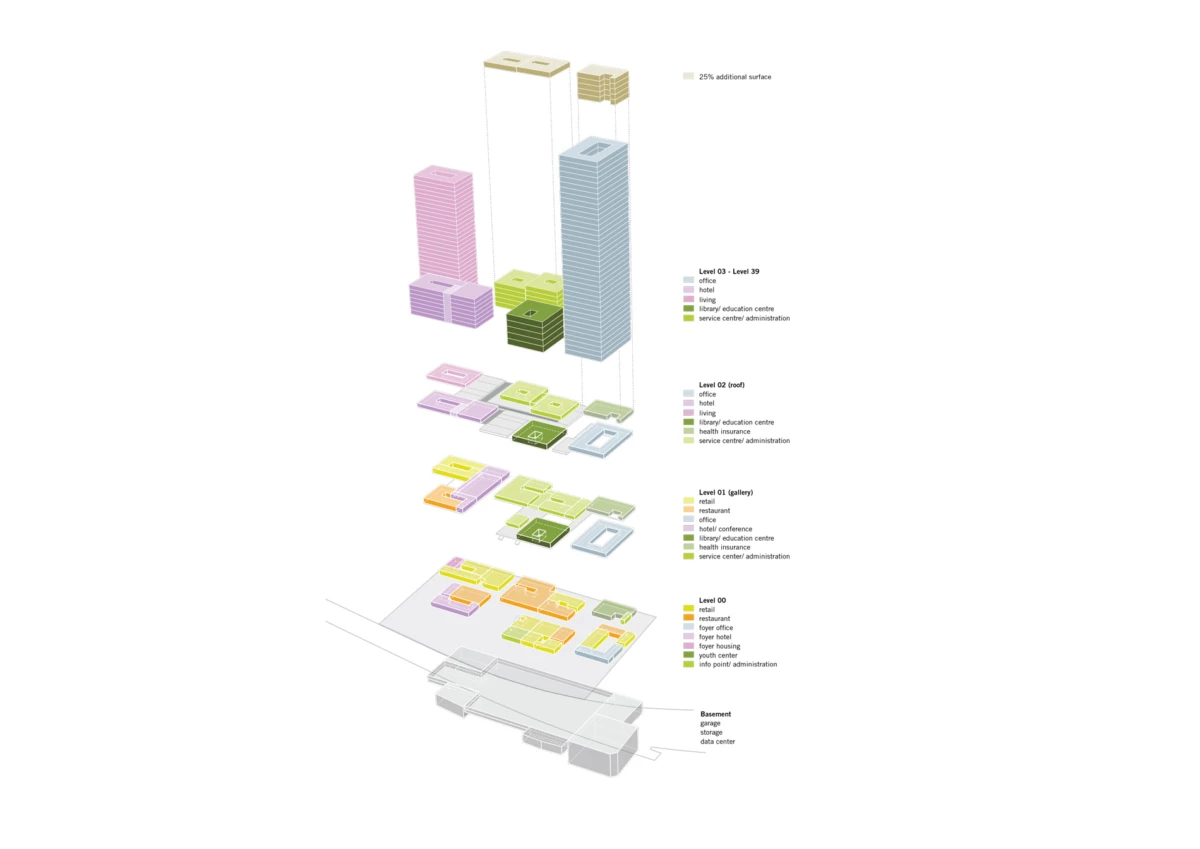

241 Vienna TWENTYTWO dm pikto functions

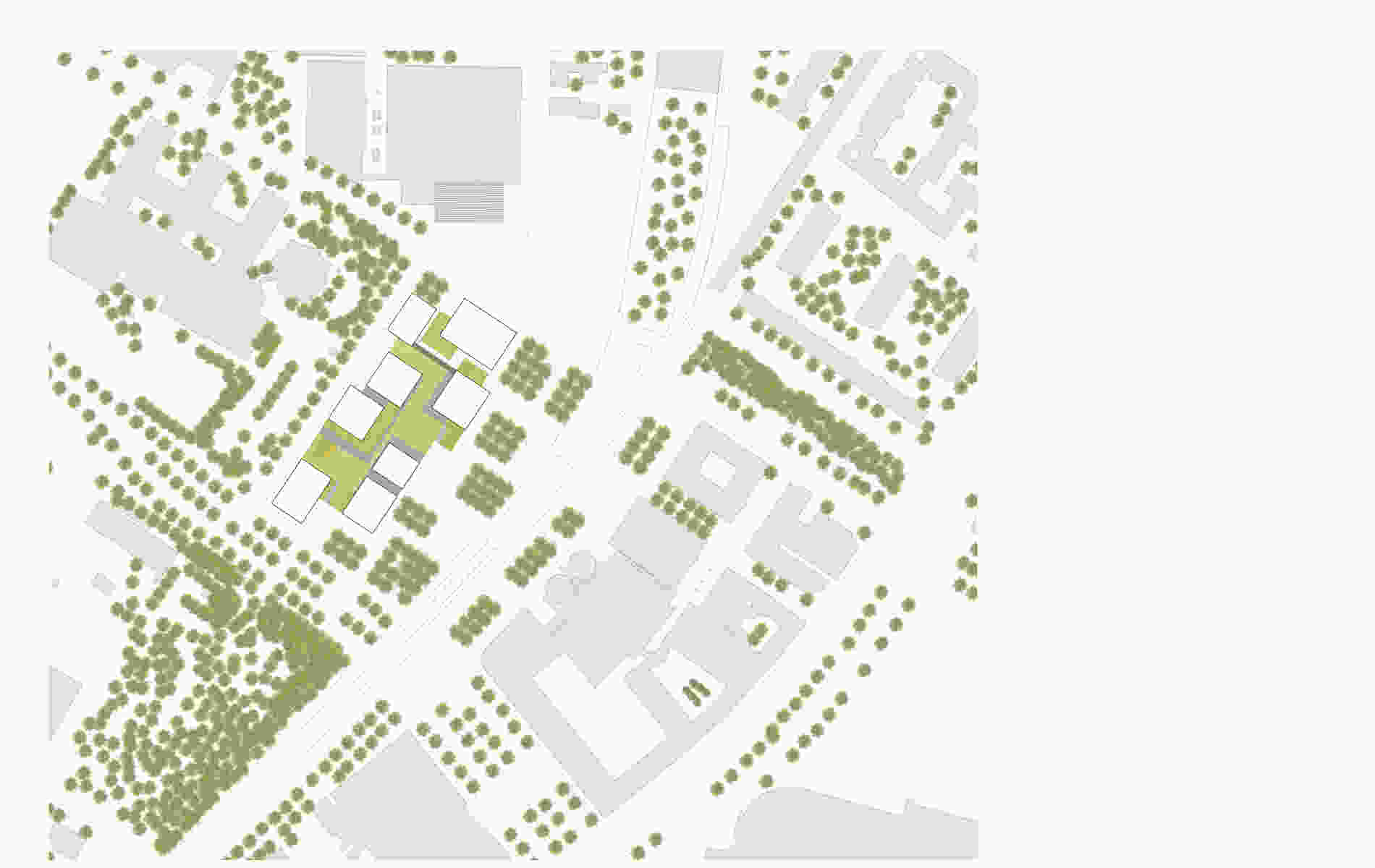

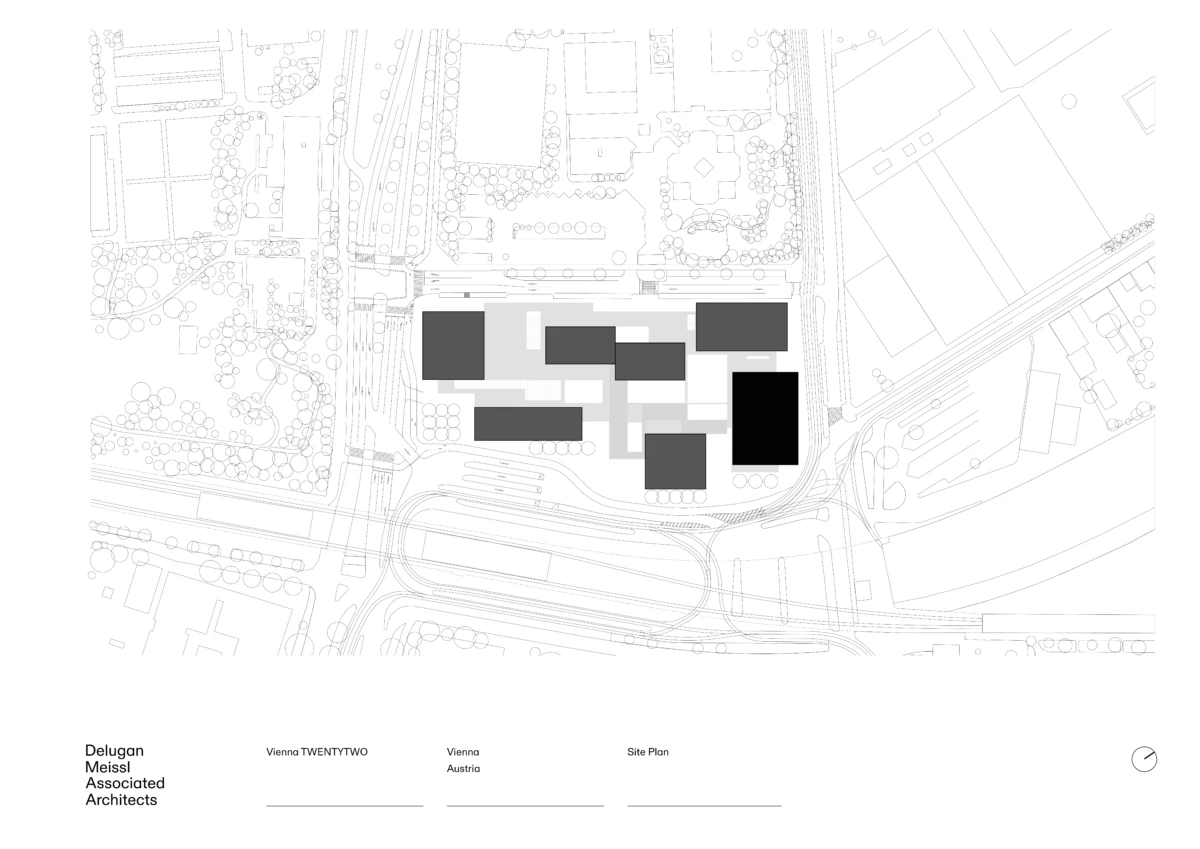

241 Vienna TWENTYTWO dm site plan

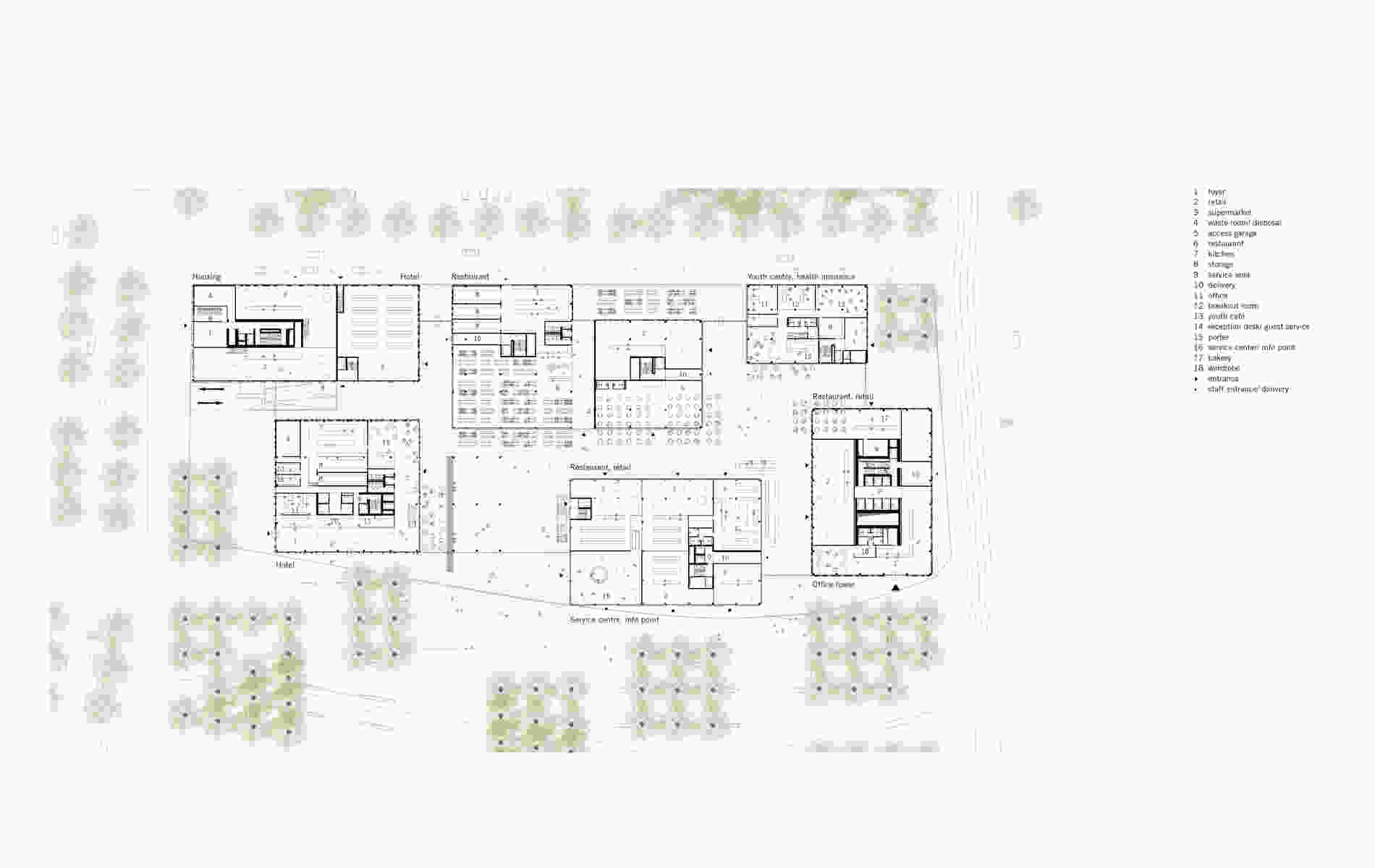

241 Vienna TWENTYTWO dm plan level 00

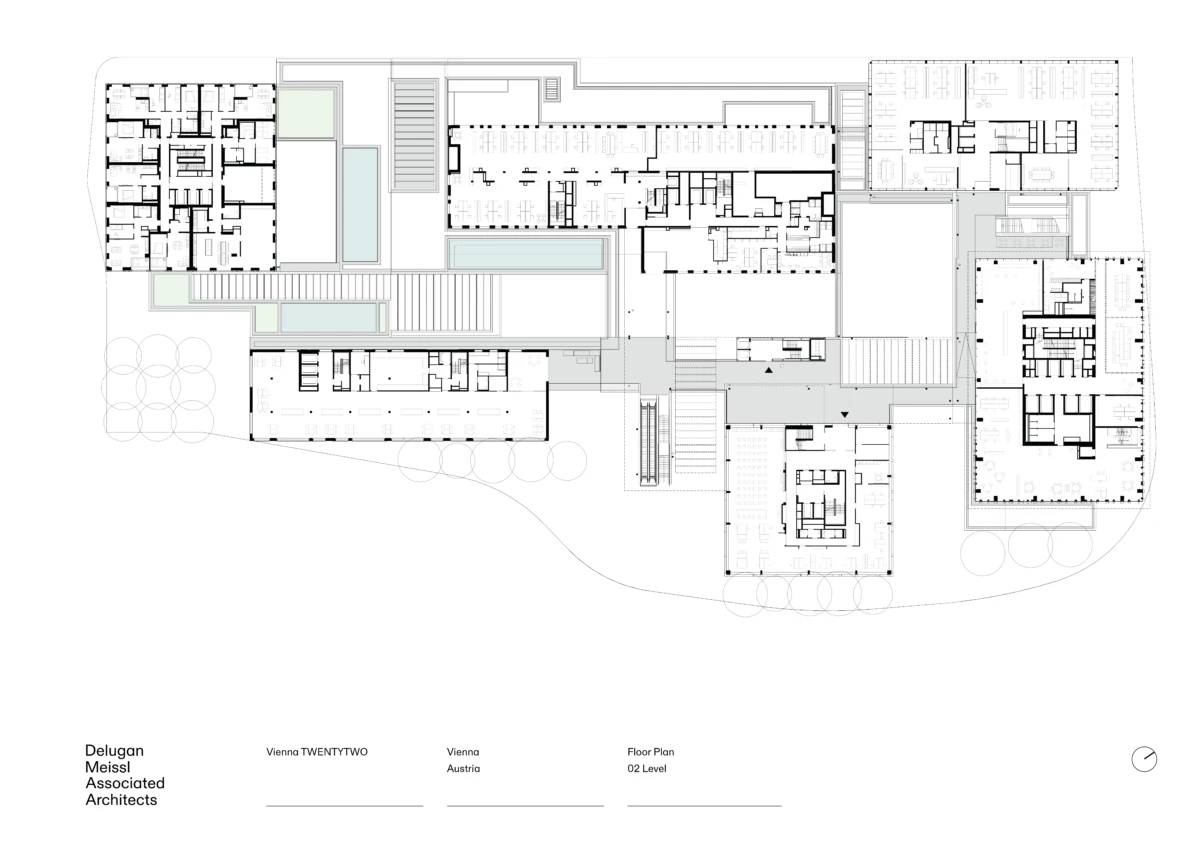

241 Vienna TWENTYTWO dm plan level 02

© k18

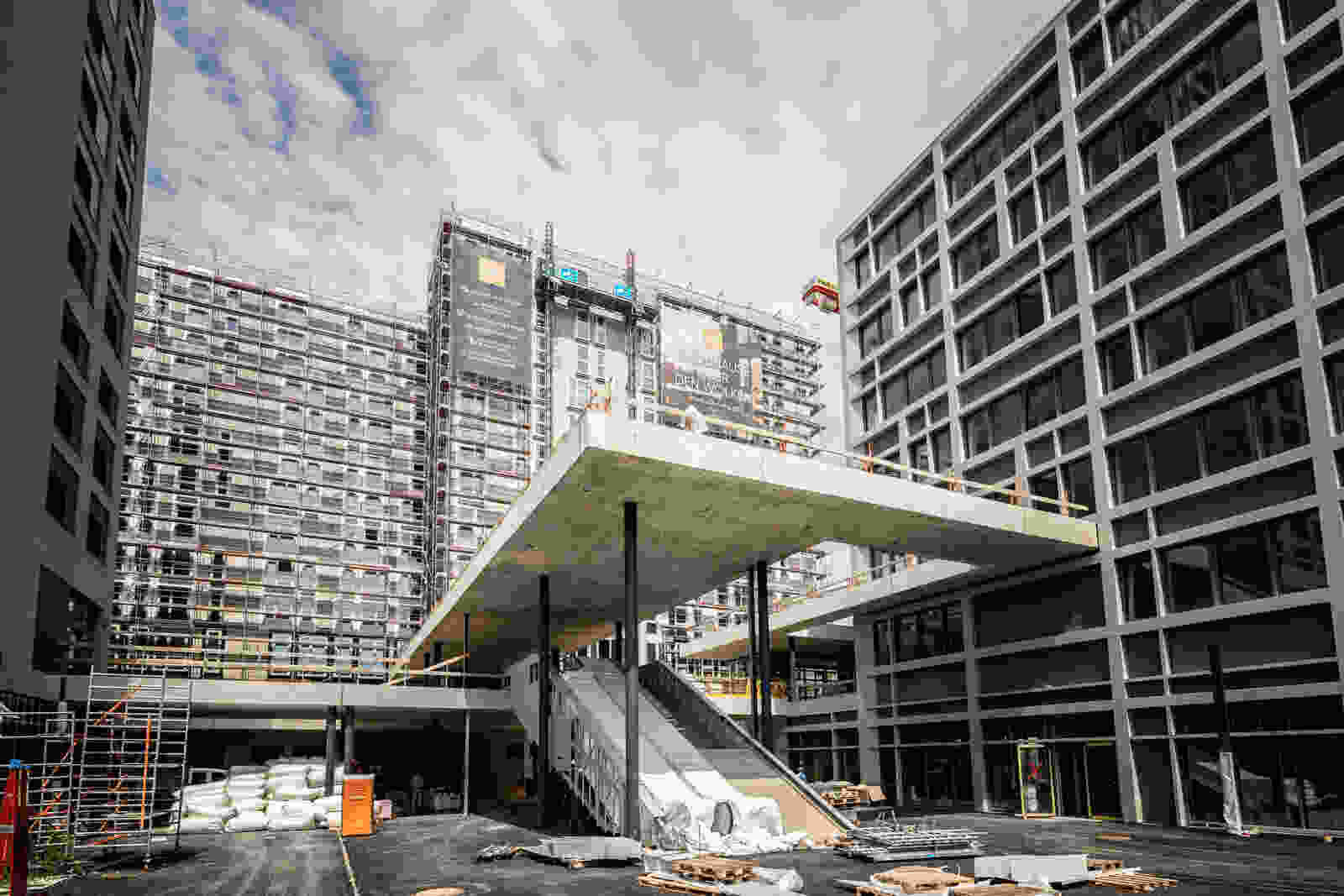

Construction
Site

Aug 2022

241 VIENNA TWENTYTWO 2019 07 24 Baustelle SIGNA ARE c Seelig 110

©ARE/ SIGNA Stefan Seelig

241 VIENNA TWENTYTWO 2019 09 25 Baustelle SIGNA ARE c Seelig 4
241 VIENNA TWENTYTWO 2019 09 25 Baustelle SIGNA ARE c Seelig 52

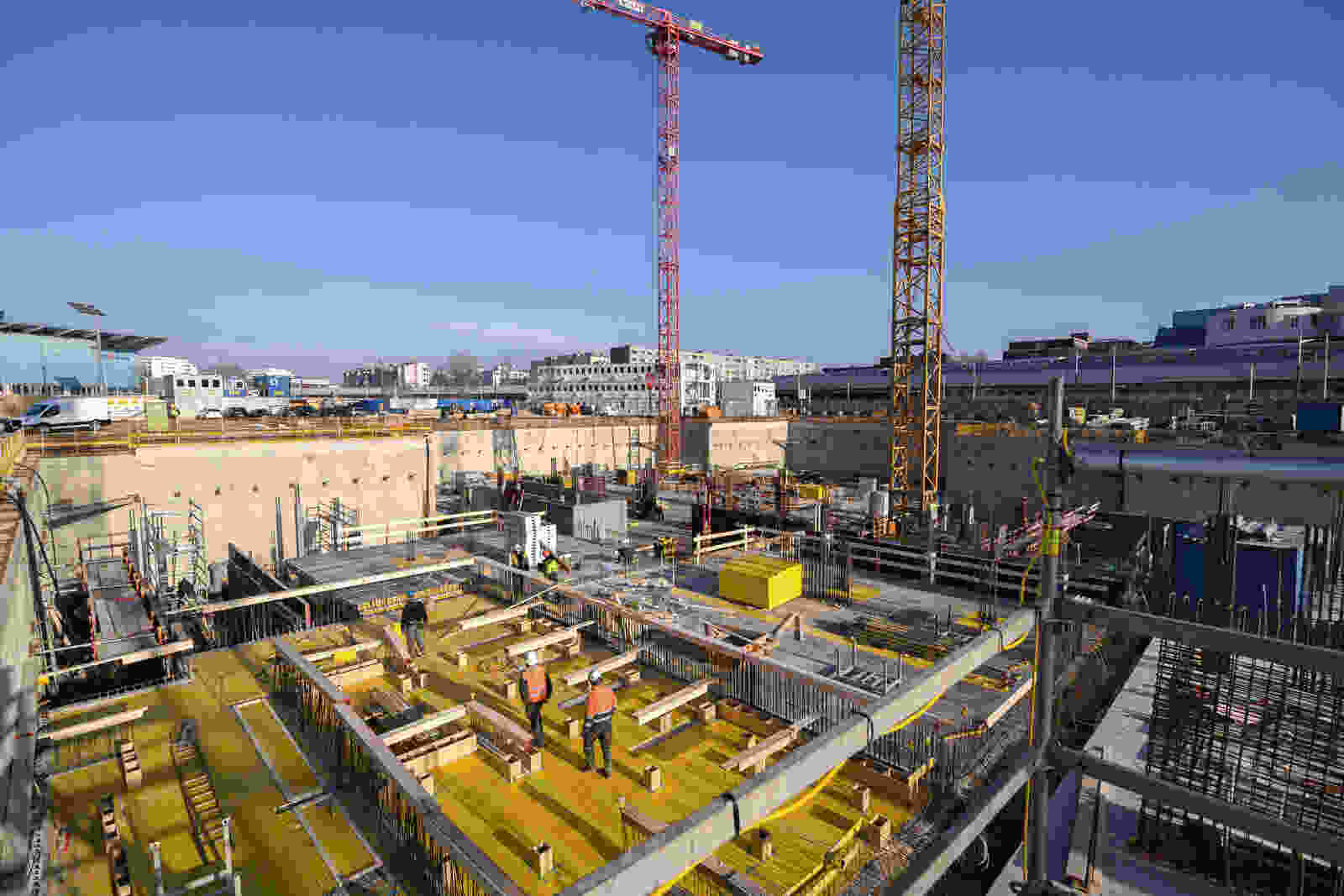

241 VIENNA TWENTYTWO 2020 01 22 Baustelle SIGNA ARE c Seelig 15
241 VIENNA TWENTYTWO 2020 06 18 Baustelle SIGNA ARE 111
241 VIENNA TWENTYTWO 2020 06 18 Baustelle SIGNA ARE 28
241 VIENNA TWENTYTWO 2020 09 30 Baustelle SIGNA ARE 103

ARE/ SIGNA Stefan Seelig

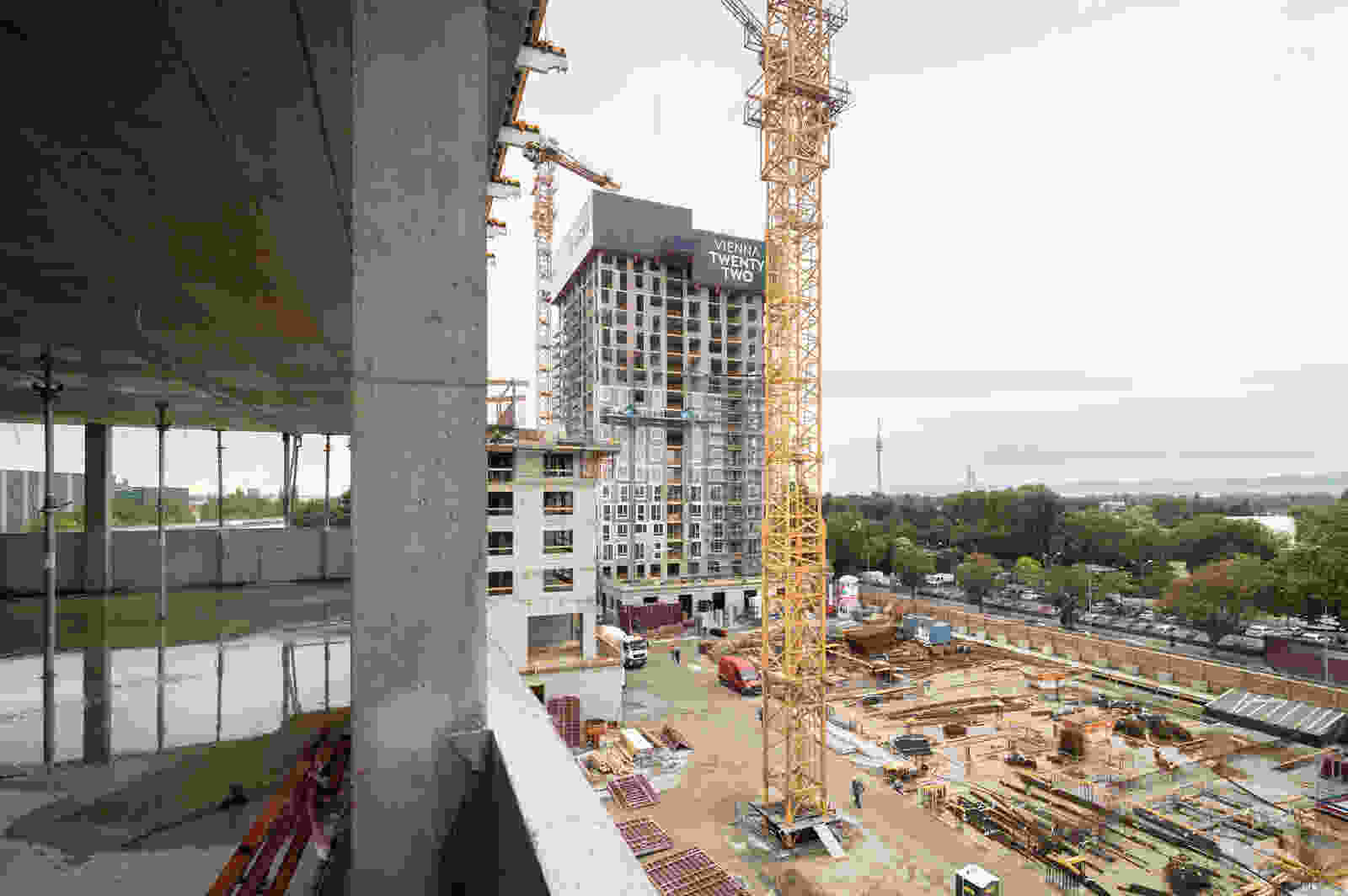

241 VIENNA TWENTYTWO 2020 09 30 Baustelle SIGNA ARE 16
241 VIENNA TWENTYTWO 2020 09 30 Baustelle SIGNA ARE 38

ARE/ SIGNA Stefan Seelig

241 DMAA VIENNA TWENTYTWO Baustelle SIGNA ARE c Seelig Stefan 57

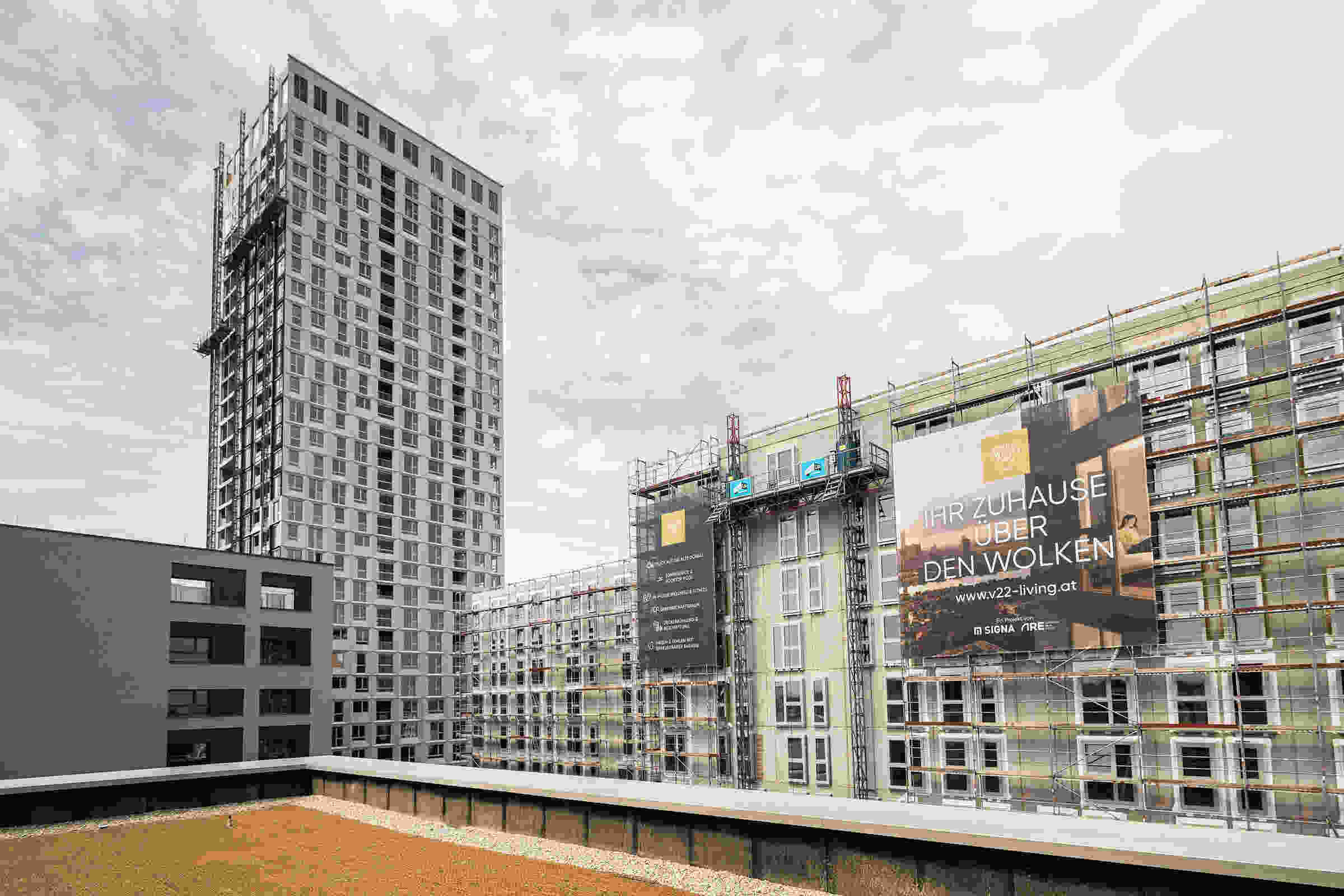

241 DMAA VIENNA TWENTYTWO Baustelle SIGNA ARE c Seelig Stefan 52

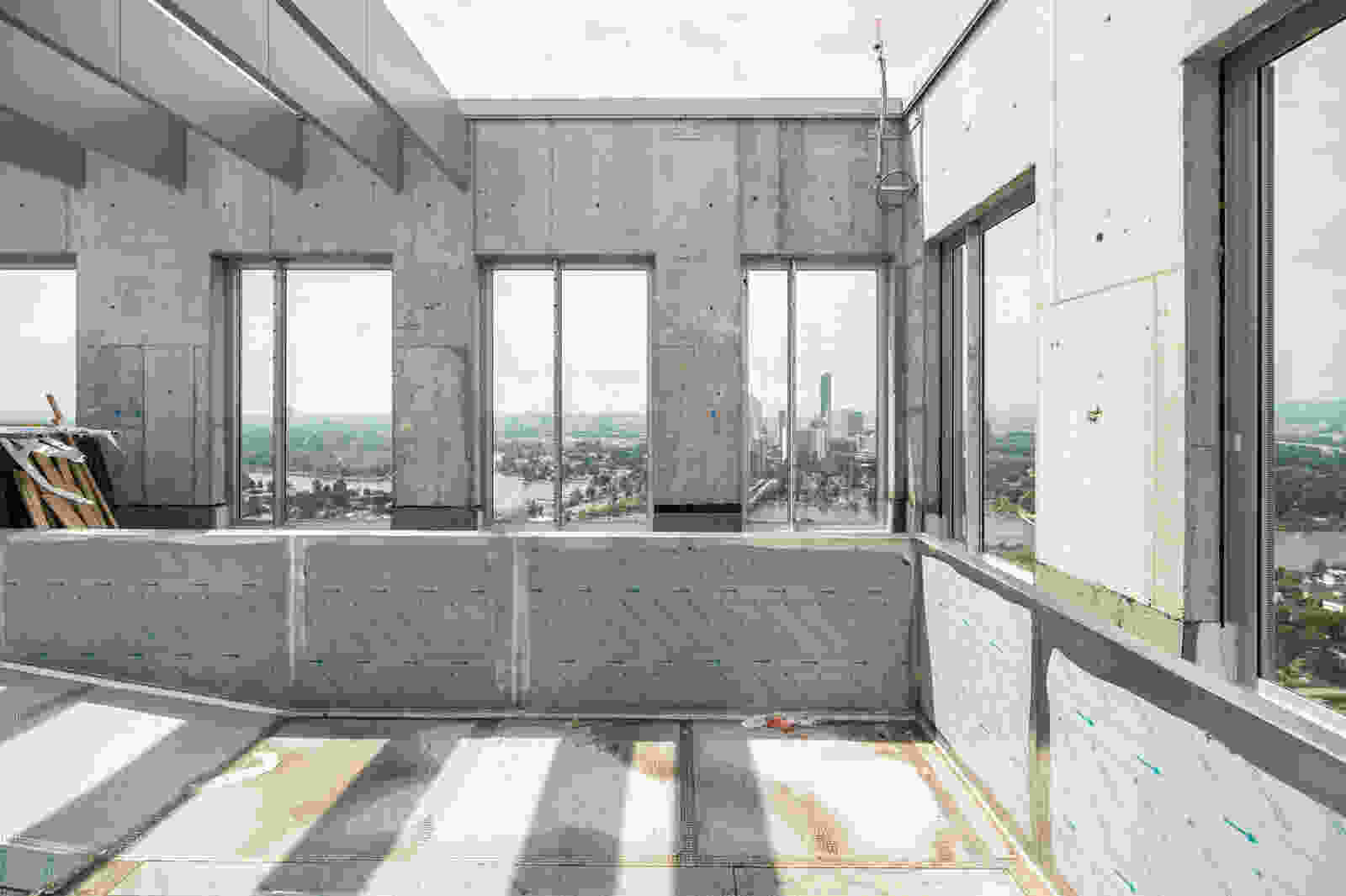

241 DMAA VIENNA TWENTYTWO Baustelle SIGNA ARE c Seelig Stefan 82

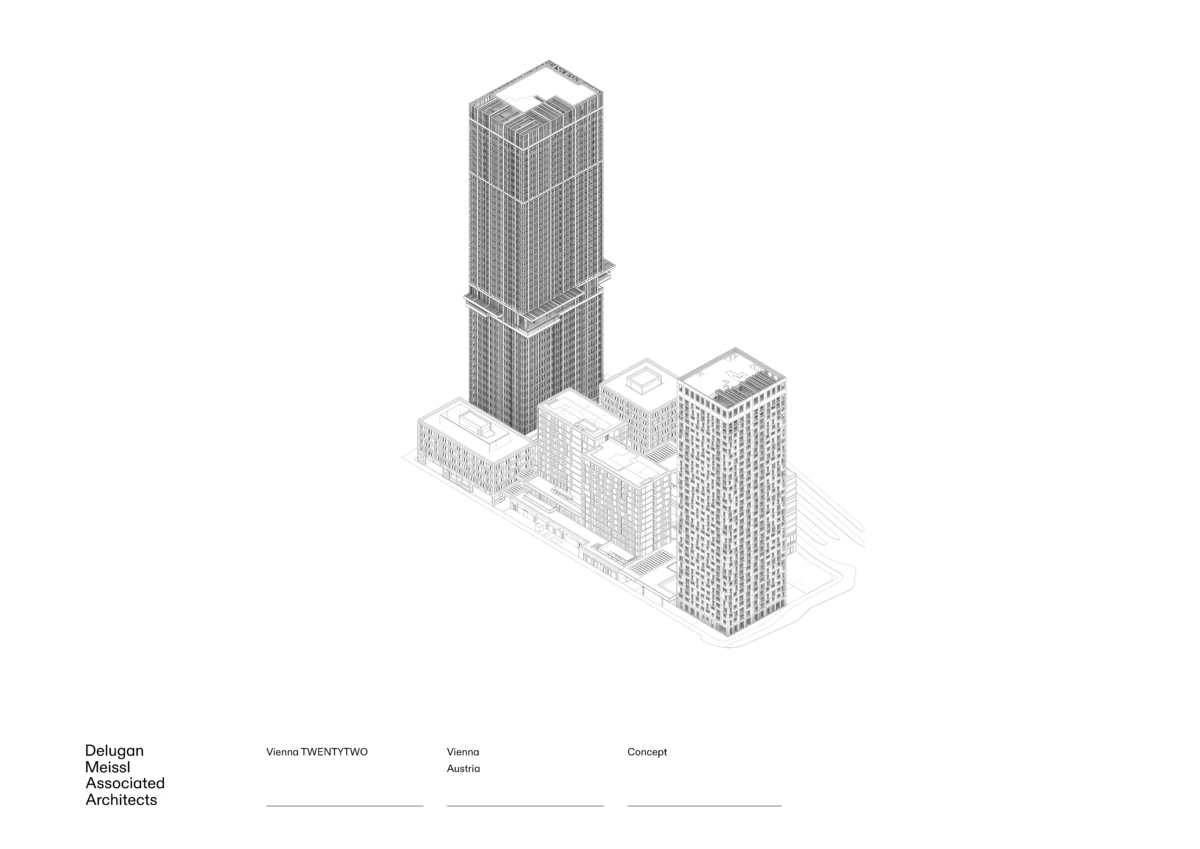

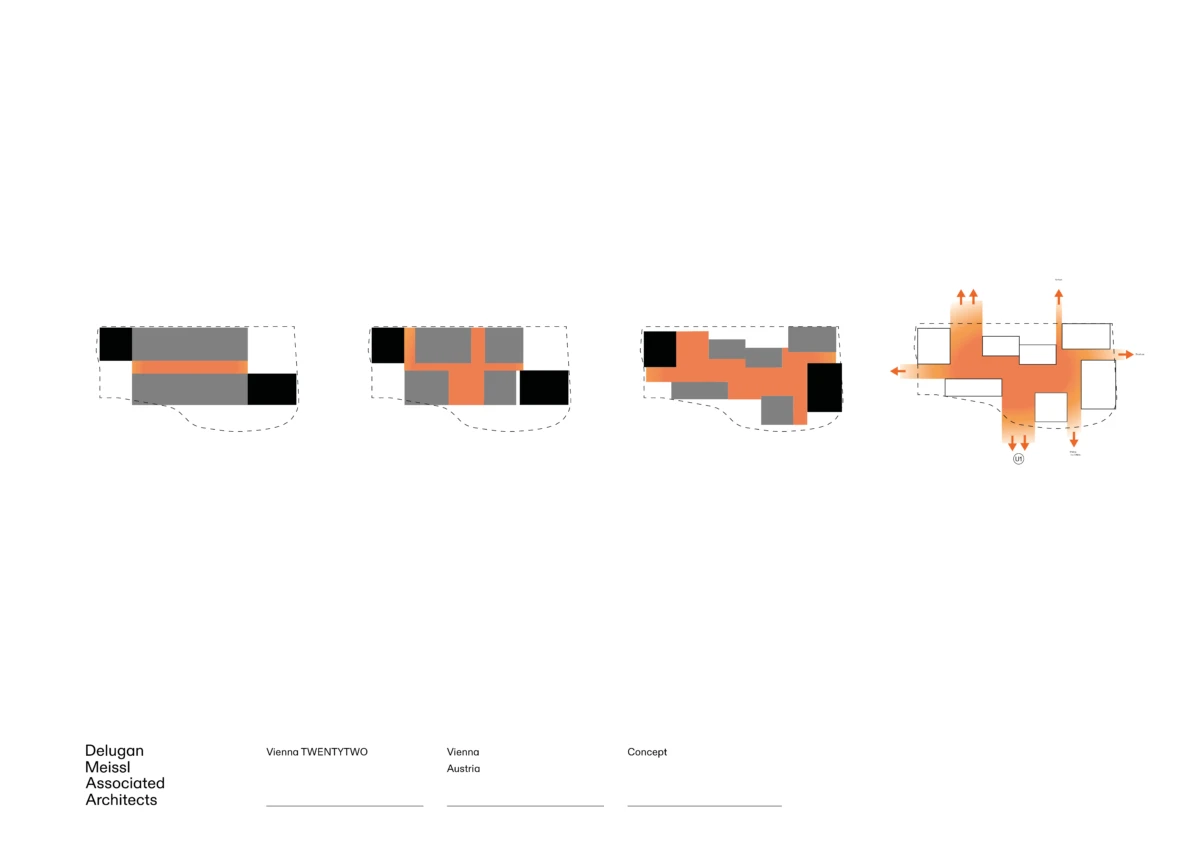

Diagram

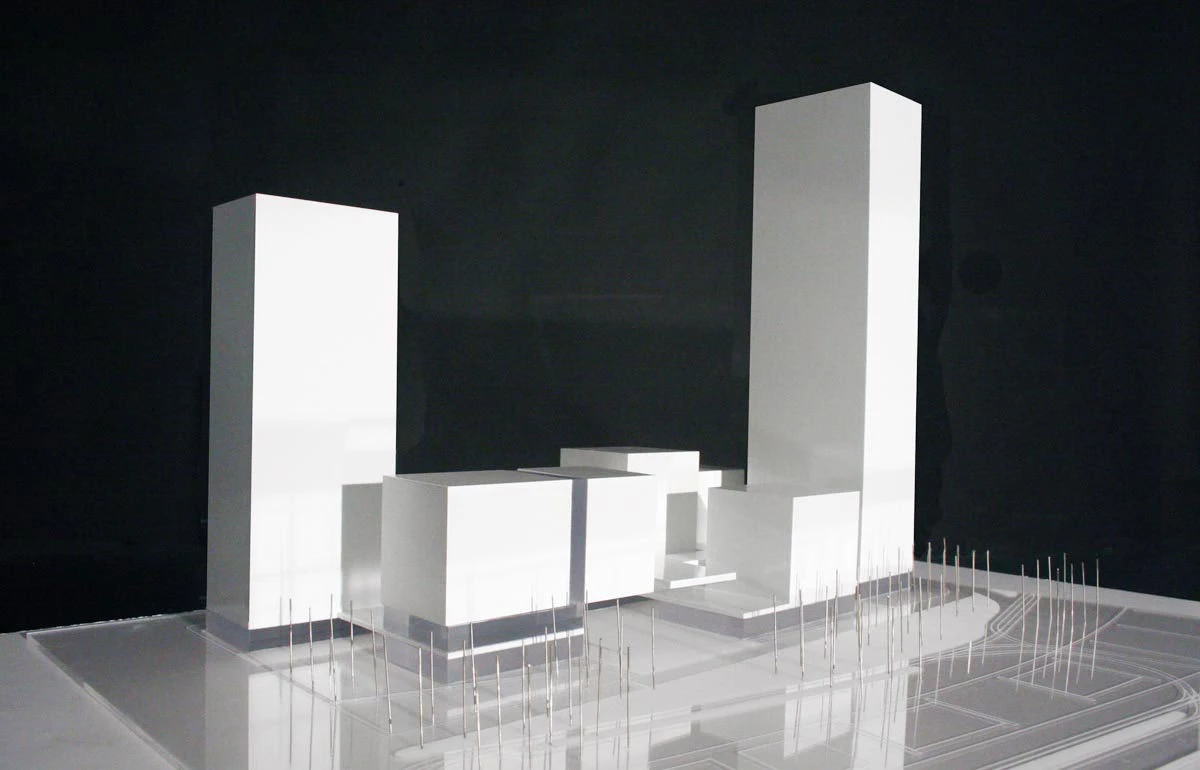

Competition model

© k18
